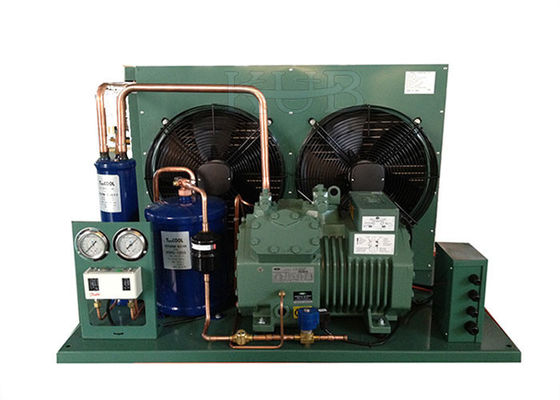

15HP Air Cooled Condensing Unit Semi Hermetic Advanced Technology 380V Voltage 480KG

15HP Air Cooled Condensing Unit Semi Hermetic Advanced Technology 380V Voltage 480KG

    • 15HP Air Cooled Condensing Unit Semi Hermetic Advanced Technology 380V Voltage  480KG
    • 15HP Air Cooled Condensing Unit Semi Hermetic Advanced Technology 380V Voltage  480KG
    • 15HP Air Cooled Condensing Unit Semi Hermetic Advanced Technology 380V Voltage  480KG
    • 15HP Air Cooled Condensing Unit Semi Hermetic Advanced Technology 380V Voltage  480KG
    • 15HP Air Cooled Condensing Unit Semi Hermetic Advanced Technology 380V Voltage  480KG
  • 15HP Air Cooled Condensing Unit Semi Hermetic Advanced Technology 380V Voltage  480KG

    Product Details:

    Place of Origin: Shanghai China
    Brand Name: KUB
    Certification: CE
    Model Number: BFCA -1500

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: Plywood pallet+Plywood
    Supply Ability: 50 units per month
    Contact Now
    Detailed Product Description
    Refrigerant: R404A/R22 Voltage: 380V/3PH/50hz
    Horsepower: 15HP Compressor Type: Semi-hermetic Compressor
    Fans: 4 Warranty: 1 Year
    Size: 1050*800*1280mm Weight: 480KG

    BFCA -1500 15HP BFS151 R22 R404A Cold storage Cold room coldroom Semi-hermetic compressor  Air Cooled Condensing Unit


    Moel BFCA -1500
    Brand  KUB
    cold room  110m3 -18degree
    Weight 480KG




    Model Voltage capacity Air cooled condenser Connector Dimension

    Condenser
    Surface
    M2

    Air flow (m3/h)

    Dia.
    (Φmm)

    Fan power (w) inlet (mm) outlet (mm) L W H
    BFS31 CA-0300

    380V

    3Ph

    50Hz

    5670 22 3000 400 190 22 12 700 600 580
    BFS41 CA-0400 8350 33 3000 400 2*190 22 12 1050 710 580
    BFS51 CA-0500 9640 49 5000 400 2*190 22 12 1050 710 680
    BFS81 CA-0800 17500 80 6000 400 4*190 28 16 1050 800 980

    BFS101
    CA-1000

    19190 100 10000 400 4*190 28 16 1050 800 1280

    BFS151
    CA-1500

    27700 130 14000 450 4*190 35 22 1050 800 1280
    4YG20 32300 150 14000 450 4*250 42 22 1250 800 1280
    4S251G V type 42250 200 14000 500 3*420 54 22 2120 1100 1680
    4S301G V type 48500 270 20000 550 3*550 54 22 2300 1100 1680
    6S351G V type 63400 300 27000 600 3*800 54 28 2450 1100 1680
    6S401G V type 72800 350 36000 550 4*550 54 28
    6S501G Vtype 86300 410 45000 600 4*800 54 35
    Packaging & Shipping


    The company has advanced information network technology and excellent location, a sound management system and modern means of communication and multi-faceted services. We insist on everything from the actual needs of customers, the implementation of the entire transport monitoring service is available 24 hours a day. These are the goods on time, safe, efficient destination to provide effective protection.

    Our Services


    A. Individuation & Customization
    Refrigeration industry, cold storage engineering; Agriculture, food, restaurant, chemical industry; we can undertake designs according to customer's requirements.

    B. Excellent warranty
    KUB provides up to one year warranty period. If there is any product quality problems, we will return processing, and is responsible in the end.
    We provide excellent service to solve your worries.

    Company Information


    Introduction
    Shanghai KUB Refrigeration Equipment Co., Ltd
    is an advanced enterprise specializing in design, manufacture and trade of refrigeration equipment. Founded in 2000
    We have adopted internationally advanced technology to meet all the different needs of our diverse customers. Main products include: box type & open type condensing units, air cooled , water cooled condensing units, mono block
    split type condensing units, low temperature screw condensing units, compressor racks, industrial chillers, D-series air coolers, double side blowing air coolers, water defrosting air coolers,
    air cooled condenser, tube-shell water cooled condensers, tube-shell evaporator and electrical control boxes, etc. All of our units adopt world famous brand compressors such as KUB, Carrier, Carlyle
    , Bitzer, Copeland, Emerson,Maneurop, Tecumseh,danfoss etc.,
    with excellent performance a beautiful appearance. They are widely used in cold storage, hotels, industrial processes, medical industries, chemical industries, refrigerated trucks, vessel industries all other places where cold storage is needed.
    Our products and solutions have been widely applied in the fast-growing Chinese market, providing tens of thousands of industrial equipment in machinery, electronics, plastics, textile, food, medical, chemical industry and renewable energy and related fields. KUB is widely recognized and respected by manufacturers,technicians and end users in the industry. We export our products all over the world to countries in locations such as Europe, Middle East, Southeast Asia, Africa, etc. and we support our customers with high quality products and turnkey solutions.
