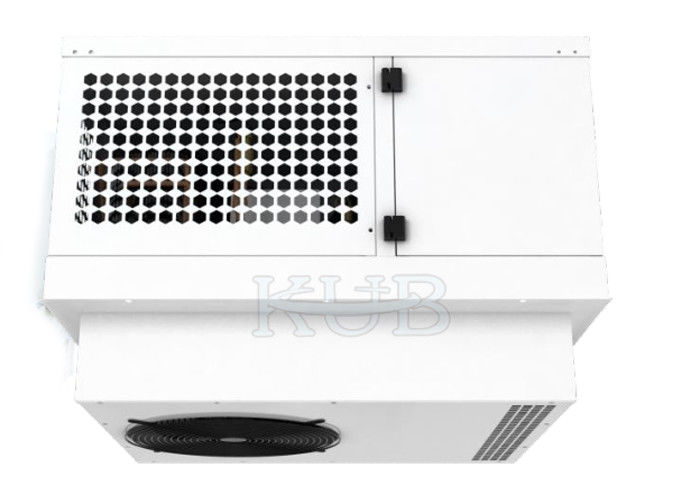

Condensing Unit Top Insert Integrated air-cooled unit 3HP 4HP 5HP 380v freezer condenser unit hermetic condensing unit
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Refrigerant | R404A | Voltage | 380V/3PH/50hz |
|---|---|---|---|
| Horsepower | 3HP /4HP /5HP | Temperature | Low Temperature |
| Fans | 1 | Compressor | Hermetic Piston Compressor |
| Warranty | 1 Year | ||
| Highlight | freezer condenser unit,commercial condensing unit |
||
Product Description

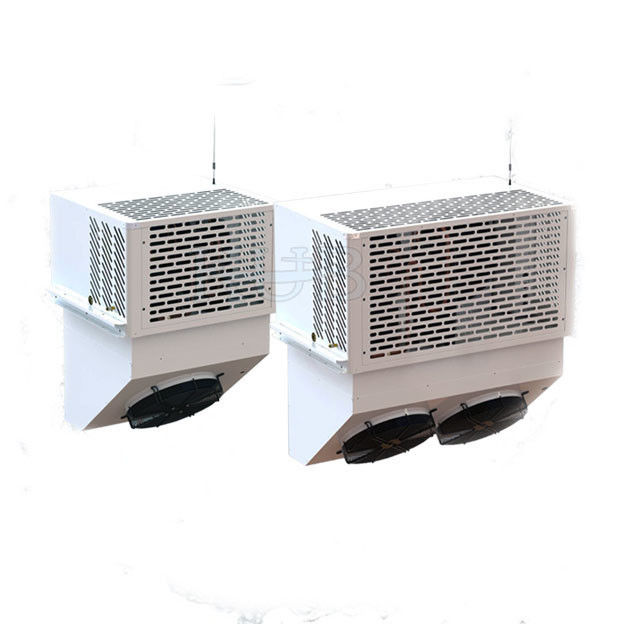

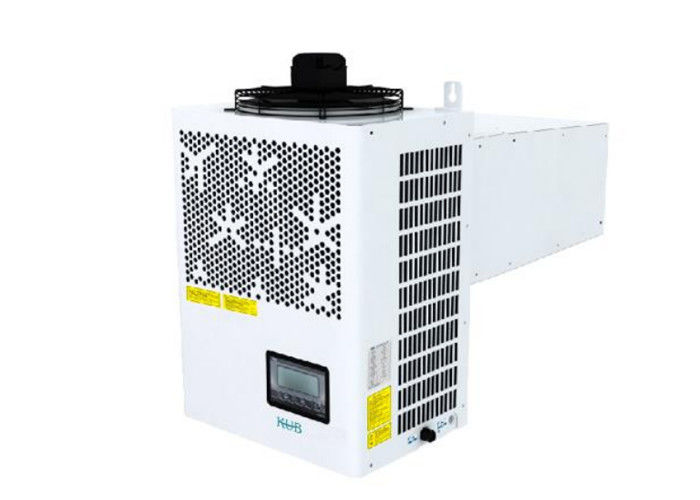

Cold Storage Small Condensing Unit Top Insert Integrated 3HP 4HP 5HP 380v freezer condenser unit Long Lifespan
| Name | Refrigerant | Voltage | |
| Top-roof monoblock condensing unit | R404A | 380v 50hz 3ph |
Product Description
| Model | Type | Specifications | Condensation temperature ( ℃) |
Evaporation temperature ( ℃) | |||||
| -10 | -5 | 0 | 5 | ||||||
| OLTM048T | Roof-top Side insert |
Compressor | 1/2HP | Cooling capacity (Watt) |
37.8 | - | 1049 | 1371 | 1758 |
| Voltage | 380V/3/50 | 43.3 | - | 999 | 1241 | 1612 | |||
| Condensation Air volume |
1650m³/h | 48.9 | - | 864 | 1134 | 1436 | |||
| Evaporating Air volume |
1650m³/h | Input power (Watt) |
37.3 | - | 0.46 | 0.49 | 0.53 | ||
| Motor Power | 0.22kw | 43.3 | - | 0.48 | 0.52 | 0.55 | |||
| 48.9 | - | 0.51 | 0.54 | 0.59 | |||||
| OLTM100T | Roof-top Side insert |
Compressor | 1HP | Cooling capacity (Watt) |
37.8 | 1437 | 1746 | 2086 | 2959 |
| Voltage | 380V/3/50 | 43.3 | 1250 | 1535 | 1840 | 2690 | |||
| Condensation Air volume |
1650m³/h | 48.9 | 1125 | 1362 | 1623 | 2429 | |||
| Evaporating Air volume |
1650m³/h | Input power (Watt) |
37.3 | 3.7 | 3.8 | 3.9 | 4.2 | ||
| Motor Power | 0.22kw | 43.3 | 3.8 | 3.9 | 4 | 4.3 | |||
| 48.9 | 3.9 | 4 | 4.1 | 4.4 | |||||
| OLTM150T | Roof-top Side insert |
Compressor | 1.5HP | Cooling capacity(Watt) | 37.8 | 2628 | 3633 | 4864 | 6358 |
| Voltage | 380V/3/50 | 43.3 | 2244 | 3194 | 4366 | 5772 | |||
| Condensation Air volume |
2600m³/h | 48.9 | 1907 | 2792 | 3897 | 5215 | |||
| Evaporating Air volume |
2600m³/h | Input power (Watt) |
37.3 | 2.3 | 2.5 | 2.6 | 2.7 | ||
| Motor Power | 0.27Kw | 43.3 | 2.4 | 2.6 | 2.6 | 2.9 | |||
| 48.9 | 2.4 | 2.6 | 2.8 | 3 | |||||
| OLTM200T | Roof-top Side insert |
Compressor | 2HP | Cooling capacity(Watt) | 30 | 3800 | 4600 | 5500 | 6600 |
| Voltage | 380V/3/50 | 40 | 3500 | 4200 | 5100 | 6000 | |||
| Condensation Air volume |
2600m³/h | 50 | - | 3800 | 4500 | 5400 | |||
| Evaporating Air volume |
2600m³/h | Input power (Watt) |
30 | 1.1 | 1.1 | 1.1 | 1.2 | ||
| Motor Power | 0.27Kw | 40 | 1.4 | 1.4 | 1.4 | 1.4 | |||
| 50 | - | 1.7 | 1.7 | 1.7 | |||||
| OLTM300T | Roof-top Side insert |
Compressor | 3HP | Cooling capacity(Watt) | 30 | 5300 | 6400 | 7600 | 9000 |
| Voltage | 380V/3/50 | 40 | 4800 | 5800 | 6900 | 8200 | |||
| Condensation Air volume |
5500m³/h | 50 | - | 5200 | 6200 | 7400 | |||
| Evaporating Air volume |
5500m³/h | Input power (Watt) |
30 | 1.5 | 1.5 | 1.5 | 1.6 | ||
| Motor Power | 0.85kw | 40 | 1.8 | 1.9 | 1.9 | 1.9 | |||
| 50 | - | 2.3 | 2.3 | 2.3 | |||||
| OLTM400T | Side insert | Compressor | 5HP | Cooling capacity(Watt) | 30 | 7900 | 9700 | 11600 | 13800 |
| Voltage | 380V/3/50 | 40 | 7200 | 8800 | 10700 | 12700 | |||
| Condensation Air volume |
5500m³/h | 50 | - | 7900 | 9600 | 11500 | |||
| Evaporating Air volume |
5500m³/h | Input power (Watt) |
30 | 2.2 | 2.3 | 2.3 | 2.4 | ||
| Motor Power | 0.85kw | 40 | 2.7 | 2.7 | 2.8 | 2.4 | |||
| 50 | - | 3.3 | 3.4 | 3.4 | |||||
| OLTM500T | Side insert | Compressor | 5HP | Cooling capacity(Watt) | 30 | 9200 | 11300 | 13700 | 16300 |
| Voltage | 380V/3/50 | 40 | 8500 | 10400 | 12600 | 14900 | |||
| Condensation Air volume |
5500m³/h | 50 | - | 9400 | 11400 | 13600 | |||
| Evaporating Air volume |
5500m³/h | Input power (Watt) |
30 | 2.6 | 2.7 | 2.8 | 2.8 | ||
| Motor Power | 0.85kw | 40 | 3.1 | 3.2 | 3.3 | 3.4 | |||
| 50 | - | 3.9 | 4 | 4 | |||||
| Model | Type | Specifications | Condensation temperature ( ℃) |
Evaporation temperature ( ℃) | |||||
| -23 | -18 | -12 | -6 | ||||||
| OLTL100T | Roof-top Side insert |
Compressor | 1HP | Cooling capacity (Watt) |
37.8 | 1368 | 1791 | 2368 | 3031 |
| Voltage | 380V/3/50 | 43.3 | 1565 | 2112 | 2665 | 3444 | |||
| Condensation Air volume |
1650m³/h | 48.9 | 1337 | 1827 | 2368 | 3043 | |||
| Evaporating Air volume |
1650m³/h | Input power (Watt) |
37.3 | 852 | 959 | 1067 | 1161 | ||
| Motor Power | 0.22kw | 43.3 | 965 | 1080 | 1193 | 1269 | |||
| 48.9 | 972 | 1094 | 1224 | 1323 | |||||
| OLTL200T | Roof-top Side insert |
Compressor | 2HP | Cooling capacity (Watt) |
30 | 2300 | 2900 | 3500 | 5200 |
| Voltage | 380V/3/50 | 40 | 1900 | 2400 | 3000 | 4400 | |||
| Condensation Air volume |
2600m³/h | 50 | - | 1800 | 2400 | 3600 | |||
| Evaporating Air volume |
2600m³/h | Input power (Watt) |
30 | 1214 | 1232 | 1210 | 1209 | ||
| Motor Power | 0.27Kw | 40 | 1624 | 1602 | 1621 | 1536 | |||
| 50 | - | 2106 | 2040 | 1917 | |||||
| OLTL300T | Roof-top Side insert |
Compressor | 3HP | Cooling capacity(Watt) | 30 | 3200 | 4000 | 4900 | 7100 |
| Voltage | 380V/3/50 | 40 | 2800 | 3500 | 4300 | 6200 | |||
| Condensation Air volume |
5500m³/h | 50 | - | 2900 | 3500 | 5100 | |||
| Evaporating Air volume |
5500m³/h | Input power (Watt) |
30 | 1618 | 1642 | 1613 | 1612 | ||
| Motor Power | 0.85Kw | 40 | 2079 | 2051 | 2075 | 1966 | |||
| 50 | - | 2527 | 2448 | 2300 | |||||
| OLTL400T | Side insert | Compressor | 4HP | Cooling capacity (Watt) |
30 | 4900 | 6000 | 7300 | 10700 |
| Voltage | 380V/3/50 | 40 | 4200 | 5300 | 6400 | 9300 | |||
| Condensation Air volume |
5500m³/h | 50 | - | 4300 | 5300 | 7700 | |||
| Evaporating Air volume |
5500m³/h | Input power (Watt) |
30 | 2346 | 2381 | 2339 | 2337 | ||
| Motor Power | 0.85Kw | 40 | 3014 | 2973 | 3009 | 2851 | |||
| 50 | - | 3740 | 3623 | 3405 | |||||
| OLTL500T | Side insert | Compressor | 5HP | Cooling capacity (Watt) |
30 | 5800 | 7200 | 8800 | 12800 |
| Voltage | 380V/3/50 | 40 | 5000 | 6200 | 7600 | 11100 | |||
| Condensation Air volume |
5500m³/h | 50 | - | 5100 | 6300 | 9200 | |||
| Evaporating Air volume |
5500m³/h | Input power (Watt) |
30 | 2810 | 2813 | 2841 | 2908 | ||
| Motor Power | 0.85Kw | 40 | 3609 | 3521 | 3523 | 3612 | |||
| 50 | - | 4509 | 4436 | 4462 | |||||
Temperature |
Volume | Storage capacity |
Horsepower | Model | Temperature | volume | Storage capacity |
Horsepower | Moodel |
| m³ | Ton | HP | OLT | m³ | Ton | HP | OLT | ||
| 5-0℃ | 4-10 | 1-2 | 1 | 100Z | -15--18℃ | 3-5 | 0-1 | 1 | 100L |
| 10-22 | 2-4 | 2 | 200Z | 5-12 | 1-3 | 2 | 200L | ||
| 22-33 | 4-7 | 3 | 300Z | 12-20 | 3-5 | 3 | 300L | ||
| 33-45 | 7-10 | 4 | 400Z | 20-30 | 5-7 | 4 | 400L | ||
| 46-60 | 11-15 | 5 | 500Z | 30-42 | 7-10 | 5 | 500L | ||
Note:
1. Nominal condition: ambient temperature 32 ℃, cold storage temperature -15 ℃.
2. Nominal power of compressor power condition, fan power and control system power total.
Top insert integrated unit Dimensional drawings
Top insert integrated unit installation schematically
Top insert integrated unit, integrated structure, and completed system match in the laboratory, compact, easy to install, simply cold plate processing the required size of the window, you can quickly install, easy maintenance, saving time and labor.
Our Services
A. Individuation & CustomizationRefrigeration industry, cold storage engineering; Agriculture, food, restaurant, chemical industry; we can undertake designs according to customer's requirements.
B. Excellent warranty
KUB provides up to one year warranty period. If there is any product quality problems, we will return processing, and is responsible in the end.
We provide excellent service to solve your worries.
Shanghai KUB Refrigeration Equipment Co., Ltd is an advanced enterprise specializing in design,
manufacture and trade of refrigeration equipment.
Founded in 2000 We have adopted internationally advanced technology to meet all the different needs of our
diverse customers.
Main products include: box type & open type condensing units,air cooled,water cooled condensing units,
mono block split type condensing units, low temperature screw condensing units,compressor racks, industrial chillers,D-series air coolers,double side blowing air coolers,water defrosting air coolers, air cooled condenser,
tube-shell water cooled condensers, tube-shell evaporator and electrical control boxes,etc.
All of our units adopt world famous brand compressors such as KUB,Carrier,Carlyle , Copeland,
Emerson,Maneurop,Tecumseh,danfoss etc.,with excellent performance a beautiful appearance.
They are widely used in cold storage, hotels,industrial processes,medical industries, chemical industries,refrigerated trucks,vessel industries all other places where cold storage is needed.
Our products and solutions have been widely applied in the fast-growing Chinese market,providing tens of
thousands of industrial equipment in machinery,electronics,plastics, textile, food,medical,chemical industry andrenewable energy and related fields.
KUB is widely recognized and respected by manufacturers,technicians and end users in the industry.
We export our products all over the world to countries in locations such as Europe,Middle East,Southeast
Asia, Africa,etc. and we support our customers with high quality products and turnkey solutions.
Packaging & Shipping
Cold storage refrigeration condensing air-cooled unit :
The company has advanced information network technology and excellent location, a sound management system and modern means of communication and multi-faceted services. We insist on everything from the actual needs of customers, the implementation of the entire transport monitoring service is available 24 hours a day. These are the goods on time, safe, efficient destination to provide effective protection.
