Product Description

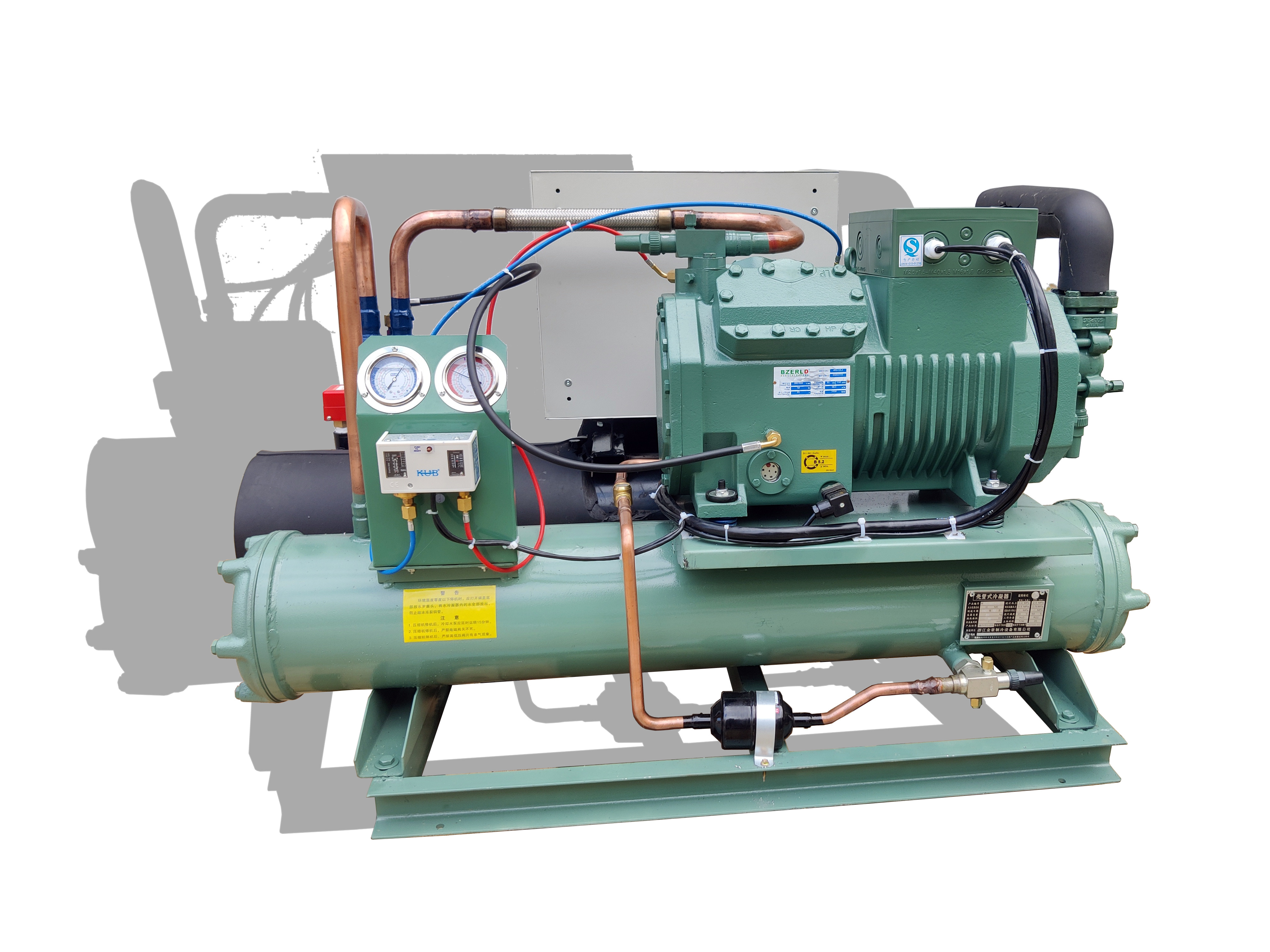

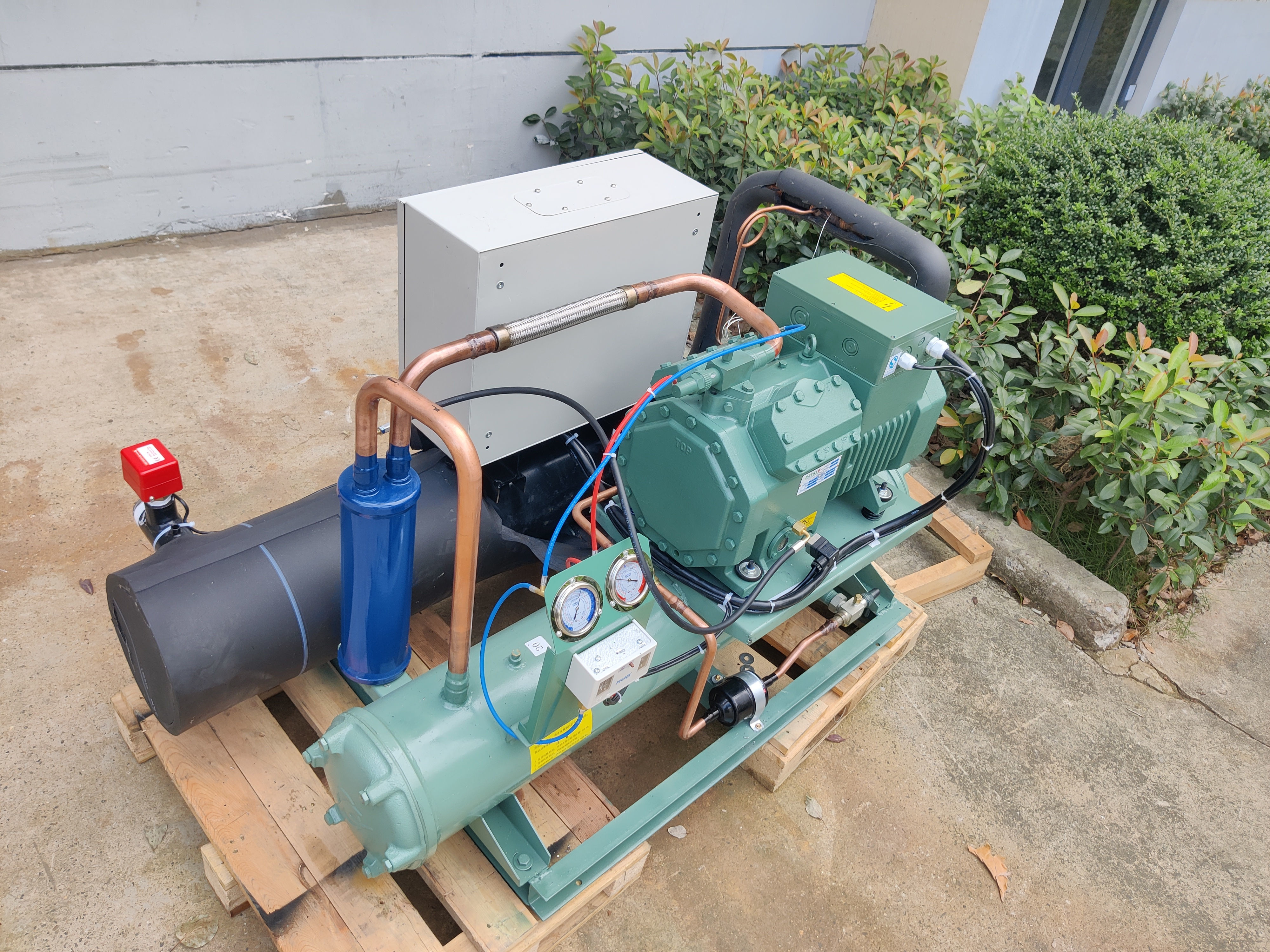

4YG15.2 380V 50HZ Customized cold water refrigeration equipment Water cooled condenser equipment

Water cooled condenser equipment description

Water-cooled condenser equipment is a cooling system that is commonly used in heating, ventilation, and air conditioning systems for large commercial and industrial buildings. It is designed to remove heat from the refrigerant in the HVAC system and transfer it to a water source, such as a cooling tower or a body of water.

Refrigerant Compatibility: Water-cooled condenser equipment can be designed to work with a variety of refrigerants, including R-22, R-134a, and R-410a. The equipment should be selected based on the specific refrigerant used in the HVAC system.
Capacity: Water-cooled condenser equipment is available in a range of sizes and capacities to suit different applications. The capacity of the equipment should be selected based on the size of the building and the cooling load requirements.

Individual compressor parameters

Compressor Model		4YD-8. 2	4YG-12.2	4YD-10.2	4YG-15.2	4YD-12.2	4YG-20. 2
Nominal power HP/KW		8/5.5	12/8.8	10/7.5	15/10.5	12/8.8	20/15
Displacement m³/h 50Hz		41.3	41.3	48.5	48.5	56.2	56.2
Number of cylinders×diameter×stroke		4×ф60×42	4×ф60×42	4×ф65×42	4×ф65×42	4×ф70×42	4×ф70×42
Suction and exhaust valve connectionmm/IN	DL	ф28	ф28	ф28	ф28	ф28	ф28
Suction and exhaust valve connectionmm/IN	SL	ф35	ф35	ф35	ф35	ф35	ф42
Oil injection volume L		2.6	2.6	2.6	2.6	2.6	2.6
Power supply V/ф/Hz		380/420 YY/3/50 440-480 YY/3/60
Electrical parameters	Maximum working current(A)	17	24	21	31	24	37
Electrical parameters	Starting/stall current (A)	49/81	69/113	59/99	81/132	69/113	97/158
crankcase heater(220V)W		120	140	140	140	140	140
Fuel supply method		离心润滑
Weight (including refrigeration oil)Kg		134	141	139	147	141	150

Customized Cold Water Cooled Condenser Equipment 0

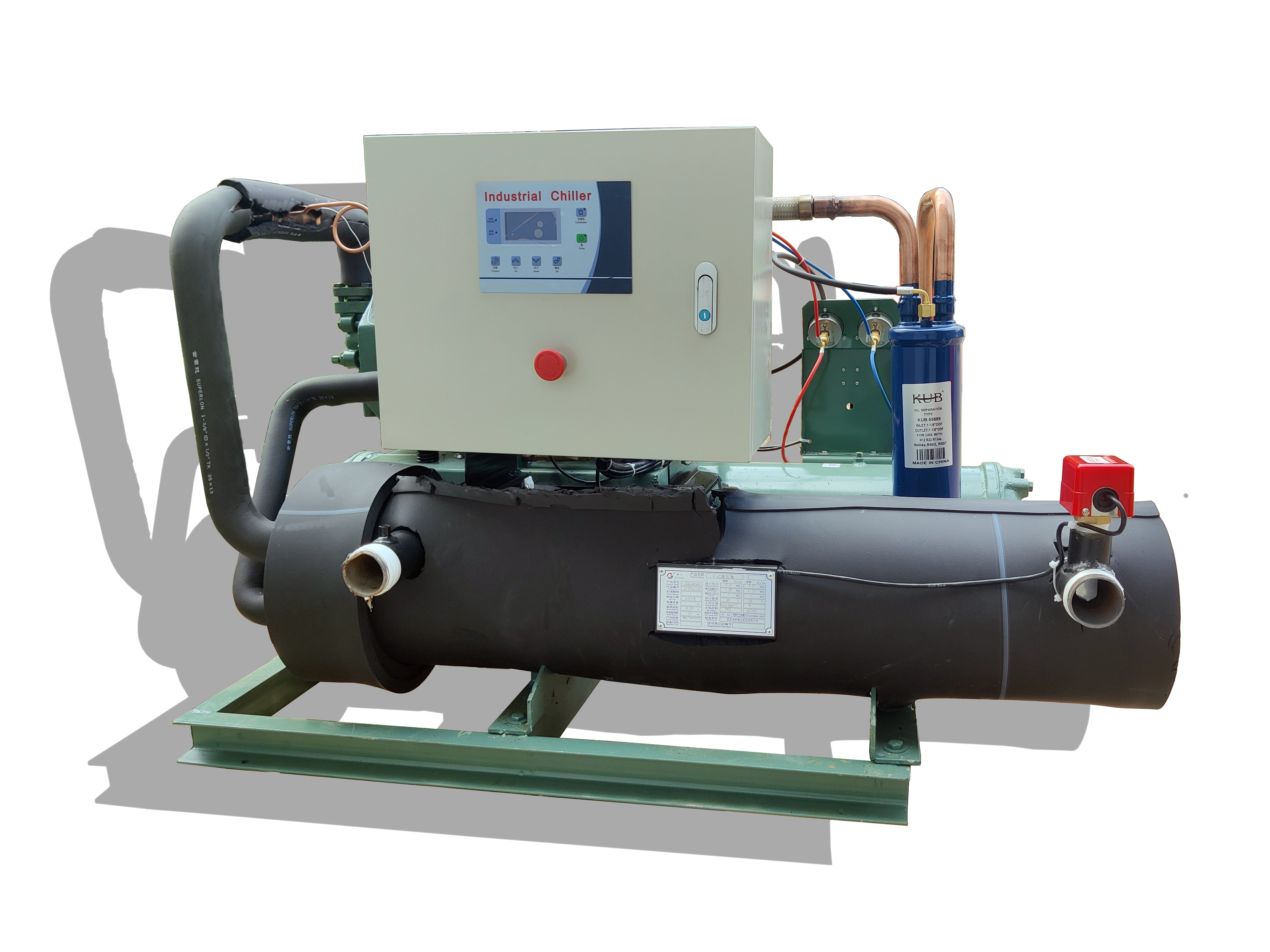

4,Semi-hermetic water-cooled chiller
The following calibration conditions:chilled water inlet temperature 12 ° C, outlet water temperature 7 ° C, cooling water inlet water temperature 30 ° C, outlet water temperature 35 ° C;
Model			LSB-
			15WH	20WH	25WH	30WH	50WH	35WH	40WH	50WH
Cooling Capacity		KW	46.8	54.2	68.9	79.1	139.8	103.5	118.6	139.8
Power supply			3P-380V-50Hz
Machine Power		KW	10.29	12.63	15.82	18.68	35.2	23.7	28	35.2
Machine current		A	18	21.9	27.2	32.5	66.9	41.8	50.3	66.9
Compressor	type		Semi-hermetic piston compressor
	Input power	KW	shell and tube high efficiency heat exchanger
Condensor	type		DN50			DN65
	Input power	KW	9.8	11.5	14.6	16.8	30.1	21.9	25.2	30.1
Evaporator	type		Dry shell and tube y heat exchanger
	Water Connections		DN50			DN65
	Rated flow	m³/h	8.0	9.3	11.9	13.6	24.0	17.8	20.4	24.0
Refrigerant			R22
Dimension	L	mm	1600	1900	1900	1900	2300	2150	2150	2300
	W	mm	850	900	900	900	1100	1000	1000	1100
	H	mm	1050	1100	1100	1100	1300	1200	1200	1300

The following calibration conditions: ethylene glycol inlet temperature -11°C, outlet water temperature -15°C, cooling water inlet temperature 30°C;
Model			LSB-
			15WL		20WL		25WL		30WL	40WL
Cooling Capacity		KW	23.0		26.5		34.5		39.8	47.5
Power supply			3P-380V-50Hz
Machine Power		KW	11.2		13.1		16.8		21.9	24.3
Machine current		A	19.2		22.5		28.6		37.1	45.5
Compressor	type		Semi-hermetic piston compressor
	Input power	KW	Horizontal shell and tube heat exchanger
Condensor	type		DN50						DN65
	Input power	KW	5.9		6.8		8.8		12.8	12.3
Evaporator	type		Dry shell and tube heat exchanger
	Water Connections		DN50						DN65
	Rated flow	m³/h	5.8		6.6		8.7		13.2	11.9
Refrigerant			R22
Dimension	L	mm	1600		1900		1900		1900	2150
	W	mm	850		900		900		900	1000
	H	mm	1050		1100		1100		1100	1200
