MT160/FH120M Made in China MT160 compressor refrigeration unit cooler condensing unit freezer condensing units

  • MT160/FH120M Made in China MT160 compressor refrigeration unit cooler condensing unit freezer condensing units
  • MT160/FH120M Made in China MT160 compressor refrigeration unit cooler condensing unit freezer condensing units
Place of Origin China
Brand Name famous
Certification CE
Model Number MT160/FH120M
Minimum Order Quantity 1 set
Price 1 - 9 sets $2,450.00 >= 10 sets $2,330.00
Packaging Details The wooden packaging
Delivery Time Quantity(sets) 1 - 1 2 - 10 >10 Lead time (days) 20 25 To be negotiated
Payment Terms T/T, L/C, Western Union
Supply Ability 1000 Set/Sets per Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model Number MT160/FH120M Power 10125W
Weight 400KG After-sales Service Provided Online Support
Compressor Type Hermetic Compressors Usage Cold Room Refrigeration
Condition NEW Voltage 380V 50HZ, 380V 50HZ 3PH
Key Selling Points Sustainable, Easy To Operate, Competitive Price, Lon Cooling Capacity Low Temperature
Refrigerant R22, Horse Power 13.5HP
Key Words Refrigeration Unit
Leave a Message
Product Description
Overview

Essential details
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company, Plastic Industry, Other industries, Nut Industry, Beverage Factory, Supermarkets, Construction works?, Coffee Industry, Metalworking Factory, Marine, Other
Condition:
New
Place of Origin:
Shanghai, China
Model Number:
MT160/FH120M
Voltage:
380V 50HZ, 380V 50HZ 3PH
Power:
10125W
Dimension(L*W*H):
1010*810*1280
Weight:
400KG
Year:
2023
Warranty:
1 Year
Key Selling Points:
Sustainable, Easy to Operate, Competitive Price, Long Service Life, Energy saving, Low Maintenance Cost
Compressor brand:
Famous
Cooling Capacity:
Low temperature
Video outgoing-inspection:
Provided
Warranty of core components:
1 Year
Core Components:
Compressor
Refrigerant:
R22, R22
After-sales Service Provided:
Online support
Compressor:
piston compressor
Product name:
cold room condensing unit
Compressor type:
Hermetic Compressors
Horse power:
13.5HP
Condenser type:
air cooler
Key words:
refrigeration unit
Usage:
Cold Room Refrigeration
Supply Ability
Supply Ability
1000 Set/Sets per Year
Packaging & delivery
Packaging Details
The wooden packaging
Port
shanghai
Lead time:
Quantity(sets) 1 - 1 2 - 10 >10
Lead time (days) 20 25 To be negotiated
Picture Description

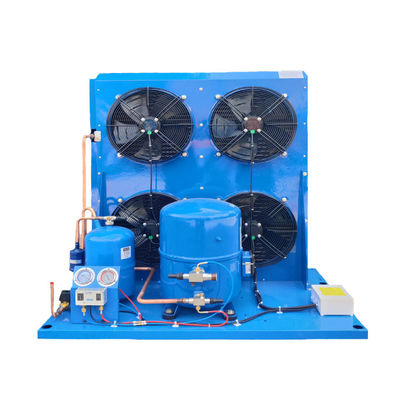

MT160/FH120M Made in China MT160 compressor refrigeration unit cooler condensing unit freezer condensing units 0
The core of the whole refrigeration unit is the compressor, and the choice of the compressor also determines whether the whole refrigeration unit is used for high temperature or low temperature. The compressor of this refrigeration unit adopts You Mei Le brand, model MT160, refrigerant R22, which is suitable for cold storage with the temperature of minus 18 degrees to zero degrees. Followed by the condenser. Our 13-horse unit is equipped with a 120-square air-cooled condenser. Its function is to cool the superheated steam at high temperature and high pressure discharged by the compressor into liquid or gas mixture, and then use the liquid low-temperature refrigerant to evaporate easily at low pressure through the evaporator, convert it into steam and absorb the heat of the cooled medium, so as to achieve the purpose of refrigeration. In addition, we lead all the wires in all the equipment into the junction box, and there is an interface at the other end of the unit, which is convenient for customers to wire themselves, which is also the advantage of the open unit. The following are the exhibition drawings of various parts (pressure gauge, pressure control, junction box, mirror, filter, reservoir, bottom plate, solenoid valve, etc.). If you are interested in the functions of parts, please leave us a message in the comment area
00:12

00:43

MT160/FH120M Made in China MT160 compressor refrigeration unit cooler condensing unit freezer condensing units


configuration list		 MT160/FH120M
Model Quantity
Compressor MT160 1
Air cooler condenser 120m² 1
Condenser fan 400mm 4
reservoir 40L 1
Filter drier (KUB)   1
Solenoid valve 16mm 1
Pressure controller P830E 1
High pressure gauge   1
low pressure gauge   1
Oil gauge   1
Junction Box   1



MT160/FH120M Made in China MT160 compressor refrigeration unit cooler condensing unit freezer condensing units 1MT160/FH120M Made in China MT160 compressor refrigeration unit cooler condensing unit freezer condensing units 2MT160/FH120M Made in China MT160 compressor refrigeration unit cooler condensing unit freezer condensing units 3MT160/FH120M Made in China MT160 compressor refrigeration unit cooler condensing unit freezer condensing units 4MT160/FH120M Made in China MT160 compressor refrigeration unit cooler condensing unit freezer condensing units 5MT160/FH120M Made in China MT160 compressor refrigeration unit cooler condensing unit freezer condensing units 6MT160/FH120M Made in China MT160 compressor refrigeration unit cooler condensing unit freezer condensing units 7MT160/FH120M Made in China MT160 compressor refrigeration unit cooler condensing unit freezer condensing units 8MT160/FH120M Made in China MT160 compressor refrigeration unit cooler condensing unit freezer condensing units 9MT160/FH120M Made in China MT160 compressor refrigeration unit cooler condensing unit freezer condensing units 10MT160/FH120M Made in China MT160 compressor refrigeration unit cooler condensing unit freezer condensing units 11MT160/FH120M Made in China MT160 compressor refrigeration unit cooler condensing unit freezer condensing units 12MT160/FH120M Made in China MT160 compressor refrigeration unit cooler condensing unit freezer condensing units 13MT160/FH120M Made in China MT160 compressor refrigeration unit cooler condensing unit freezer condensing units 14MT160/FH120M Made in China MT160 compressor refrigeration unit cooler condensing unit freezer condensing units 15MT160/FH120M Made in China MT160 compressor refrigeration unit cooler condensing unit freezer condensing units 16
