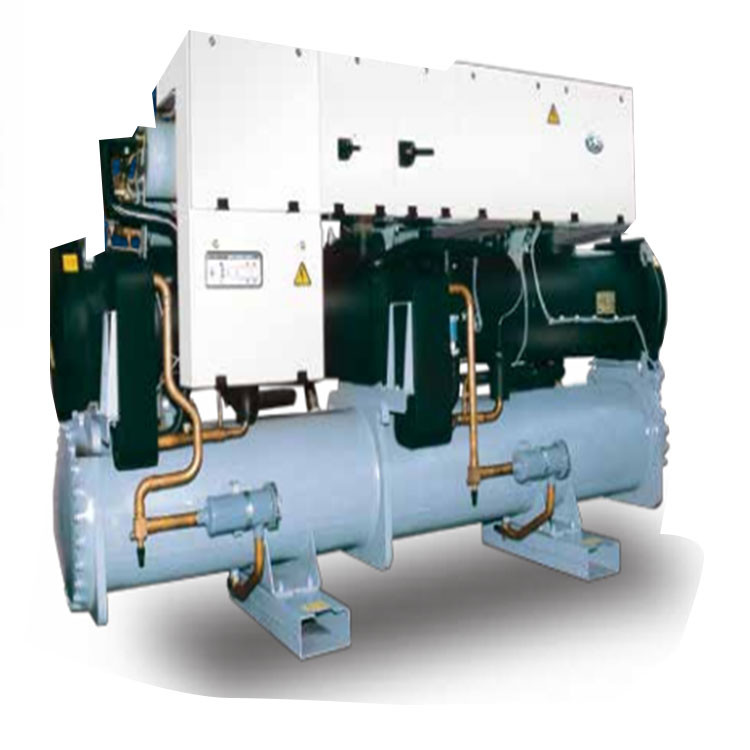

Carrier 30hxy/Hxc Screw Chiller Commercial Refrigeration Condensing Units

Place of Origin USA
Brand Name Famous
Certification CE
Model Number 30HXY/HXC
Minimum Order Quantity 1 (pieces)
Price USD 32000 (1-9) pieces USD 31700 >= 10 pieces
Packaging Details wooden crate
Delivery Time 30 work days
Payment Terms T/T, L/C
Supply Ability 10000 Piece/Pieces per Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Compressor,condensing Unit,Cooler After-sales Service Provided Engineers Available To Service Machinery Overseas,Online Support
Refrigerant R404a,R22 Or R404A,R22 Voltage 380V/3Ph/50Hz
Product Name R22 Compressor Unit,Professional Manufacturer Supply Refrigeration Evaporative Condenser,Copeland Compressor Condensing Unit Application Cold Storage Room Freezer Room,Food Processing Room
Warranty 1 Year Color White Or Black
Temperature +15~-55℃ (+60~-70)F Name Carrier 30HXY/HXC Screw Chiller
Power Supply 380V50Hz
Leave a Message
Product Description

Nowadays, there are many hotels, baths, office buildings, schools, hospitals and factories. At the same time, there are air-conditioning centralized cooling and domestic hot water supply. Carrier launched 30HXC total heat recovery screw unit, through the discharge of water chillers into the atmosphere The condensed heat is recovered to make hot water, which makes the energy of central air conditioning effective. Using, the energy consumption of users is greatly reduced, the economic benefit is effectively improved, and at the same time, it can be reduced. Environmental pollution caused by condensation heat. 30HXC total heat recovery screw unit is energy-saving. New choice of environmental protection air conditioning system.

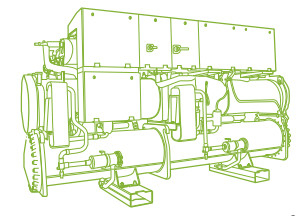

Working principle of Carrier 30HXC full heat recovery screw chiller Carrier 30HXC full heat recovery screw chiller adopts single-cylinder double-loop condenser. Structural design, by adding a heat recovery loop to recover all condensation heat. As shown in the figure The unit with heat recovery option is shown. There is hot water in and out on the condenser. Interface, convenient for users to install and use.



Flowchart of Carrier 30HXC Total Heat Recovery Screw Chiller System When cooling: turn on the cooling water pump and turn off the hot water pump. The unit is in refrigeration priority mode. Run. Heat recovery: turn on the hot water pump and turn off the cooling water pump. The unit can give priority to refrigeration. Mode operation, controlling the outlet water temperature of evaporator; It can also be transported according to the heat recovery priority mode. Ok, control the temperature of hot water.



In winter, there are suitable low-temperature heat sources (such as groundwater, surface water, soil source, medium) Water, etc.) can be used, the low-temperature heat source water can be connected to the evaporator of the unit, through the whole Preparation of high temperature hot water by heat recovery unit. In this case, the total heat recovery unit can be completed. Completely replace the boiler and make hot water all year round.



Carrier 30hxy/Hxc Screw Chiller Commercial Refrigeration Condensing Units 0

Option description



The water chamber interfaces of evaporator and condenser can be reversed respectively.
The standard unit water chamber interface is on the right side of the unit (with the control cabinet as the front), and this option provides the left water chamber interface.
Evaporator and condenser water chamber can provide
1.6MPa/2.1MPa high pressure option.
Cryogenic unit
Outlet temperature range of low-temperature ethylene glycol or salt solution evaporator: -6℃~+4℃
Some models can provide the lowest temperature option of -10℃ to meet the needs of process refrigeration application.
Silent cabinet
The first generation of quiet speakers can reduce the noise of the unit by more than 10dB(A) on average: the installation and disassembly are convenient, which has no influence on the maintenance and management of the unit and has a beautiful appearance (see P3 in this book).

First generation static speaker
model measure(mm) weight(kg)
30HXC050-065E 2505*1150*2100 480
30HXC080E-110E 3105*1150*2100 500
30HXC130E 3575*1192*2143 600
30HXC165E 3315*1192*2143 600
30HXC200E 3575*1192*2143 600
30HXC250E 3724*1221*2212 700
30HXC300E 4224*1221*2212 700
30HXC350E-400E 5800*1300*2300 1000






Unit hoisting
Carrier 30hxy/Hxc Screw Chiller Commercial Refrigeration Condensing Units 1

Note: Each chain hoist must be able to bear the full weight of the machine.
The center of gravity of the unit should be placed on the bearing beam.
It is forbidden to use the lifting lug on the condenser for lifting.



Carrier 30hxy/Hxc Screw Chiller Commercial Refrigeration Condensing Units 2

Note: Each lifting chain must be able to bear the full weight of the machin
The center of gravity of the unit should be placed on the bearing beam.
It is forbidden to use the lifting lug on the condenser for lifting.
(mm)
model X Y Z W L
30H110CH-HR 1348 590 935 2000 1200
30H130CH-HR 1781 603 935 2000 1200
30H165CH-HR 2090 605 906 2000 1200
30H200CH-HR 1615 616 867 2000 1200
30H250CH-HR 1971 576 1035 3500 1200
30H300CH-HR 1971 576 1035 3500 1200
30H350CH-HR 2259 569 808 3500 1200
30H400CH-HR 2259 569 808 3500 1200






Product application advantages

Carrier 30HXC screw chiller is characterized by its chlorine-free (no consumption of ozone layer at all) and high efficiency (less power consumption).

Contribution to greenhouse effect), high reliability, easy maintenance, low operating cost, etc., and it is a hotel, restaurant. The central air conditioning system is the first choice for shops, offices, schools, hospitals, industrial and mining enterprises and many other occasions.

Design for R134a Environmental Leading Refrigerant

R134a has no damage to the ozone layer at all.

R134a products are increasing year by year, and there is no prohibition period.

Energy saving and high efficiency

Adopt new 06N high efficiency screw compressor.

High-efficiency heat transfer tube with Carrier patent

Plate economizer further improves unit efficiency

Multi-compressor design: flexible adjustment according to user's load, better partial load performance.

Electronic expansion valve realizes accurate control, optimizes system operation and improves efficiency.

High Reliability

Double-loop design: the influence of fault shutdown is minimized, which greatly improves the reliability of the unit.

Multi-compressor design: mutual standby function, more reliable system.

Complete protection function makes the unit run without worry.

Each unit leaves the factory after trial operation.

Simple and convenient installation

Users of enclosed motors do not need to install cooling/ventilation devices in the machine room.

The unit structure is compact. The width of all units is less than 1015mm, which is convenient to pass through the standard door and put in place.

The water connection pipe is connected by clamp, which is convenient and quick to install on site.

The unit has been completely filled with refrigerant and lubricating oil before leaving the factory.

The site only needs to connect the water pipe and the main power supply.

Convenient operation and maintenance

Graphical operation interface: the logo is clear at a glance and the operation is simple and convenient.

The on-site maintenance of compressor is convenient.

Low noise (three-stage noise elimination)

Built-in muffler device: reasonable diversion of exhaust airflow, effectively reducing the noise caused by high-pressure exhaust airflow pulsation.

Exhaust muffler: converts part of acoustic energy into heat energy to further reduce the noise of the unit

Silent cabinet: add another sound barrier to the unit to significantly reduce the noise transmitted to the machine room

Microcomputer control system

Microcomputer control system, friendly user interface, clear flow chart display, convenient for guiding operation. Powerful diagnosis, safety guarantee Protection, control and communication functions. PID control is adopted to keep the outlet water temperature of evaporator constant and effectively maintain the stability of unit operation and economy.



Friendly man-machine interface

Advanced control function

 The safety protection function is complete

Advanced unit group control function





R134a has no damage to the ozone layer at all. R134a products are increasing year by year, and there is no prohibition period.
