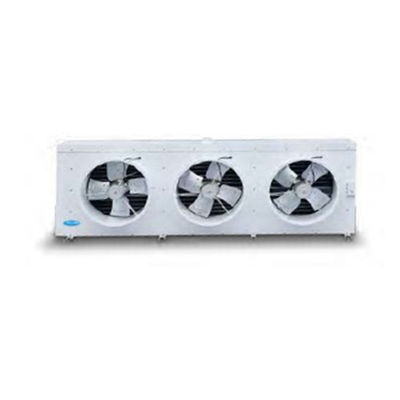

3Ph D Type Evaporator Stainless Steel Marine Cold Room Evaporator

Place of Origin Shanghai, China
Brand Name KUB
Certification CE
Model Number DJ/85
Minimum Order Quantity 1Piece
Price Consult
Packaging Details Carton or wooden box
Delivery Time 15days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Piece/Pieces per Year
Product Details
Condition New Weight (KG) 200
Video Outgoing-inspection Provided Marketing Type Ordinary Product
Core Components Motor Product Type Cold Stroage Room
Product Name Cold Room Evaporator Voltage 380V/3Ph/50Hz
Applicable Industries Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert Showroom Location None
Machinery Test Report Provided Type Cooler
Item Cold Room Air Cooler Refrigerant R22/R134a /R404a
High Light

Cold Storage Room D Type Evaporator

,

3Ph D Type Evaporator

,

Stainless Steel Cold Room Evaporator

Leave a Message
Product Description

DJ/85 380V 50HZ Marine evaporator cold storage evaporator Stainless steel evaporator refrigeration evaporator



3Ph D Type Evaporator Stainless Steel Marine Cold Room Evaporator 0

Technical requirements:
1,Heat sink inner diameter 2400mm , Fin spacing 9mm, DJ85m²
2,Fin tube expanding closely, copper pipe and sheet metal without loose.
3,With 3-φ500 of high ram low temperature resistant motor , power 3 x 550 w, air volume 3 x 6800 m/h.
4,air tightness pressure 2.5 MPa, placed in water for 5 minutes without leakage.
5,Return air pipe φ40 ,Into the liquid pipe φ25, distributor 6 road
6,stainless steel shell, stainless steel duct, stainless steel gears.
7,The power of a single electric heating tube is 2KW, there are 6

   Model

W

Nominal refrigeration volume

Area of cooling

(380V)Air cooler Defrost electric heating tube mm Inlet mm Outlet
W Power m³/h Air volume mm Diameter m Range kw Coll kw Drip Pan
DL-2.1/10 2100 10 80 1563 300 7 0.6 0.6 12 19
DD-1.4/7 1400 7 1×0.6 0.6
DJ-0.8/5 800 5 1×0.6 0.6
DL-3.1/15 3100 15 2×80 2×1563 300 7 0.9 0.9 12 19
DD-2.4/12 2400 12 1×0.9 0.9
DJ-1.3/8 1300 8 1×0.9 0.9
DL-4.1/20 4100 20 2×80 2×1563 300 7 1.3 1.3 12 19
DD-3/15 3000 15 1.3 1.3
DJ-1.8/10 1800 10 1.3 1.3
DL-5.2/25 5200 25 2×140 2×2290 350 7 2×1.2 1.2 12 22
DD-4.4/22 4400 22 2×1.2 1.2
DJ-2.1/15 2100 15 2×1.2 1.2
DL-8.3/40 8300 40 2×180 2×3400 400 9 2×1.4 1.4 16 25
DD-6/30 6000 30 2×1.4 1.4
DJ-4/20 4000 20 2×1.4 1.4
DL-11.5/55 11500 55 2×180 2×3400 400 9 2×1.4 1.4 16 25
DD-8/40 8000 40 2×1.4 1.4
DJ-6/30 6000 30 2×1.4 1.4
DL-16.7/80 16700 80 2×250 2×4800 450 9 2×1.5 1.5 19 38
DD-12/60 12000 60 5×1.5 1.5
DJ-8/40 8000 40 5×1.5 1.5
DL-22/105 22000 105 2×250 2×4800 450 9 2×1.5 1.5 19 38
DD-16/80 16000 80 5×1.5 1.5
DJ-11/15 11000 55 5×1.5 1.5
DL-25.8/125 25800 125 3×250 3×4800 450 9 2×2.1 2.1 19 38
DD-20/100 20000 100 5×2.1 2.1
DJ-14/70 14000 70 5×2.1 2.1
DL-33.6/160 33600 160 3×250 3×4800 450 9 2×2.4 2.4 19 38
DD-24/120 24000 120 5×2.4 2.4
DJ-17/85 17000 85 5×2.4 2.4
DL-38.7/185 38700 185 4×250 4×4800 450 9 2×3 3 25 50
DD-28/140 28000 140 5×3 3
DJ-20/100 20000 100 5×3 3
DL-44/210 44000 210 4×250 4×4800 450 9 2×3.2 3.2 25 50
DD-32/160 32000 160 5×3.2 3.2
DJ-23/115 23000 115 5×3.2 3.2
DL-52.9/260 52900 260 2×780 2×10820 600 12 5×2.7 2.7 25 50
DD-40/200 40000 200 8×2.7 2.7
DJ-28/140 28000 140 8×2.7 2.7
DL-67.2/330 67200 330 3×780 3×10820 600 12 5×3.3 3.3 25 50
DD-50/250 50000 250 8×3.3 3.3
DJ-34/170 34000 170 8×3.3 3.3
DL-85.6/450 85600 450 3×780 3×10820 600 12 5×3.5 3.5 25 50
DD-60/300 60000 300 8×3.5 3.5
DJ-42/210 42000 210 8×3.5 3.5
DLThe nominal cooling capacity of the type air cooler refers to: t room= 0℃, △T=T room -T. =7℃, the fin pitch is 4.5mm.
DDThe nominal cooling capacity of the type air cooler refers to: t room= -18℃, △T=T room -T. =7℃, the fin pitch is 6mm.
DJThe nominal cooling capacity of the type air cooler refers to: t  room= -25℃, △T=T room -T. =7℃, the fin pitch is 9mm.



Model L W H Installation size left margin Center distance Drain pipe (inch)
A B C D宽 E长 F E1 E2 E3
DL-2.1/10 720 310 440 260 530 85 3/4"
DD-1.4/7
DJ-0.8/5
DL-3.1/15 970 310 440 260 780 85 3/4"
DD-2.4/12
DJ-1.3/8
DL-4.1/20 1120 310 440 260 1080 85 3/4"
DD-3/15
DJ-1.8/10
DL-5.2/25 1120 380 440 330 1080 85 3/4"
DD-4.4/22
DJ-2.1/15
DL-8.1/40 1520 420 560 370 1250 95 3/4"
DD-6/30
DJ-4/20
DL-11.5/55 1520 420 560 370 1250 95 3/4"
DD-8/40
DJ-6/30
DL-16.7/80 1820 480 660 440 1550 95 750 1"
DD-12/60
DJ-8/40
DL-22/105 1820 480 660 440 1550 95 750 1"
DD-16/80
DJ-11/15
DL-25.8/125 2300 480 660 440 2030 95 660 660 1"
DD-20/100
DJ-14/70
DL-33.6/160 2720 480 660 440 2450 95 800 800 1"
DD-24/120
DJ-17/85
DL-38.7/185 3120 480 660 440 2850 95 700 700 700 1"
DD-28.2/140
DJ-20/100
DL-44/210 3520 480 660 440 3250 95 800 800 800 1"
DD-32/160
DJ-23/115
DL-52.9/260 2220 730 860 650 1950 95 950 2"
DD-40/200
DJ-28/140
DL-67/330 2720 730 860 650 2450 95 800 800 2"
DD-50/250
DJ-34/170
DL-85.6/450 3200 1000 860 650 2930 95 960 960 2"
DD-60/310
DJ-42/210
