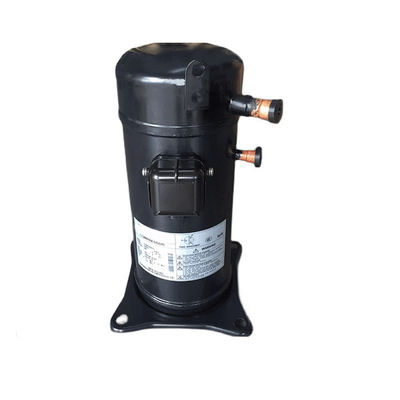

JT160GABY1L Cold Storage Compressor Refrigeration Unit Air Industrial Compressors
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Weight(KG) | 32.2 | Voltage | 380V/50HZ |
|---|---|---|---|
| Refrigerant | R22 | Application | Refrigeration Parts |
| Gas Type | Air | Marketing Type | Ordinary Product |
| Video Outgoing-inspection | Provided | Machinery Test Report | Provided |
| Core Components | Compressor | ||
| High Light | JT160GABY1L Cold Storage Compressor,R22 Cold Storage Compressor,JT160GABY1L ac compressor replacement |
||
Product Description
JT160GABY1L refrigeration unit air industrial compressors
1. High efficiency. We provide highe fficiency compressors through more precise machining, special assembly and oil sealing technology.
2. Low sound level. Using non-contact rolling, we achieve low sound power and low vibration
3. High reliability and long service life. Our scroll compressors have fewer moving parts, low repetitive shock and low sliding speed.
4. Wide operating voltage range. Our compressors are guaranteed to be within the voltage range (+ 10%) for the Chinese market.
Main performance parameters
| Model | JT160GABY1L | |
| rated power | KW | 3.75 |
| number of poles | — | 2 |
| cylinder volume | m³/rev | 79.2 |
| Rated speed | r/min | 2900[50Hz] |
| Refrigerator oil | — | DAPHNE SE56P |
| oil filling | m³ | 1400 |
| Use refrigerant | — | R22 |
| Suction side connecting pipe and inner diameter | mm | φ22.1~22.25 I.D. Copper-plated 20# steel pipe |
| Exhaust side connecting pipe and inner diameter | mm | φ16~16.15 I.D.C122OT—O |
| External cable connection terminal | — | AMP 42232—3 |
| weight | kg | 32.2(including refrigeration oil) |
| power supply | 3 Phase 50Hz | |
| Rated voltage | V | 380 |
Compressor operating range
| point | P1 | P2 | P3 | P4 | P5 | P6 | P7 | P8 |
| Evaporation temperature (℃) | 15 | 6 | -20 | -20 | -1 | 15 | 3 | -7 |
| Condensing temperature (℃) | 67 | 67 | 42 | 30 | 30 | 49 | 64 | 64 |
| point | P9 | P10 | P11 | P12 | P13 | P14 | P15 | P16 |
| Evaporation temperature (℃) | -25 | -37 | -37 | -20 | -20 | -25 | -25 | 15 |
| Condensing temperature (℃) | 46 | 26 | 2 | 10 | 21 | 21 | 30 | 30 |
Compressor size
