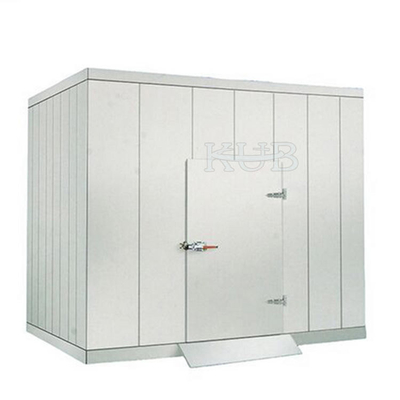

0 - 5 Degrees Celsius Cold Storage PU Panels Room Hinger Swing Door 220V

Place of Origin Shanghai, China
Brand Name KUB
Certification CE
Model Number KUB200
Minimum Order Quantity 1Piece
Price Consult
Packaging Details Pallet packaging
Delivery Time 15days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Piece/Pieces per Year
Product Details
Applicable Industries Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert Place Of Origin Shanghai, China
Voltage 220V 50HZ, 220v 50hz Weight 1000 KG
Key Selling Points Easy To Operate Panel Thickness 100mm
Machinery Test Report Provided Warranty Of Core Components 1 Year
Feature Cold Room Product Name Cold Storage Room
Refrigerant R404A Cold Room Doors Hinger Swing Door
Advantage Long Life Condition New
Temperature 0~ +5℃ Brand Name KUB
Dimension(L*W*H) 3*2*2.2m Warranty ONE YEAR
Compressor Brand Famous Cooling Capacity Other
Video Outgoing-inspection Provided Core Components Compressor
Usage Cold Storage After-sales Service Provided Online Support
Application Cold Storage Room Freezer Room Panel 100Mm PU Panels
Condensing Unit Air-cooled Condensing Unit Keywords Freezer Room Used
High Light

Cold Room Hinger Swing Door

,

220V Cold Storage Room PU Panels

,

5 Degrees Celsius Freezer Room

Leave a Message
Product Description

0-5 degrees Celsius cold storage price cold storage room cold room price

Cold storage support custom production, please contact me for more parameters



NO. ITEM DESCRIPTION QTY Unit Price (USD) Amount(USD)
Exterior Protection Structure
Cold room External dimensions 3*2*2.2m=13.2m³ Temperature : 0-5 degree 100mm panels
1

Insulation Panel



Thickness: 100mm/0.40mm,

Two side painted steel,





34 29/square 986
2 Hinged door

800*1800mm

Plastic frame half buried

door

Two side painted steel

1 300/set 300
3 LED light 8w 220V 50HZ 1 10/pcs 10
Refrigeration System
4

Condensing unit



Box type air cooler

condensing unit

Use compressor ZB15KQE

2HP R404A 220V 1PH 50HZ

1 595/set 595
5

Evaporator



Model: DD-3/15

Refrigerant gas: R 404A

Fan voltage :220v 1ph 50hz

electric defrost

1 220/set 220
6

Expansion Valve



T2 R404A



1 45/set 45
7 Control box

Model: ECB5060(5HP)

220v 1ph 50hz

1 150/pcs 150
8 Pipe

Copper pipes

16mm

10m/room/set

10 15/m 150
9 Pipe

Copper pipes

10mm

10m/room/set

10 10/m 100
  TOTAL (EXW Shanghai factory price )     2556
