Pure Stainless Steel Corrosion Resistant Air Cooler Shell Tubes Fins DD30 / DL60

Place of Origin Shanghai, China
Brand Name KUB
Certification CE
Model Number DD30/DL60
Minimum Order Quantity 1
Price Consult

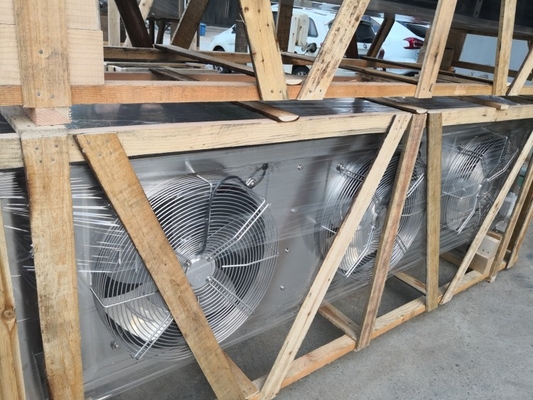

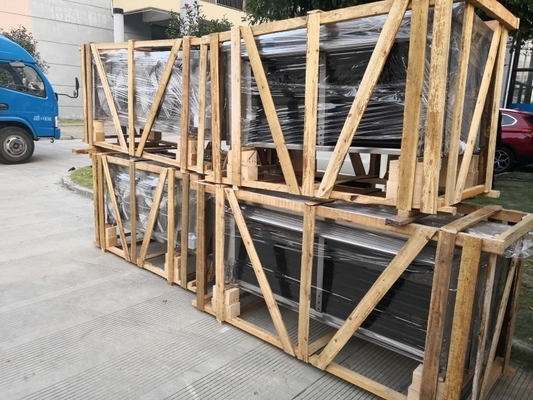

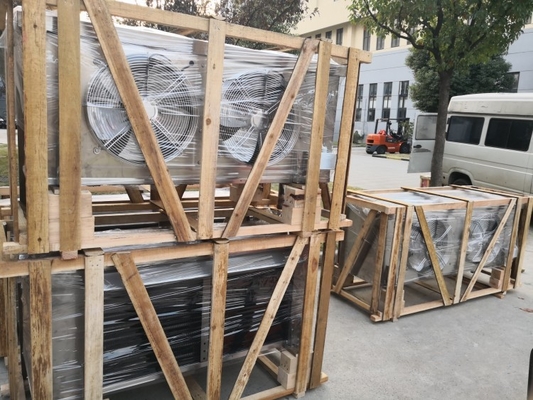

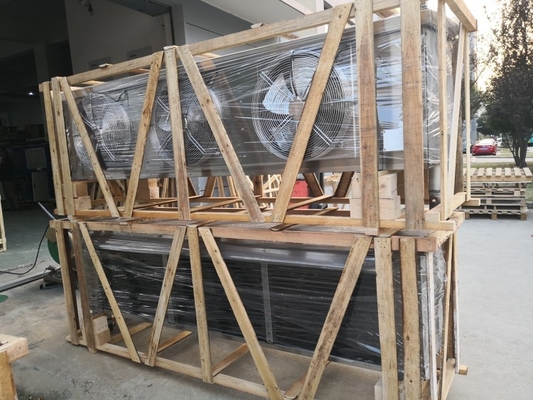

Packaging Details Carton or wooden box
Delivery Time 25days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Piece/Pieces per Year
Product Details
Name Cold Storage Air Cooler Material 304/316L
Brand KUB Model Customized On Request
Voltage 380V/220V Defrost Method Electric Defrosting/water Flushing Cream/hot Fluorine/combination Defrosting
The Refrigerant Fluorine/CO2/Coolant Use Fishery Refrigeration / Ship Refrigeration / Chemical Enterprise
High Light

Pure Stainless Steel Air Cooler

,

Corrosion Resistant Cool Room Evaporators

,

Cool Room Air Cooler DD30

Leave a Message
Product Description

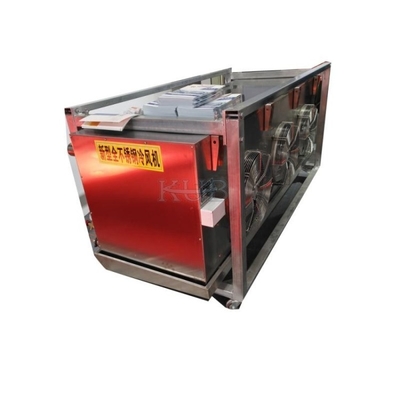

Pure stainless steel corrosion-resistant air cooler stainless steel shell, tubes, fins, fan blades, mesh cover DD30~210

Pure Stainless Steel Corrosion Resistant Air Cooler Shell Tubes Fins DD30 / DL60 0



1. Application scenarios: Chemical factories, pharmaceutical factories and other cold storages store corrosive items, and are used in scenarios that have corrosion resistance requirements for air coolers.


2. Features: stainless steel tube, stainless steel sheet, stainless steel motor, stainless steel casing, stainless steel oil sink elbow in the air cooler, stainless steel connecting pipe to the top of the warehouse, copper interface pipe outside the cold storage,



DDF-30 Cooler

Pure Stainless Steel Corrosion Resistant Air Cooler Shell Tubes Fins DD30 / DL60 1

serial number Model External dimensions Axial Fan Coiled tube Fin spacing Liquid supply direction
A B H A1 B1 Number Power Air volume
1 DDF-30㎡ 1010 550 650 670 580 LF-4.0 190W 4235³/h   6.0mm



Technical Parameters
1. The air cooler is made of φ 16 stainless steel tube, and the stainless steel fins are made of stainless steel shell; the fan blades and mesh cover of the axial flow fan are made of stainless steel:



DD Cooler

Pure Stainless Steel Corrosion Resistant Air Cooler Shell Tubes Fins DD30 / DL60 2

serial number Model External dimensions Axial Fan Coiled tube Fin spacing Liquid supply direction
A B H A1 B1 Number Power Air volume
1 DDF-120㎡ 2450 550 650 2110 580 LF-45*3 240W*3 16740m³/h   6.0mm φ19,φ57
2 DDF-80㎡ 1780 550 650 1430 580 LF-45*2 240W*3 11160/h   6.0mm φ19,φ42
3 DDF-60㎡ 1430 550 650 1080 580 LF-4.0*2 190W*3 8470/h   6.0mm φ19,φ42



Pure Stainless Steel Corrosion Resistant Air Cooler Shell Tubes Fins DD30 / DL60 3

serial number Model External dimensions Axial Fan Coiled tube Fin spacing Liquid supply direction
A B H A1 B1 Number Power Air volume
1 DDF-100㎡ 1990 540 760 1640 550 LF-4.5*2 240W*3 11160/h   6.0mm



Technical Parameters
1. DDF-100m2 air-conditioning cooler (fluorine refrigeration) is made of φ 16 stainless steel tube, stainless steel fin, and stainless copper shell;



KB450-4.506Z Alr Condltloner Alr Cooler

Pure Stainless Steel Corrosion Resistant Air Cooler Shell Tubes Fins DD30 / DL60 4

Model Evaporation area External dimensions Axial Fan Coiled tube Fin spacing Liquid supply direction
A B H A1 B1 Number Power Air volume
1 300㎡ 3710 570 760 1655*2 580 LF-5.0*4 460W*4 32000/h   4.5mm



Technical Parameters
1. KB450 4.5062 air-conditioning air cooler (ethylene glycol refrigeration) is made of φ 16 stainless steel tube and stainless steel sheet. Stainless steel shell production: material 316 (except axial flow phoenix machine)



KF-alr condltloner cooler (fluorlne refrlgeratlon)

Pure Stainless Steel Corrosion Resistant Air Cooler Shell Tubes Fins DD30 / DL60 5

serial number Model External dimensions Axial Fan Coiled tube Fin spacing Liquid supply direction
A B H A1 B1 Number Power Air volume
1 KF240-4.506Z 1480 570 650 1080 580 LF-4.0*2 190W*3 8470/h   4.5mm







Pure Stainless Steel Corrosion Resistant Air Cooler Shell Tubes Fins DD30 / DL60 6



Model External dimensions Axial Fan Coiled tube Fin spacing Liquid supply direction
A B H A1 B1 Number Power Air volume
DDF-220㎡ 3250 550 800 1420*2 560 LF-500*4 460W*3 24000 12*5 4.5mm

The air cooler is made of 304L stainless steel tube, 304 stainless steel sheet, and stainless steel shell. The axial flow fan without oil returm bend adopts a mesh-type external rotor fan, and the mesh cover and fan blades are made of stainless steel. Voltage 380v
