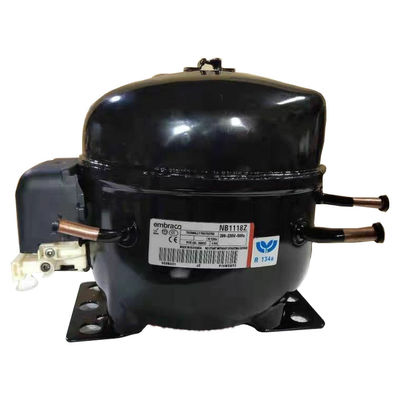

1 1/2 HP R22 Refrigeration Cold Storage Compressor NB1118Z

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xVoltage | 220v 50hz | Horse Power | 1 1/2HP |
---|---|---|---|
Warranty | 1 Year | After Warranty Service | Online Support |
After-sales Service Provided | Online Support | ||
Highlight | 1 1/2 HP Cold Storage Compressor,R22 Refrigeration Cold Storage Compressor,Cold Storage Compressor NB1118Z |
Rated Points
Condensing Temperature | Evaporating Temperature | Cooling Capacity | Power Consumption | Gas Flow Rate | Efficiency | ||
40.00°C | -35.00°C | 131 W | 88 W | 1.65 kg/h | 1.48 W/W |
Test Condition: EN12900LBP, Fan/NotControled/220, Return Gas 20°C, Evaporation -35.00°C, Condensing 40.00°C, Ambient 35°C , Liquid 40°C, Subcooling 0K. Data are an indication of performance based simulation.
Performance Curve Data
Condensing Temperature 35°C
Evaporating Temperature °C |
Cooling Capacity W |
Power W | Gas Flow Rate kg/h |
Efficiency W/W |
-30 | 170 | 100 | 1.98 | 1.69 |
-25 | 222 | 113 | 2.59 | 1.96 |
-20 | 288 | 126 | 3.38 | 2.28 |
-15 | 370 | 140 | 4.34 | 2.64 |
-10 | 468 | 155 | 5.51 | 3.01 |
-5 | 584 | 172 | 6.89 | 3.4 |
Test Condition: EN12900LBP, Fan/NotControled/220, Return Gas 20°C, Ambient 35°C , Subcooling 0K. Data are an indication of performance based simulation.
Condensing Temperature 45°C
Evaporating Temperature °C |
Cooling Capacity W |
Power W | Gas Flow Rate kg/h |
Efficiency W/W |
-30 | 155 | 108 | 1.98 | 1.43 |
-25 | 201 | 123 | 2.57 | 1.63 |
-20 | 259 | 139 | 3.32 | 1.87 |
-15 | 331 | 156 | 4.24 | 2.12 |
-10 | 416 | 174 | 5.35 | 2.39 |
-5 | 517 | 195 | 6.66 | 2.66 |
Test Condition: EN12900LBP, Fan/NotControled/220, Return Gas 20°C, Ambient 35°C , Subcooling 0K. Data are an indication of performance based simulation.
Condensing Temperature 55°C
Evaporating Temperature °C |
Cooling Capacity W |
Power W | Gas Flow Rate kg/h |
Efficiency W/W |
-25 | 175 | 130 | 2.45 | 1.34 |
-20 | 225 | 148 | 3.18 | 1.52 |
-15 | 287 | 168 | 4.06 | 1.71 |
-10 | 361 | 190 | 5.12 | 1.9 |
-5 | 448 | 214 | 6.37 | 2.1 |
Test Condition: EN12900LBP, Fan/NotControled/220, Return Gas 20°C, Ambient 35°C , Subcooling 0K. Data are an indication of performance based simulation.
External Dimensions
