NJ2192GK R404a Cold Storage Compressor 1HP 220v EN12900
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage | 220v 50hz | Horse Power | 1HP |
|---|---|---|---|
| Warranty | 1 Year | After Warranty Service | Online Support |
| After-sales Service Provided | Online Support | ||
| High Light | NJ2192GK Cold Storage Compressor,R404a Cold Storage Compressor,Cold Storage Compressor 1HP |
||
Product Description

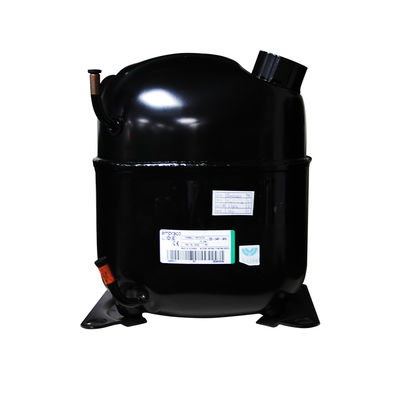

NJ2192GK R404a Cold Storage Compressor 1HP 220v EN12900
Rated Points
| Condensing Temperature | Evaporating Temperature | Cooling Capacity | Power Consumption | Gas Flow Rate | Efficiency | ||
| 40.00°C | -35.00°C | 643 W | 625 W | 17.20 kg/h | 1.03 W/W | ||
Test Condition: EN12900LBP, Fan/NotControled/220, Return Gas 20°C, Evaporation -35.00°C, Condensing 40.00°C, Ambient 35°C , Liquid 40°C, Subcooling 0K. Data are an indication of performance based simulation.
Performance Curve Data
Condensing Temperature 35°C
| Evaporating Temperature °C |
Cooling Capacity W |
Power W | Gas Flow Rate kg/h |
Efficiency W/W |
| -40 | 504 | 543 | 12.81 | 0.93 |
| -35 | 690 | 630 | 17.62 | 1.1 |
| -30 | 928 | 722 | 23.79 | 1.29 |
| -25 | 1219 | 817 | 31.39 | 1.49 |
| -20 | 1561 | 918 | 40.47 | 1.7 |
| -15 | 1956 | 1022 | 51.11 | 1.91 |
| -10 | 2404 | 1130 | 63.38 | 2.13 |
Test Condition: EN12900LBP, Fan/NotControled/220, Return Gas 20°C, Ambient 35°C , Subcooling 0K. Data are an indication of performance based simulation.
Condensing Temperature 45°C
| Evaporating Temperature °C |
Cooling Capacity W |
Power W | Gas Flow Rate kg/h |
Efficiency W/W |
| -35 | 545 | 628 | 15.79 | 0.87 |
| -30 | 746 | 743 | 21.69 | 1 |
| -25 | 989 | 861 | 28.94 | 1.15 |
| -20 | 1276 | 982 | 37.60 | 1.3 |
| -15 | 1606 | 1106 | 47.75 | 1.45 |
| -10 | 1980 | 1232 | 59.45 | 1.61 |
Test Condition: EN12900LBP, Fan/NotControled/220, Return Gas 20°C, Ambient 35°C , Subcooling 0K. Data are an indication of performance based simulation.
Condensing Temperature 55°C
| Evaporating Temperature °C |
Cooling Capacity W |
Power W | Gas Flow Rate kg/h |
Efficiency W/W |
| -30 | 550 | 769 | 18.76 | 0.72 |
| -25 | 746 | 901 | 25.65 | 0.83 |
| -20 | 977 | 1034 | 33.88 | 0.94 |
| -15 | 1242 | 1169 | 43.52 | 1.06 |
| -10 | 1542 | 1305 | 54.63 | 1.18 |
Test Condition: EN12900LBP, Fan/NotControled/220, Return Gas 20°C, Ambient 35°C , Subcooling 0K. Data are an indication of performance based simulation.
External Dimensions
