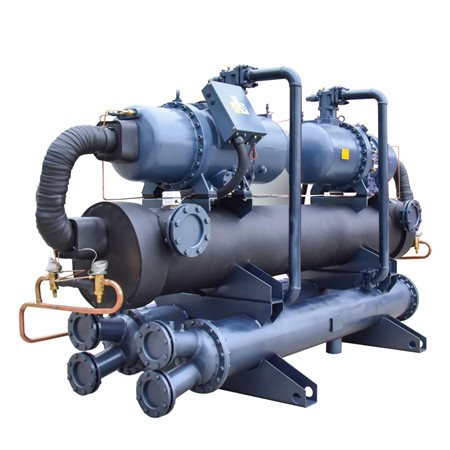

Mid Temperature Screw Compressor Racks R22 Refrigerant Semi Hermetic
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage | 380V/3Ph/50Hz | Warranty | 1 Year |
|---|---|---|---|
| After Warranty Service | Online Support | After-sales Service Provided | Online Support |
| High Light | Mid Temperature Screw Compressor Racks,R22 Refrigerant Screw Compressor Racks,Semi Hermetic Screw Compressor Racks |
||
Product Description
1. Produc t de sc ription
This HLG-H series products are applicable to the large size -5℃~8℃ and -15℃~-20℃ refrigeration system, as the large size fresh keeping cold rooms, ice making, chiller e tc.
This Series features Hanbell asymmetrical rotor screw compressors, multi -phase capacity regulation,
All this series products have a complete set protection devices for compressor motor coil, over discharging temperature, low oil level, low oil pressu re difference, high/low pressure etc.
3. Ma in c ompone nts
HLGS(F) ××M single unit:
●Screw Compressor. ●Condenser(only for Water cooled)●Receiver(only for Air cooled)●Filter vat ●Sight glasses ● Hydrojet syste m
●Feed pipe ball valve● Oil differential pressure protection● High & Low pressure protector ●Pressure gauge ●High pressure controller(control cooling tower or condenser fan)●Low pressure sensor(optional)●Unit control box (Nonshared control unit for screw compressor.)
HLGS(F) ××L single unit:
●Screw Compressor. ●Twice oil separ ate ●Oil separator outlet ball valve ●Oil return sight glasses ●Condenser(only for Water cooled)●Receiver(only for Air cooled)●Filter vat ●Sight glasses ●Hydrojet system ●Economizer system ●Oil differential pressur e protection ●High-low pressure protector. ●Pressure gauge ●High pressure controller(control cooling tower or condenser fan)●Low pressure sensor(optional)●Unit control box (Nonshared control unit for screw Compressor.)
HLGS(F) ××M Multi compressor rack :
●Screw Compressor. ●Oil separator ●Oil separ ator outlet valve ●Return oil system assembly ●Condenser(only for Water -cooling unit) ●Receiver ●Filter vat ●Sight glasses ●Hydrojet system ●Suction Filter ●Hi-glohw pressure protector ●Pressure gauge ●High
pressure controller (control cooling tower or con denser fan)●Low pressure sensor(optional)●Unit control box(PLC+Touch panel HLGS(F) ××L Multi compressor rack
●Screw Compressor ●Oil separator ●Oil separator outlet valve ●Return oil system assembly ●Oil cooler(only for Air -cooling unit)●Condenser(only for Water cooled)●Receiver ●Filter vat ●Sight glasses ●Hydrojet system ●Suction Filter ●Economizer system
●High-low pressure protector ●Pressure gauge ●High pressure controller (control condensing fan)●Low pressure
sensor(optional)●Unit control box (PLC+Touch panel) Air cooled rack condenser is optional.
| Model | HLGS-30MH | HLGS-40MH | HLGS-50MH | HLGS-60MH | ||
| Evaporating. Temperature( ℃) | -5~8 | |||||
| Refrigerant | R22 | |||||
| Power supply | 380V/50HZ | |||||
| Comp. | Type | Semi-Hermetic Screw | ||||
| Comp. Model | RC2 -100B | RC2 -140B | RC2 -180B | RC2 -230B | ||
| Qty. | 66%-100% | 50%-75%-100% | ||||
| Condenser | Type | Shell & Copper Tube | ||||
| Rated water flow(m 3/h) | 18 | 24 | 31 | 42 | ||
| Connect spec. | 2-1/2” | 2-1/2” | 3” | 3” | ||
| Cap &Watt | Te 0℃ | Cap. (KW) | 78.5 | 107 | 140.3 | 186.3 |
| Input (KW) | 22.9 | 30.2 | 37.8 | 50.5 | ||
| Te -5℃ |
Cap. (KW) | 64.9 | 88.5 | 116.1 | 154.1 | |
| Input (KW) | 21.9 | 28.9 | 36.2 | 48.4 | ||
| Te -10℃ |
Cap. (KW) | 55.3 | 72.7 | 95.3 | 126.5 | |
| Input (KW) | 21.0 | 27.7 | 34.7 | 46.3 | ||
| Conn ect | Liquid dia. (mm) | φ54 | φ54 | φ66 | φ76 | |
| Gas out dia. (mm) | φ28 | φ28 | φ35 | φ35 | ||
| Overall sizes | A(mm) | 1700 | 1700 | 2150 | 2300 | |
| B(mm) | 670 | 670 | 680 | 770 | ||
| C(mm) | 1100 | 1100 | 1100 | 1250 | ||
| overall size a×b (mm) | 1000×390 | 1000×390 | 1200×390 | 1200×450 | ||
| Model | HLGS-70MH | HLGS-80MH | HLGS-90MH | HLGS-100MH | ||
| Evaporating. Temperature( ℃) | -5~8 | |||||
| Refrigerant | R22 | |||||
| Power supply | 380V/50HZ | |||||
| Comp. | Type | Semi-Hermetic Screw | ||||
| Comp. Model | RC2 -260B | RC2 -310B | RC2 -340B | RC2 -370B | ||
| Qty. | 50%-75%-100% | |||||
| Condenser | Type | Shell & Copper Tube | ||||
| Rated water flow(m 3/h) | 46 | 56 | 62 | 67 | ||
| Connect spec. | 4” | 4” | 5” | 5” | ||
| Cap &Watt | Te 0℃ | Cap. (KW) | 204.5 | 254.5 | 278.5 | 301.5 |
| Input (KW) | 55.1 | 65.1 | 71.8 | 78.2 | ||
| Te -5℃ |
Cap. (KW) | 169.1 | 210.6 | 230.4 | 249.4 | |
| Input (KW) | 52.7 | 62.4 | 69.0 | 74.9 | ||
| Te -10℃ |
Cap. (KW) | 138.9 | 172.9 | 189.2 | 204.8 | |
| Input (KW) | 50.4 | 59.7 | 66.8 | 71.8 | ||
| Connect | Liquid dia.. (mm) | φ76 | φ76 | φ108 | φ108 | |
| Gas out dia.. (mm) | φ35 | φ42 | φ42 | φ42 | ||
| Overall sizes | A(mm) | 2300 | 2600 | 2600 | 2600 | |
| B(mm) | 770 | 850 | 850 | 850 | ||
| C(mm) | 1250 | 1300 | 1300 | 1300 | ||
| overall size a×b(mm) | 1200×450 | 1500×500 | 1500×500 | 1500×500 | ||
| Model | HLGS2-60MH | HLGS2-80MH | HLGS2-100MH | HLGS2-120MH | |||
| Evaporating. Temperature( ℃) | -5℃~8℃ | ||||||
| Refrigerant | R22 | ||||||
| Power supply | 380V/50HZ | ||||||
| Comp. | Type | Semi-Hermetic Screw | |||||
| Comp. Model | RC2 -100B | RC2 -140B | RC2 -180B | RC2 -230B | |||
| Qty. | 2 | 2 | 2 | 2 | |||
| Energy ad justment | 33%-50%-66%-100% | 25%-50%-75%-100% | |||||
| Condenser | Type | Shell & Copper Tube | |||||
| Water flow(m3/h) | 36 | 48 | 63 | 70 | |||
| Connector Size | 3＂ | 4＂ | 5＂ | 5＂ | |||
| Cap. & Watt. | Te 0℃ | Cap. (KW) | 157 | 214 | 280.6 | 372.6 | |
| Input (KW) | 45.8 | 60.4 | 75.6 | 101.0 | |||
| Te -5℃ |
Cap. (KW) | 129.8 | 177 | 232.2 | 308.2 | ||
| Input (KW) | 43.8 | 59.4 | 72.4 | 96.8 | |||
| Te -10℃ |
Cap. (KW) | 106.6 | 145.4 | 190.6 | 253 | ||
| Input (KW) | 42.0 | 55.4 | 69.4 | 92.6 | |||
| Conne ctor | Suction (mm) | φ76 | φ89 | φ108 | φ108 | ||
| Gas out dia.. (mm) | φ35 | φ35 | φ42 | φ42 | |||
| Overall Size A×B×C(mm) | 2300×1550×1470 | 2300×1550×4170 | 2650×1750×1470 | 3090×1850×1860 | |||
| Model | HLGS2-140MH | HLGS2-160MH | HLGS2-180MH | HLGS2-200MH | |||
| Evaporating. Temperature( ℃) | -5℃~8℃ | ||||||
| Refrigerant | R22 | ||||||
| Power supply | 380V/50HZ | ||||||
| Comp. | Type | Semi-Hermetic Screw | |||||
| Comp. Model | RC2 -260B | RC2 -310B | RC2 -340B | RC2 -370B | |||
| Qty. | 2 | 2 | 2 | 2 | |||
| Energy adjustment | 25%-50%-75%-100% | ||||||
| Condenser | Type | Shell & Copper Tube | |||||
| water flow (m3/h) | 93 | 113 | 125 | 136 | |||
| Connector Size | 6” | 6” | 5” | 6” | |||
| Cap. & Watt. | Te 0℃ | Cap. (KW) | 409 | 509 | 557 | 603 | |
| Input (KW) | 110.0 | 130.2 | 143.4 | 156.4 | |||
| Te -5℃ |
Cap. (KW) | 338.2 | 421.2 | 460.8 | 498.8 | ||
| Input (KW) | 105.4 | 124.8 | 137.4 | 149.8 | |||
| Te -10℃ |
Cap. (KW) | 277.8 | 345.8 | 378.4 | 409.6 | ||
| Input (KW) | 100.8 | 119.4 | 131.6 | 143.6 | |||
| Connector | Suction (mm) | φ108 | φ108 | φ108 | φ133 | ||
| Gas out dia.. (mm) | φ54 | φ54 | φ54 | φ54 | |||
| Overall Size A×B×C(mm) | 3200×1850×1860 | 3370×2050×1860 | 3370×2050×1860 | 3470×2100×2100 | |||
| Model | HLGS3-90MH | HLGS3-120MH | HLGS3-150MH | HLGS3-180MH | ||
| Evaporating. Temperature( ℃) | -5℃~8℃ | |||||
| Refrigerant | R22 | |||||
| Power supply | 380V/50HZ | |||||
| Comp | Type | Semi-Hermetic Screw | ||||
| Comp. Model | RC2 -100B | RC2 -140B | RC2 -180B | RC2 -230B | ||
| Qty. | 3 | 3 | 3 | 3 | ||
| Energy adjustment | 33%-66%-100% | 16%-33%-50%-66%-83% -100% |
||||
| Condenser | Type | Shell & Copper Tube | ||||
| Water flow (m3/h) | 55 | 75 | 95 | 130 | ||
| Connector Size | 4” | 5” | 5” | 6” | ||
| Cap. & Watt. | Te 0℃ | Cap. (KW) | 235.5 | 321 | 420.9 | 558.9 |
| Input (KW) | 68.7 | 90.6 | 113.4 | 151.5 | ||
| Te -5℃ |
Cap. (KW) | 194.7 | 265.5 | 348.3 | 462.3 | |
| Input (KW) | 65.7 | 86.7 | 108.6 | 145.2 | ||
| Te -10℃ |
Cap. (KW) | 159.9 | 218.1 | 285.9 | 379.5 | |
| Input (KW) | 63.0 | 83.1 | 104.1 | 138.9 | ||
| Connector | Suction (mm) | 2×φ76 | 2×φ76 | 2×φ76 | 2×φ108 | |
| Gas out dia.. (mm) | φ35 | φ42 | φ54 | φ54 | ||
| Overall Size A×B×C(mm) | 2800×1750×1470 | 3000×1750×1780 | 3200×1750×1790 | 3700×2100×1860 | ||
| Model | HLGS3-210MH | HLGS3-240MH | HLGS3-270MH | HLGS3-300MH | ||
| Model | HLGS-30LH | HLGS-40LH | HLGS-50LH | HLGS-60LH | ||
| Evaporating. Temperature( ℃) | -15~-20 | |||||
| Refrigerant | R22 | |||||
| Power supply | 380V/50HZ | |||||
| Comp. | Type | Semi-Hermetic Screw | ||||
| Comp. Model | RC2 -100B | RC2 -140B | RC2 -180B | RC2 -230B | ||
| Qty. | 66%-100% | 50%-75%-100% | ||||
| Condenser | Type | Shell & Copper Tub e | ||||
| Water flow (m3/h) | 11 | 15 | 18 | 25 | ||
| Connector Size | 2-1/2＂ | 2-1/2＂ | 3＂ | 3＂ | ||
| Cap &Watt | Te -20℃ |
Cap. (KW) | 43.3 | 59.1 | 77.1 | 102.9 |
| Input (KW) | 21.5 | 28.3 | 35.5 | 47.3 | ||
| Te -25℃ |
Cap. (KW) | 35.4 | 48.3 | 63.3 | 84.7 | |
| Input (KW) | 20.8 | 27.4 | 34.4 | 45.9 | ||
| Te -30℃ |
Cap. (KW) | 28.6 | 39 | 51.2 | 67.9 | |
| Input (KW) | 20.1 | 26.4 | 33.2 | 44.3 | ||
| Connect | Liquid dia.. (mm) | φ54 | φ54 | φ66 | φ76 | |
| Gas out dia.. (mm) | φ22 | φ22 | φ28 | φ28 | ||
| Overall sizes |
A(mm) | 1700 | 1700 | 2150 | 2300 | |
| B(mm) | 670 | 670 | 680 | 770 | ||
| C(mm) | 1140 | 1140 | 1150 | 1300 | ||
| overall size a×b (mm) | 1000×800 | 1000×800 | 1200×1000 | 1200×1000 | ||
| Model | HLGS-70LH | HLGS-80LH | HLGS-90LH | HLGS-100LH | ||
| Evaporating. Temperature( ℃) | -15~-20 | |||||
| Refrigerant | R22 | |||||
| Power supply | 380V/50HZ | |||||
| Comp. | Type | Semi-Hermetic Screw | ||||
| Comp. Model | RC2 -260B | RC2 -310B | RC2 -340B | RC2 -370B | ||
| Qty. | 50%-75%-100% | |||||
| Con denser | Type | Shell & Copper Tube | ||||
| Water flow (m 3/h) | 27 | 34 | 37 | 40 | ||
| Connector Size | 3＂ | 3＂ | 4＂ | 4＂ | ||
| Cap &Watt | Te -20℃ |
Cap. (KW) | 112.9 | 140.6 | 153.8 | 166.5 |
| Input (KW) | 51.6 | 61.1 | 67.2 | 73.4 | ||
| Te -25℃ |
Cap. (KW) | 92.3 | 114.9 | 125.7 | 136.1 | |
| Input (KW) | 50.0 | 59.3 | 65.2 | 71.2 | ||
| Te -30℃ |
Cap. (KW) | 74.6 | 92.9 | 101.6 | 110 | |
| Input (KW) | 48.2 | 57.1 | 62.9 | 68.6 | ||
| Connect | Liquid dia.. (mm) | φ76 | φ76 | φ108 | φ108 | |
| Gas out dia.. (mm) | φ28 | φ35 | φ35 | φ35 | ||
| Overall | A(mm) | 2300 | 2600 | 2600 | 2600 | |
| B(mm) | 770 | 850 | 850 | 850 | ||
| C(mm) | 1300 | 1350 | 1350 | 1300 | ||
| overall size a×b(mm) | 1200×1000 | 1500×1300 | 1500×1300 | 1500×1300 | ||
| Model | HLGS2-60LH | HLGS2-80LH | HLGS2-100LH | HLGS2-120LH | ||
| Evaporating. Temperature( ℃) | -15℃~-20℃ | |||||
| Refrigerant | R22 | |||||
| Power supply | 380V/50HZ | |||||
| Compressor | Type | Semi-Hermetic Screw | ||||
| Comp. Model | RC2 -100B | RC2 -140B | RC2 -180B | RC2 -230B | ||
| Qty. | 2 | 2 | 2 | 2 | ||
| Energy adjustment | 33%-50%-66%-100% | 25%-50%-75%-100% | ||||
| Condenser | Type | Shell & Copper Tube | ||||
| Water flow (m 3/h) | 22 | 30 | 38 | 50 | ||
| Connector Size | 3＂ | 3＂ | 4＂ | 5＂ | ||
| Cap. & Watt. | Te -20℃ |
Cap. (KW) | 86.6 | 118.2 | 155 | 205.8 |
| Input (KW) | 43.0 | 56.6 | 71.0 | 94.6 | ||
| Te -25℃ |
Cap. (KW) | 70.8 | 96.6 | 126.6 | 168.2 | |
| Input (KW) | 41.6 | 54.8 | 68.8 | 91.8 | ||
| Te -30℃ |
Cap. (KW) | 57.2 | 78 | 102.4 | 135.8 | |
| Input (KW) | 40.2 | 52.8 | 66.4 | 88.6 | ||
| Connector | Suction (mm) | φ76 | φ89 | φ108 | φ108 | |
| Gas out dia.. (mm) | φ35 | φ35 | φ42 | φ42 | ||
| Overall Size A×B×C(mm) | 2300×1750×1470 | 2300×1750×1470 | 2650×1950×1470 | 3090×1950×1860 | ||
| Model | HLGS2-140LH | HLGS2-160LH | HLGS2-180LH | HLGS2-200LH | ||
| Evaporating. Tempe rature( ℃) | -15℃~-20℃ | |||||
| Refrigerant | R22 | |||||
| Power supply | 380V/50HZ | |||||
| Comp. | Type | Semi-Hermetic Screw | ||||
| Comp. Model | RC2 -260B | RC2 -310B | RC2 -340B | RC2 -370B | ||
| Qty. | 2 | 2 | 2 | 2 | ||
| Energy adjustment | 25%-50%-75%-100% | |||||
| Condenser | Type | Shell & Copper Tube | ||||
| Water flow (m 3/h) | 55 | 68 | 75 | 80 | ||
| Connector Size | 5＂ | 5＂ | 5＂ | 5＂ | ||
| Cap. & Watt. | Te -20℃ |
Cap. (KW) | 225.8 | 281.2 | 307.6 | 333 |
| Input (KW) | 103.2 | 122.2 | 134.4 | 146.8 | ||
| Te -25℃ |
Cap. (KW) | 184.6 | 229.8 | 251.4 | 272.2 | |
| Input (KW) | 100.0 | 118.6 | 130.4 | 142.4 | ||
| Te -30℃ |
Cap. (KW) | 149.2 | 185.8 | 203.2 | 220 | |
| Input (KW) | 96.4 | 114.2 | 125.8 | 137.2 | ||
| Connector | Suction (mm) | φ108 | φ108 | φ108 | φ133 | |
| Gas out dia.. (mm) | φ54 | φ54 | φ54 | φ54 | ||
| Overall Size A×B×C(mm) | 3290×1950×1860 | 3370×2050×1860 | 3370×2050×1860 | 3470×2100×2100 | ||
| Model | HLGS3-90LH | HLGS3-120LH | HLGS3-150LH | HLGS3-180LH | ||
| Evaporating. Temperature( ℃) | -15℃~-20℃ | |||||
| Refrigerant | R22 | |||||
| Power supply | 380V/50HZ | |||||
| Comp. | Type | Semi-Hermetic Screw | ||||
| Comp. Model | RC2 -100B | RC2 -140B | RC2 -180B | RC2 -230B | ||
| Qty. | 3 | 3 | 3 | 3 | ||
| Energy adjustment | 33%-66%-100% | 16%-33%-50%-66%-83% -100% |
||||
| Condenser | Type | Shell & Copper Tube | ||||
| Water flow (m3/h) | 33 | 45 | 57 | 76 | ||
| Connector Size | 3＂ | 4＂ | 5＂ | 5＂ | ||
| Cap. & Watt. | Te -20℃ |
Cap. (KW) | 129.9 | 177.3 | 232.5 | 308.7 |
| Input (KW) | 64.5 | 84.9 | 106.5 | 141.9 | ||
| Te -25℃ |
Cap. (KW) | 106.2 | 174.9 | 189.9 | 252.3 | |
| Input (KW) | 62.4 | 82.2 | 103.2 | 137.7 | ||
| Te -30℃ |
Cap. (KW) | 85.8 | 117 | 153.6 | 203.7 | |
| Input (KW) | 60.3 | 79.2 | 99.6 | 132.9 | ||
| Connector | Suction (mm) | 2×φ76 | 2×φ76 | 2×φ76 | 2×φ108 | |
| Gas out dia.. (mm) | φ35 | φ42 | φ42 | φ54 | ||
| Overall Size A×B×C(mm) | 2800×1950×1470 | 3000×1950×1780 | 3200×1950×1790 | 3700×2100×1860 | ||
Recommended Products
-
VIDEO
-
VIDEO
