PA Plastic 6 Fiberglass Reinforced Centrifugal Fan 190mm 230V R2E190-AO26-05PA

Place of Origin Shanghai, China
Brand Name ebmpapst
Certification CE
Model Number R2E190-AO26-05
Minimum Order Quantity 1
Price Consult
Packaging Details Carton
Delivery Time 15days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Piece/Pieces per Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Centrifugal Fan Electric Current Type AC
Place Of Origin Germany Voltage 230V
After-sales Service Provided Online Support Size 190 Mm
Material PA Plastic 6, Fiberglass-reinforced Impeller 7pcs
Weight 1.2KG Blade Material Plastic
Mounting FREE STANDING Warranty 1 Year, 1 Year
Product Name AC Centrifugal Fan Color Coated In Black
Bearing Type Ball Bearing
High Light

PA Plastic 6 Reinforced Centrifugal Fan

,

Fiberglass Reinforced Centrifugal Fan 190mm

,

230V Fiberglass Reinforced Centrifugal Fan

Leave a Message
Product Description

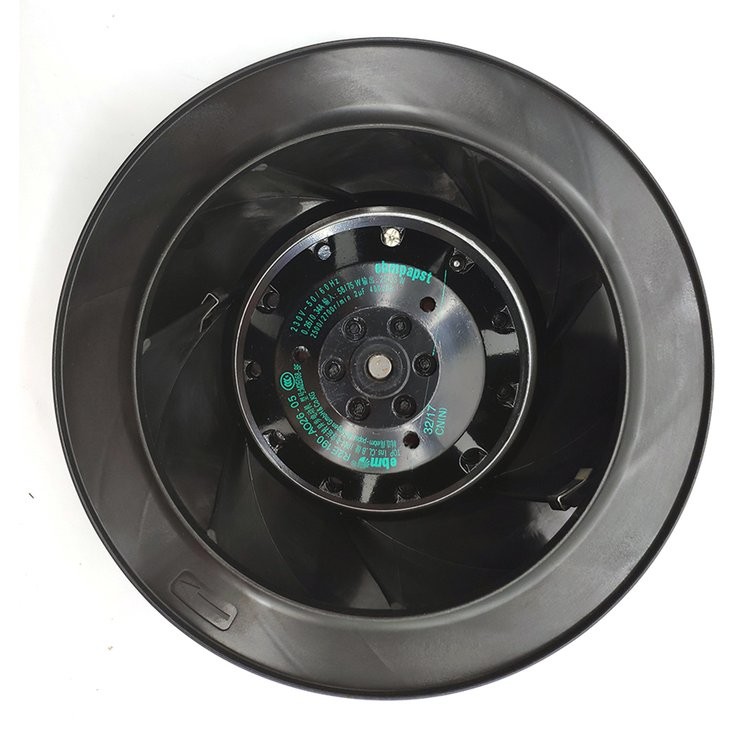

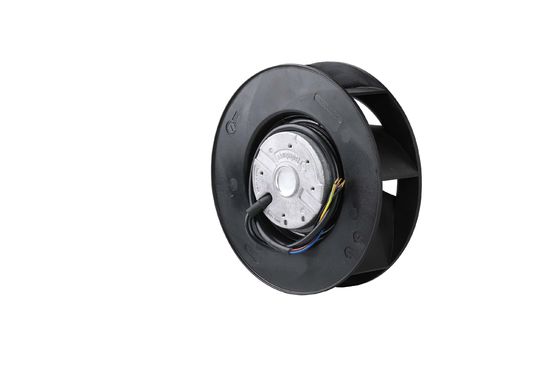

R2E190-AO26-05 ebmpapst centrifugal fan 230V R2E190-AO26-05/ impeller PA plastic 6, fiberglass-reinforced

Nominal data:

Type R2E190-AO26-05
Motor M2E068-BF
Phase 1~ 1~
Nominal voltage VAC 230 230
Frequency Hz 50 60
Type of data definition fa fa
Valid for approval / standard CE CE
Speed min-1 2500 2700
Power input W 58 75
Current draw A 0.26 0.34
Motor capacitor μF 2 2
Capacitor voltage VDB 400 400
Capacitor standard P0 (CE) P0 (CE)
Min. back pressure Pa 0 0
Min. ambient temperature °C -25 -25
Max. ambient temperature °C 50 55



Technical features:



Mass 1.2 kg
Size 190 mm
Surface of rotor Coated in black
Material of impeller PA plastic 6, fiberglass-reinforced
Number of blades 7
Direction of rotation Clockwise, seen on rotor
Type of protection IP 44; Depending on installation and position as per EN 60034-5
Insulation class "B"
Humidity class F1-2
Max. permissible ambient motor
temp. (transp./ storage)
+ 80 °C
Min. permissible ambient motor
temp. (transp./storage)
- 40 °C
Mounting position Shaft horizontal or rotor on bottom; rotor on top on request
Condensate discharge holes Rotor-side
Operation mode S1
Motor bearing Ball bearing
Touch current acc. IEC 60990
(measuring network Fig. 4, TN
system)
< 0.75 mA
Motor protection Thermal overload protector (TOP) wired internally



Cable exit:Variable

Protection class I (if protective earth is connected by customer)
Product conforming to standard EN 60335-1; CE
Approval CCC; GOST
