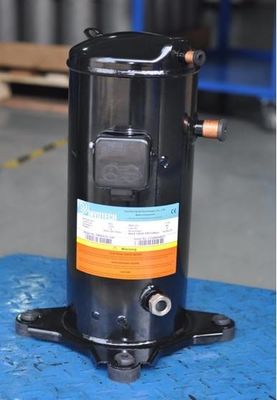

Scroll Freezing Cold Storage Compressor R404A Refrigerant 5HP 220v380v460v 3ph 50hz Cryogenic Refrigeration Compressor

  • Scroll Freezing Cold Storage Compressor R404A Refrigerant 5HP 220v380v460v 3ph 50hz Cryogenic Refrigeration Compressor
  • Scroll Freezing Cold Storage Compressor R404A Refrigerant 5HP 220v380v460v 3ph 50hz Cryogenic Refrigeration Compressor
  • Scroll Freezing Cold Storage Compressor R404A Refrigerant 5HP 220v380v460v 3ph 50hz Cryogenic Refrigeration Compressor
Place of Origin Shanghai, China
Brand Name INVOTECH
Certification CE
Model Number as follows
Minimum Order Quantity 16
Price Discuss
Packaging Details Pallet packaging
Delivery Time 20days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Piece/Pieces per Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Maximum Condensation Temperature 65℃ Refrigerant R22/R404A
Evaporation Temperature(R22) -15℃~+11.9℃ Evaporation Temperature(R404A) -30℃~+10℃
High Light

Scroll Freezing Cold Storage Compressor

,

Cold Storage Compressor R404A

,

Cold Storage Compressor 5HP
Leave a Message
Product Description
YM Series
Scroll Compressors With Dual-Compliance For Mid. Temp. Application



• Specific Design for Refs. Application, Not Only the Scroll Set But Also the Unit,Precise Product-Definition Based on Customer's Need
• Both Build-in Radius and Axial Compliance Design, Improved Floating Seal Design for Better Energy Efficiency
• Excellent Discharge Temperature Management to Stretch Operation Envelope
• Accurate Calculation of Load and Sealing Force for Running Sound Optimization
• High Efficiency Motor DesignScroll Freezing Cold Storage Compressor R404A Refrigerant 5HP 220v380v460v 3ph 50hz Cryogenic Refrigeration Compressor 0
• Specific Design for Refs. Application, Not Only the Scroll Set But Also the Unit, Precise Product-Definition Based on Customer's Need
• Both Build-in Radius and Axial Compliance Design, Improved Floating Seal Design for Better Energy Efficiency
• Excellent Discharge Temperature Management to Stretch Operation Envelope
• Accurate Calculation of Load and Sealing Force for Running Sound Optimization
• High Efficiency Motor Design
• RepairableScroll Freezing Cold Storage Compressor R404A Refrigerant 5HP 220v380v460v 3ph 50hz Cryogenic Refrigeration Compressor 1

 Nomenclature



Scroll Freezing Cold Storage Compressor R404A Refrigerant 5HP 220v380v460v 3ph 50hz Cryogenic Refrigeration Compressor 2

Scroll Freezing Cold Storage Compressor R404A Refrigerant 5HP 220v380v460v 3ph 50hz Cryogenic Refrigeration Compressor 3

Specifications/R22



Model

YM34A2G-

102

YM43A2G-

102

YM49A2G-

102

YM70A2G-

100

YM34A1G-

100

YM43A1G-

100

YM49A1G-

100

YM70A1G-

100

YM86A1G-

100

YM102A1G-

100
Electricity 220V/50Hz/1P 380-420V/50Hz/3P
Powser in Horse Powser(HP) 2 2.5 3 4 2 2.5 3 4 5 6
Displacement (Mᵌ/H) 5.8 7.3 8.1 11.8 5.8 7.3 8.1 11.8 14.5 17.1
Refrigcrant R22
Capaily 3600 4300 4900 7000 3600 4300 4900 7000 8600 10200
Power in War (W) 1820 2130 2300 3180 1800 2030 2250 3120 3740 4430
Running Current(A) 8.6 10.1 10.9 15.1 3.2 4.7 4.9 6.4 7.6 8.5
COP (W/W) 1.98 2.02 2.13 2.21 2 2.12 2.18 2.25 2.3 2.3
LRA(A) 76 76 76 109 22 45 45 60 60 65
MOC(A) 15.2 16.2 18 26.5 4.9 6.1 6.5 9.7 11.5 13.5
Crankcase Heater (W) 70
DiechargeTube(OD) 1/2
Suction Tube(OD) 7/8
Length (L) 253
Wdth (w) 239.4
Height (H) 437 482
Feet Dimensions (Hole) 190X190(8.5)
Oil Type 3GS
Initial Chargc Volurnc(L) 1.4 1.6
RechargeVolume(L) 1.25 1.45
High Side 3
Low Side 2
Weight 31 31 31 33 29 30 30 31 31 40





Model

YM125A1G-

100

YM132A1G-

100

YM158A1G-

100

YM182A1G-

100

YM200A1G-

100

YM210A1G-

100

YSM235A1G-

100

YSM260A1G-

100
Electricity 380-420V/50Hz/3P
Power in Horse Power(HP) 7 8 9 10 12 13 14 15
Displacement (Mᵌ/H) 20.1 21.4 25.3 29.1 32.9 34.3 37.7 42.5
Refrigerant R22
Capacity (w) 12500 13200 16219 18200 20000 21000 23500 26000
Powcr in Watt (W) 5430 5690 6991 7745 8510 8860 10450 11560
Running Current (A) 11 11.2 12.7 13.6 14.9 15.7 19.1 20.7
COP (W/W) 2.3 2.32 2.32 2.35 2.35 2.37 2.25 2.25
LRA(A) 117 117 117 121 121 121 148.5 148.5
MOC(A) 16.3 17.4 19.8 22.3 25 26 27.4 31.3
Crankcase Heater (W) 90 75
DiechargeTube(OD) 7/8
Suction Tube(OD) 1 1/8 1 3/8
Length (L) 262.7 318
Wdth (w) 245.4 309
Height (H) 525.7 602
Feet Dimensions (Hole) 190*190(8.5)
Oil Type 3GS
Initial Chargc Volurnc(L) 2.7 3.0
RechargeVolume(L) 2.6 2.8
High Side 3
Low Side 2
Weight 53 53 53 54 54 54 90 90

E.T. -6.7°C, C.T. 48.9°C, R.G. 4.4°C, No Subcooling







Operating EnvelopeScroll Freezing Cold Storage Compressor R404A Refrigerant 5HP 220v380v460v 3ph 50hz Cryogenic Refrigeration Compressor 4



Capacity





Model C.T.
(℃)		 E.T.(℃)
-15 -10 -5 0 5 10

YM34A2G-102		 Cap
(W)		 60 / 2752 3514 4140 4877 5733
50 2459 3017 3966 4751 5618 6578
40 3078 3760 4541 5400 6313 7296
30 3491 4216 5012 5861 6741 7669
Power
(W)		 60 / 2014 2112 2196 2274 2354
50 1640 1721 1788 1850 1917 1996
40 1397 1455 1509 1567 1640 1735
30 1177 1230 1288 1362 1458 1587

YM43A2G-102		 Cap
(W)		 60 / 3288 4033 4751 5597 6579
50 2822 3462 4551 5453 6447 7549
40 3533 4315 5212 6197 7245 8373
30 4006 4838 5752 6726 7736 8800
Power
(W)		 60 / 2318 2431 2527 2617 2710
50 1888 1981 2058 2130 2206 2297
40 1608 1674 1736 1804 1888 1997
30 1355 1416 1483 1567 1679 1827
YM49A2G-102 Cap
(W)		 60 / 3746 4783 5635 6638 7803
50 3346 4106 5398 6467 7647 8954
40 4190 5118 6181 7349 8593 9931
30 4751 5738 6822 7977 9175 10438
Power
(W)		 60 / 2616 2744 2853 2954 3059
50 2131 2236 2323 2404 2490 2593
40 1815 1890 1960 2037 2131 2254
30 1530 1598 1674 1769 1895 2062
YM70A2G-100 Cap
(W)		 60 / 5352 6833 8050 9483 11147
50 4781 5866 7712 9239 10924 12791
40 5986 7312 8830 10499 12275 14187
30 6788 8197 9746 11396 13108 14911
Power
(W)		 60 / 3631 3808 3959 4099 4245
50 2958 3103 3224 3336 3456 3598
40 2519 2623 2720 2826 2957 3129
30 2123 2217 2323 2455 2629 2862
YM102AIG-100 Cap
(W)		 60 / 7798 9956 11730 13819 16243
50 6966 8547 11237 13462 15918 18638
40 8722 10654 12867 15299 17887 20673
30 9891 11944 14201 16605 19100 21728
Power
(W)		 60 / 5085 5333 5544 5741 5945
50 4142 4346 4515 4673 4840 5040
40 3528 3674 3810 3958 4142 4382
30 2973 3106 3253 3438 3683 4008
YM125A1G-100 Cap
(W)		 60 / 9557 12201 14376 16935 19906
50 8537 10475 13771 16498 19507 22841
40 10689 13056 15769 18749 21920 25334
30 12121 14637 17404 20350 23406 26627
Power
(W)		 60 / 6294 6601 6863 7106 7359
50 5127 5379 5589 5784 5991 6238
40 4367 4547 4715 4899 5126 5423
30 3680 3844 4027 4256 4558 4961
YM132A1G-100 Cap
(W)		 60 / 10092 12884 15181 17883 21021
50 9015 11061 14542 17422 20600 24120
40 11287 13788 16652 19799 23148 26753
30 12800 15457 18378 21489 24717 28118
Power
(W)		 60 / 6647 6971 7247 7504 7771
50 5414 5680 5902 6108 6326 6587
40 4611 4802 4979 5174 5413 5727
30 3886 4059 4252 4494 4813 5239
YM158A1G-100 Cap
(W)		 60 / 12386 15813 18631 21947 25798
50 11064 13575 17847 21381 25282 29601
40 13852 16921 20436 24298 28409 32833
30 15709 18970 22555 26373 30335 34508
Power
(W)		 60 / 8157 8555 8894 9210 9537
50 6645 6971 7243 7496 7764 8085
40 5659 5893 6111 6349 6643 7029
30 4769 4982 5219 5515 5907 6430
YM182AIG-100 Cap
(W)		 60 / 13915 17765 20931 24657 28983
50 12430 15251 20050 24021 28403 33256
40 15563 19010 22959 27298 31916 36887
30 17648 21312 25340 29629 34080 38769
Power
(W)		 60 / 9073 9516 9893 10244 10608
50 7391 7755 8057 8338 8636 8993
40 6295 6555 6798 7063 7390 7818
30 5305 5541 5805 6135 6571 7152
YM200A1G-100 Cap
(W)		 60 / 15291 19522 23001 27096 31850
50 13659 16760 22033 26396 31212 36545
40 17102 2089o 25230 29998 35073 40535
30 19393 23420 27846 32560 37450 42603
Power
(W)		 60 / 9971 10457 10872 11257 11658
50 8122 8521 8854 9162 9491 9882
40 6918 7203 7470 7761 8121 8592
30 5829 609o 6379 6742 7221 7860
YM210A1G-100 Cap
(W)		 60 / 15750 20107 23691 27908 32805
50 14069 17262 22694 27188 32148 37641
40 17615 21517 25987 30898 36125 41751
30 19975 24122 28681 33537 38574 43881
Power
(W)		 60 / 10270 10771 11198 11595 12007
50 8366 8777 9119 9437 9775 10179
40 7125 7419 7694 7994 8364 8849
30 6004 6272 6570 6944 7437 8096
YSM235A1G-100 Cap
(W)		 60 / 17762 22677 26718 31475 36997
50 15866 19468 25594 30662 36256 42451
40 19866 24266 29307 34846 40741 47086
30 22528 27205 32346 37822 43503 49488
Power
(W)		 60 / 11930 12512 13007 13469 13948
50 9718 10196 10593 10962 11355 11824
40 8277 8618 8938 9286 9716 10280
30 6975 7286 7632 8066 8639 9404
YSM260A1G-100 Cap
(W)		 60 / 20079 25635 30203 35580 41823
50 17936 22008 28932 34662 40985 47988
40 22457 27432 33130 39391 46055 53227
30 25466 30753 36565 42755 49177 55943
Power
(W)		 60 / 13486 14144 14704 15226 15767
50 10985 11526 11975 12392 12836 13366
40 9356 9743 10103 10497 10983 11620
30 7884 8236 8628 9118 9766 10630

Capacity @ 20°C Return Gas Temperature, No Sub Cooling

Capacity @ 11.1°C Super Heat, No Sub Cooling





Specifications/R404A
Model

YM34E2

G-102

YM43E2

G-102

YM49E2

G-102

YM70F2

G-100

YM34E1

G-100

YM43E1G-100

YM49E1

G-100

YM70E1

G-100

YM86E1

G-100

YM102E1

G-100
Electricity 220V/50Hz/1P 380-420V/50Hz/3P
Power in Horse Power(HP) 2 2.5 3 4 2 2.5 3 4 5 6
Displacement (Mᵌ/H) 5.8 7.3 8.1 11.8 5.8 7.3 8.1 11.8 14.5 17.1
Refrigerant R404A
Capacity 3560 4250 4840 6920 3560 4250 4840 6920 8500 10100
Powcr in Walt (w) 1958 2254 2550 3601 1920 2210 2500 3530 4250 5050
Running Current (A) 9.8 11.3 11.8 16.9 3.5 4.8 5.1 7 8 9.4
COP (WW) 1.82 1.89 1.9 1.92 1.85 1.92 1.94 1.96 2 2
LPA(A) 76 76 76 109 22 45 45 60 60 65
MOC(Ay) 16.2 17.2 19 28.1 5.2 6.4 6.9 10.3 12.2 14.3
Crankcase Heater (W) 70
DiechargeTube(OD) 1/2
Suction Tube(OD) 7/8
Length (L) 253
Wdth (w) 239.4
Height (H) 437 482
Feet Dimensions (Hole) 190X190(8.5)
Oil Type POE
Initial Chargc Volurnc(L) 1.4 1.6
RechargeVolume(L) 1.25 1.45
High Side 3.2
Low Side 2
Weight 31 31 31 33 29 30 30 31 31 40



Model YM125E1G-100 YM132F1G-100 YM158F1G-100 YM182E1G-100 YM200E1G-100 YM210E1G-100 YSM235E1G-100 YSM260E1G-100
Electricity 380-420v/50Hz/3P
Power in Horse Power(HP) 7 8 9 10 12 13 14 15
Displacement (Mᵌ/H) 20.1 21.4 25.3 29.1 32.9 34.3 37.7 42.5
Refrigerant R404A
Capacity (w) 12240 12893 15842 17856 19536 20544 23218 25688
Powcr in Watt (W) 6070 6330 7765 8692 9510 9950 11900 13150
Running Current (A) 11.8 12.1 13.6 15.5 16.3 16.9 21.5 23
COP (W/W) 2.02 2.04 2.04 2.05 2.05 2.06 1.95 1.95
LRA(A) 117 117 117 121 121 121 148.5 148.5
MOC(A) 17.5 18.4 21 23.6 26.5 27.6 28.9 32.8
Crankcase Heater (W) 90 75
DiechargeTube(OD) 7/8
Suction Tube(OD) 1 1/8 1 3/8
Length (L) 262.7 318
Wdth (w) 245.4 309
Height (H) 525.7 602
Feet Dimensions (Hole) 190× 190(8.5)
Oil Type POE
Initial Chargc Volurnc(L) 2.7 3
RechargeVolume(L) 2.6 2.8
High Side 3.2
Low Side 2
Weight 53 53 53 54 54 54 90 90

E.T. -6.7°C, C.T. 48.9°C, R.G. 4.4°C, No Subcooling



Scroll Freezing Cold Storage Compressor R404A Refrigerant 5HP 220v380v460v 3ph 50hz Cryogenic Refrigeration Compressor 5



Capacity
Model C.T.
(℃)		 E.T.(℃)
-30 -25 -20 -15 -10 -5 0 5 10
YM34E2G-102 Cap
(W)		 60 / / 1654 2185 2520 3133 4003 5110 6433
50 1520 1624 1883 2369 3061 3938 4981 6168 7480
40 1612 2001 2637 3408 4293 5271 6323 7428 8565
30 2043 2829 3679 4571 5485 6401 7298 8157 8955
Power
(W)		 60 / / 2341 2479 2548 2572 2578 2589 2631
50 1599 1805 1917 1960 1959 1940 1926 1944 2017
40 1337 1440 1475 1467 1440 1419 1429 1496 1644
30 1059 1104 1105 1088 1078 1099 1177 1336 1602
YM43E2G-102 Cap
(W)		 60 / / 2068 2732 3150 3916 5004 6387 8041
50 1900 2030 2354 2961 3826 4923 6226 7710 9350
40 2015 2501 3297 4260 5366 6589 7904 9285 10706
30 2553 3537 4599 5714 6857 8001 9123 10196 11194
Power
(W)		 60 / / 2870 3039 3124 3154 3161 3175 3226
50 1961 2213 2361 2403 2403 2379 2362 2383 2473
40 1639 1766 1809 1799 1765 1740 1753 1835 2016
30 1299 1354 1355 1334 1321 1347 1443 1638 1964
YM49E2G-102 Cap
(W)		 60 / / 2252 2975 3430 4264 5448 6955 8756
50 2069 2211 2563 3224 4166 5360 6779 8396 10182
40 2194 2724 3590 4639 5843 7175 8606 10110 11658
30 2780 3851 5007 6222 7466 8713 9934 11102 12189
Power
(W)		 60 / / 3110 3294 3385 3418 3425 3440 3496
50 2125 2398 2547 2604 2603 2577 2559 2583 2680
40 1776 1914 1960 1949 1913 1885 1899 1988 2185
30 1408 1467 1468 1446 1432 1460 1563 1775 2128
YM70E2G-100 Cap
(W)		 60 / / 3217 4249 4901 6092 7783 9935 12509
50 2956
