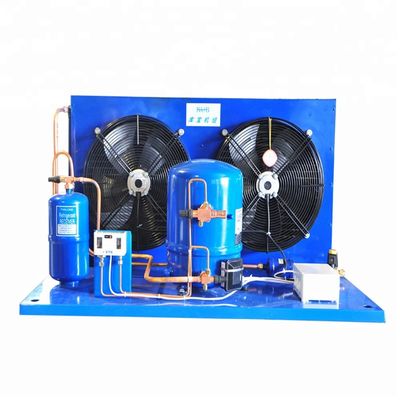

NTZ108 5hp Freezer Cold Room Condensing Unit Blue Color

Place of Origin Shanghai, China
Brand Name KUB
Certification CE
Model Number NTZ108
Minimum Order Quantity 1
Packaging Details Pallet packaging
Delivery Time 7
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Piece/Pieces per Year
Product Details
Condition New Type Condenser
Brand Name Danfoss After-sales Service Provided Online Support, Overseas Third-party Support Available
Refrigerant R-404a Product Name Cold Room Condensing Unit
Color Blue Applicable Industries Hotels, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Printing Shops
Place Of Origin China Certification Ce
Warranty 1 Year Compressor Electric Compressor
Voltage 380V
High Light

5hp Freezer Cold Room Condensing Unit

,

Blue Color Cold Room Condensing Unit

,

Hotels Cold Room Condensing Unit

Leave a Message
Product Description

Packaging & Delivery

Selling Units:
Single item
Single package size:
150X120X100 cm
Single gross weight:
200.000 kg
Package Type:
wooden
Lead Time:
Quantity(Pieces) 1 - 1 2 - 8 >8
Est. Time(days) 7 15 To be negotiated


NTZ108 5hp refrigeration equipment freezer cold room condensing unit NTZ108







NTZ108 5hp Freezer Cold Room Condensing Unit Blue Color 0NTZ108 5hp Freezer Cold Room Condensing Unit Blue Color 1

Technical parameters



Unlt Model Power Coollng Capacity Air Condenscr Evaporating Temperaturer (℃) Connection Spec.(mm) Dlmenslon (mm)
HP W Air Flow (m³/h) Fan Dia (mm) Power 50/60(Hz) -20 -15 -10 -5 0 5 10 Inlet Outlet AxBxC
KUB-MGM28 2.5 4700 3000 1x400 380V         6330 7720 9280 12 10 600x700x575
KUB-MGM36 3 6010 2*1800 2x350 380v 3070 4110 5300 6630 8020 9710 11600 16 10 600x700x575
KUB-MGM50 4.2 7400 2*3000 2x400 380V 3740 4950 6430 8240 10200 12800 15900 22 12 1010x710x575
KUB-MGM64 5.3 9780 2*3000 2x400 380v 4710 6400 7520 10750 13300 16500 21100 22 12 1050x710x675
KUB-MGM80 6.7 12380 2*4500 2x450 380v 6000 8150 10650 13530 16600 20400 24700 28 16 1050x710x775
KUB-MGM100 8.3 14340 4*3000 4x400 380v 7180 9700 12700 16260 19900 24700 30400 28 16 1250x810x875
KUB-MGM125 10 19190 4*3000 4x400 380v 9800 13000 16860 21380 26100 32200 39300 28 16 1250x810x980
KUB-MGM160 13.3 24090 4*3000 4x400 380v 12460 16430 21190 26830 32800 40500 49500 28 16 1250x810x1200
KUB-FH22-MT28H 2.5 4700 3000 1x400 380v 2190 3030 3660 4700 5890 7220 8720 12 10 700x600x580
KUB-FH28-MT36H 3 6010 2*1800 2x350 380v 2890 3950 4710 6010 7470 9090 10900 16 10 1050x710x530
KUB-FH42-MT50H 4 7400 2*3000 2x400 380v 3530 4740 5680 7400 9470 11940 14860 22 12 1050x710x580
KUB-FH49-MT64H 5 9780 2*3000 2x400 380V 4100 5790 7570 9780 12370 15370 18830 22 12 1050x710x580
KUB-FH60-MT80H 6.7 12380 2*4500 2x450 380V 5380 7530 9670 12380 15500 19060 23110 22 12 1250x710x580
KUB-FH80-MT100H 8 14340 4*3000 4400 380v 6250 8750 11010 14340 18270 22870 28190 28 16 1010x810x980
KUB-FH100-MT125H 10 19190 4*3000 4x400 380v 8960 12100 14990 19190 24120 29880 36540 28 16 1010x810x1280
KUB-FH130-MT160H 13 24090 4*3000 4x400 380v 11500 15400 18850 24090 30290 37560 46000 28 16 1010x810x1280
KUB-FH18-MTZ28M 2.5 2730 3000 1x400 380v   2160 3110 4220 5520 7030 8770 12 10 700x600x580
KUB-FH22-MTZ36M 3 3560 3000 1x400 380v   3270 4400 5710 7200 8920 10900 16 10 1050x710x530
KUB-FH33-MTZ50M 4 4280 2*3000 2x400 380v   3880 5440 7330 9570 12200 15300 22 12 1050x710x580
KUB-FH42-MTZ64M 5 5690 2*3000 2x400 380v   5020 7060 9490 12400 15700 19600 22 12 1050x710x580
KUB-FH49-MTZ80M 6.7 7330 2*3000 2x400 380v   6850 9380 12400 15800 19900 24500 22 12 1050x710x680



Air cooled Power Evaporating Tempi (℃) Power 50/60(Hz) Evaporating Temperaturer (℃) Connection Spec.(mm) Dlmenslon (mm)
-10 -15 -20 -25 -30 -35 -40 Inlet Outlet AxBxC
KUB-FH-NTZ048-L 2 2028 3000 1x400 380v 2893 2252 1711 1527 879 568 312 10 16 600x600x580
KUB-FH-NTZ068-L 3 2993 3000 1x400 380v 4537 3480 2605 1890 1313 853 492 10 16 600x600x580
KUB-FH-NTZ096-L 4 3962 2*1800 2x350 380v 6183 4669 3442 2463 1697 1111   12 22 600x650x480
KUB-FH-NTZ108-L 4.5 4592 2*1800 2x350 380v 7015 5447 4128 3031 2127 1389   12 22 600x710x530
KUB-FH-NTZ136-L 5.6 5843 2*3000 2x400 380v 8829 6871 5244 3905 2816 1941   12 22 600x710x580
KUB-FH-NTZ215-L 9 9155 4*3000 4x400 380v 13538 10565 8054 5955 4214 2787 1627 16 28 600x810x930
KUB-FH-NTZ271-L 11.3 11771 4*3000 4x400 380v 18174 14307 11052 8338 6097 4264 2776 16 28 600x810x980
