Cold Air Chiller Semi Hermetic Compressor Cold Air Machine 2HP
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Applicable Industries | Hotels, Garment Shops, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Food & Beverage Shops, Other | Local Service Location | None |
---|---|---|---|
Video Outgoing-inspection | Not Available | Marketing Type | Ordinary Product |
Core Components | Engine, Pump | Type | Air-cooled |
Brand Name | KUB | Certification | CE |
After-sales Service Provided | Video Technical Support, Online Support | Key Selling Points | Competitive Price |
Application | Industrial Cooling Solutions | Refrigerant | R-404a |
After Warranty Service | Video Technical Support, Online Support | Showroom Location | None |
Machinery Test Report | Not Available | Warranty Of Core Components | Not Available |
Condition | New | Place Of Origin | China |
Voltage | 380V 50hz | Warranty | 1 Year |
Working Temperature Range | 10~ -40degree | Product Name | Air Cooled Water Chiller |
Power Supply | 380V/3ph /50Hz | ||
Highlight | R404a Water Cooled Condensing Units,Cold Air Machine 2HP,50Hz Water Cooled Condensing Units |
Product Description
Packaging & Delivery

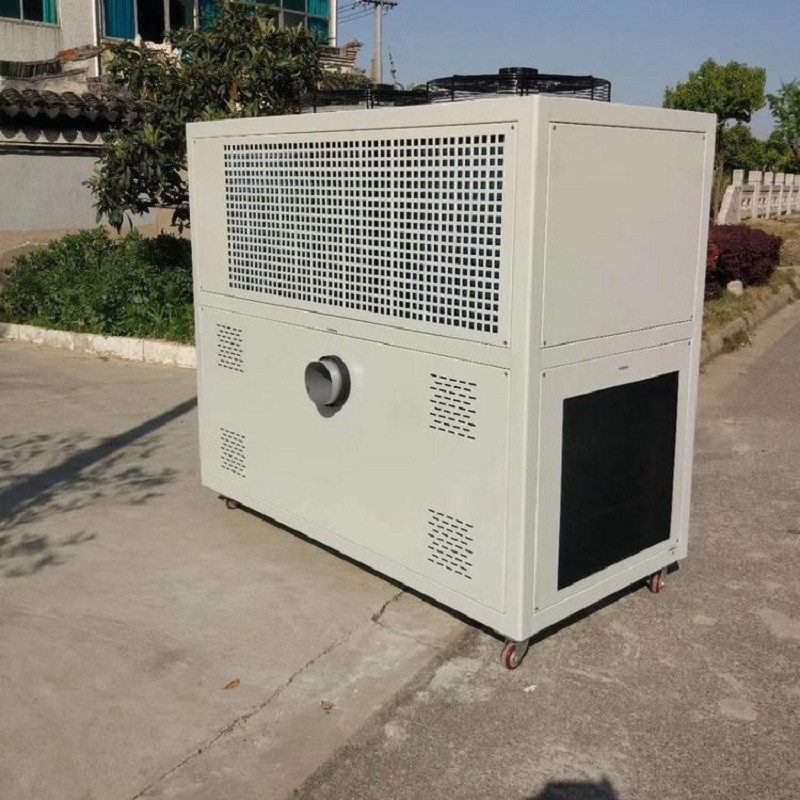

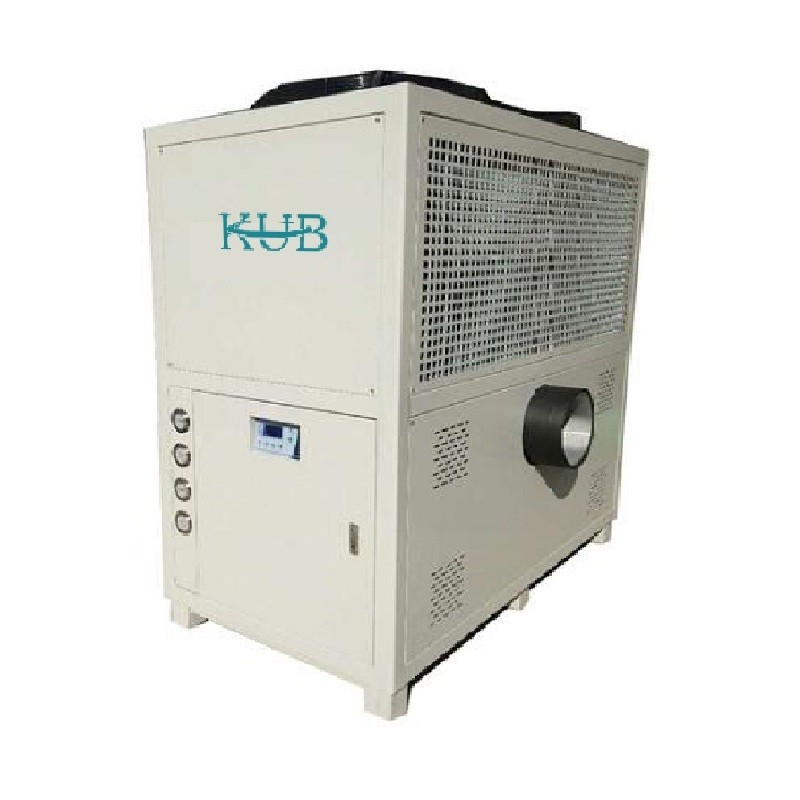

kub OEM -40degree cold air chiller semi hermetic compressor cold air machine and 2HP to 50HP chiller
Model | 2HP | 3HP | 4HP | 5HP | 8HP | 10HP | ||
Cooling capacity | kw | 5.6 | 8.4 | 11.2 | 14 | 22.4 | 28 | |
Kcal/hr | 4816 | 7226 | 9632 | 12040 | 24080 | |||
Voltage | 1N-220V-50HZ | 3N-380V-50HZ | ||||||
Margin blast pressure | Pa | 300 | 300 | 300 | 500 | 500 | 500 | |
Noise | dBA | 68 | 68 | 68 | 72 | 72 | 72 | |
Compressor | KW | 1.5 | 2.25 | 3.0 | 3.75 | 3.0*2 | 3.75*2 | |
Gross power | KW | 2.1 | 2.9 | 4.1 | 5.1 | 7.9 | 9.8 | |
refrigerant | R22 | |||||||
Evaporator | Type | Copper tube sleeve aluminum fin | ||||||
Condenser (hot air) | The cooling air volume | m³/h | 2000 | 3000 | 4000 | |||
Type | Copper tube sleeve aluminum fin | |||||||
Air blower (cold air) | Air output | m³/h | 400 | 600 | 800 | 1000 | 1600 | 2000 |
The outlet diameter | mm | 100 | 100 | 125 | 125 | 150 | 150 | |
Electric motor | KW | 0.37 | 0.37 | 0.75 | 0.75 | 1.1 | 1.5 | |
Type | centrifugal fan | |||||||
Filter | The return air use nylon filter (without air duct) | |||||||
Temperature of air out | ℃ | 5-20℃(adjustable range, movement deviation +3℃) standard for side air outlet, if the top air outlet and special temperature requirements should be specified | ||||||
Dimension | Length | mm | 850 | 1000 | 1000 | 1200 | 1320 | 1400 |
Width | mm | 500 | 600 | 600 | 600 | 750 | 780 | |
Height | mm | 800 | 880 | 880 | 960 | 1450 | 1550 | |
Weight | kg | 80 | 110 | 160 | 180 | 300 | 320 | |
Model | 12HP | 16HP | 20HP | 30HP | 40HP | 50HP | ||
Cooling capacity | kw | 34 | 42 | 56 | 84 | 112 | 140 | |
Kcal/hr | 28896 | 36120 | 48160 | 72240 | 96320 | 120400 | ||
Voltage | 3N-380V-50HZ | |||||||
Margin blast pressure | Pa | 500 | 500 | 550 | 550 | 600 | 650 | |
Noise | dBA | 72 | 72 | 75 | 75 | 75 | 75 | |
Compressor | KW | 4.5*2 | 5.5*2 | 7.5*2 | 7.5*3 | 7.5*4 | 9*4 | |
Gross power | KW | 10.5 | 11.2 | 18 | 26.5 | 35.5 | 43.5 | |
refrigerant | R22 | |||||||
Evaporator | Type | Copper tube sleeve aluminum fin | ||||||
Condenser (hot air) | The cooling air volume | m³/h | 12000 | 15000 | 20000 | 30000 | 40000 | 50000 |
Type | Copper tube sleeve aluminum fin | |||||||
Air blower (cold air) | Air output | m³/h | 2400 | 3000 | 4000 | 6000 | 8000 | 10000 |
The outlet diameter | m | 180 | 180 | 200 | 200 | 200 | 200 | |
Electric motor | KW | 1.5 | 2.2 | 3.0 | 4 | 5.5 | 7.5 | |
Type | centrifugal fan | |||||||
Filter | The return air use nylon filter (without air duct) | |||||||
Temperature of air out | ℃ | 5-20℃(adjustable range, movement deviation +3℃) standard for side air outlet, if the top air outlet and special temperature requirements should be specified | ||||||
Dimension | Length | mm | 1500 | 1650 | 1800 | 1830 | 2100 | 2300 |
Width | mm | 850 | 850 | 1300 | 1300 | 1500 | 1700 | |
Height | mm | 1650 | 1650 | 1900 | 1900 | 1900 | 1900 | |
Weight | kg | 380 | 420 | 650 | 700 |
