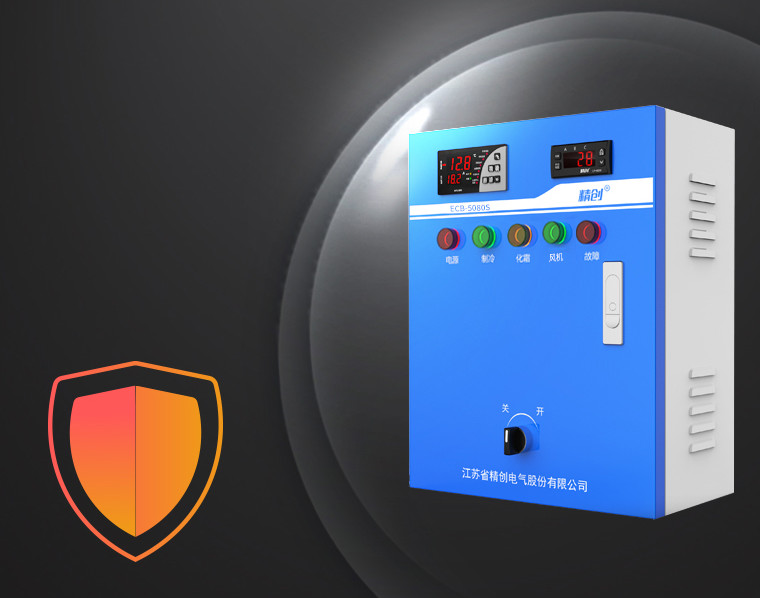

ECB-5080S Ecb Refrigerator Electric Cabinet Box 10HP Multi Function
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Place Of Origin | Shanghai, China | Model Number | ECB-5080S |
|---|---|---|---|
| Name | Elitech Temperature Controller | Brand | Elitech |
| Condition | New | Brand Name | Elitech |
| Temperature Controller | Green | Product | Temperature Controller |
| After-sales Service Provided | Overseas Third-party Support Available | Power | 5HP-10HP |
| High Light | Ecb Refrigerator Electric Cabinet Box,ECB-5080 Electric Cabinet Box,Refrigerator Electric Cabinet Box 10HP |
||
Product Description
ECB-5080 Electric control box and ecb refrigerator electric control box
The electric control box is a product specially designed by our company for the refrigeration unit. Dual sensor control, moderate function, comprehensive protection, convenient operation, stable and reliable performance, is a multi-function electronic control box with high cost performance.
Technical Parameters:
1, Power supply: three-phase five-wire (or three-phase four-wire) 380VAC±10% /50Hz
2, Measure temperature range: -40 ~ 50 ° C
3, Measurement temperature control accuracy: ±1 °C
4, Compressor delay protection time: adjustable from 0 to 9 minutes
5, Control the maximum capacity of the compressor fan (KW): 5.5 11 15
6, Control the maximum capacity of the defroster (KW): 5.5 7.5
7, Double menu management mode: user menu and manager menu settings, ordinary users only need to
Two settings for temperature and hysteresis;
8, Double temperature sensor, temperature control of compressor and defroster, respectively, safer and more energy efficient;
9, Single point temperature adjustment, back temperature control, more convenient operation
10 ,Compressor comprehensive protection function
11, With automatic and manual control
12, Sensor fault and over temperature alarm function
13, Compressor delay adjustable
Size: 300*400*150mm
Functional characteristics
◆Adopt Jingyi controller MTC-5060, double sensor temperature measurement, which can realize independent control of compressor and defrost;
◆The compressor start-up delay is adjustable;
◆ Independent research and development of motor protectors;
◆Current display; when the sensor fails, the compressor will start and stop proportionally; .
◆Easy to operate, stable and reliable performance.
Big data analysis
Through the big data analysis of equipment operation on the cloud platform, the working parameters of the equipment are reasonably set to optimize the equipment operation, make full use of peak and valley electricity consumption, reduce energy consumption, improve economic benefits, and save energy and money.
Multiple protections
It has the functions of phase loss protection, phase sequence protection, three-phase unbalance, overload protection, inverse time protection, and unit pressure protection.
