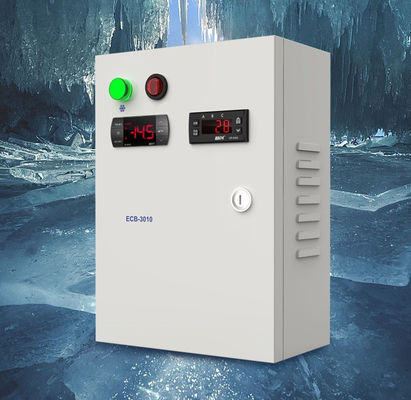

ECB-3010 Cold Storage Parts 5hp Electric Control Box IP67 Cold storage electric control box Refrigeration unit

Place of Origin Shanghai, China
Brand Name KUB
Certification CE
Model Number ECB-3010
Minimum Order Quantity 1
Packaging Details Carton
Delivery Time 15
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Piece/Pieces per Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Place Of Origin Shanghai, China Model Number ECB-3010
Type Control Box Material Elitech Electric Control Box
Certificate CE Application Outdoor Electronic Equipment
Brand Name KUB Protection Level IP67
External Size Standard Color Gray
Product Name New Original Cold Room Control Box Size Customer's Requst
High Light

ECB-3010 Cold Storage Parts

,

5hp Electric Control Box

,

IP67 Cold Storage Electric Control Box

Leave a Message
Product Description
ECB-3010 cold room parts 5hp elitech ecb electric control box
ECB-30 electronic control box
Features:
ECB-30 electric control box is a company designed for refrigeration unit optimization design of a product. Dual sensor settings, can control three-way load, full-featured, comprehensive protection, easy operation, stable and reliable performance, with excellent price.
Technical Parameters:
Power: three-phase five-wire (or three-phase four-wire) 380VAC ± 10% / 50Hz
temperature measurement and control range: -40 ~ +50 ℃;
temperature measurement and control precision: ± 0.5 ℃ -10 ~ +10 ℃, the rest ± 1 ℃;
compressor delay protection time: 0 ~ 9 minutes adjustable;
control the maximum capacity of the compressor (KW): 5.5 11 15
control the maximum capacity of fans (KW): 4
control the maximum capacity of frost (KW): 5.5 7.5 11

Three-way load control, can be achieved on the compressor, fan, defroster separate control;
Dual temperature sensor, the compressor and the defroster were temperature control, safer, energy saving;
hot air and electric two defrosting mode;
compressor comprehensive protection function;
automatic and manual control functions
sensor failure and over-temperature alarm function external;
adjustable delay compressor.

Professional refrigeration control

ECB-3010 Cold Storage Parts 5hp Electric Control Box IP67 Cold storage electric control box Refrigeration unit 0


Adopt touch thermostat EK-3010
The touch button has a high waterproof level

ECB-3010 Cold Storage Parts 5hp Electric Control Box IP67 Cold storage electric control box Refrigeration unit 1
No need for menu one-button setting, easy to operate,
Cost-effective
ECB-3010 Cold Storage Parts 5hp Electric Control Box IP67 Cold storage electric control box Refrigeration unit 2


Single Refrigeration Control Output Compressor Individual Control
ECB-3010 Cold Storage Parts 5hp Electric Control Box IP67 Cold storage electric control box Refrigeration unit 3
With phase loss protection, phase sequence protection,
Three-phase unbalance protection function
ECB-3010 Cold Storage Parts 5hp Electric Control Box IP67 Cold storage electric control box Refrigeration unit 4

Compressor comprehensive protection, time delay adjustableECB-3010 Cold Storage Parts 5hp Electric Control Box IP67 Cold storage electric control box Refrigeration unit 5
