xModel Number | 240RA-12T7T | Refrigerant | R22/R404A/R507 |
---|---|---|---|
Product Name | Solenoid Valve | Description | Refrigerant Solenoid Valve |
Weight (KG | 2 | ||
Highlight | KP61 060L1100 Thermostat Temperature Controller,Thermostat Control Cold Storage Parts,Cold Storage Thermostat Temperature Controller |
100RB 200RA 240RA two way solenoid valve Normally Closed Solenoid Valve Refrigerant solenoid valve

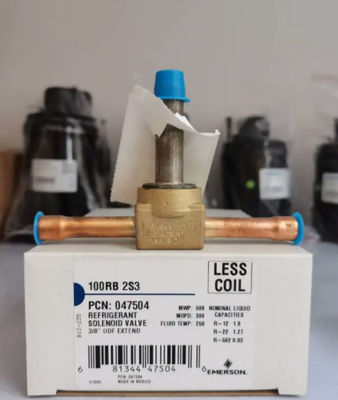

Nomenclature example: 100RB 2F2 VLC
100R | B | 2 | F | 2 | VLC |
Valve Series | Design Series |
Port Size (in 1/16”) |
Connection Type F= SAE S=ODF P=NPTF |
Connection Size (in 1/8”) |
Coil* |





200RB Solenoid Valves & Coils | ||||||||||||||||||||

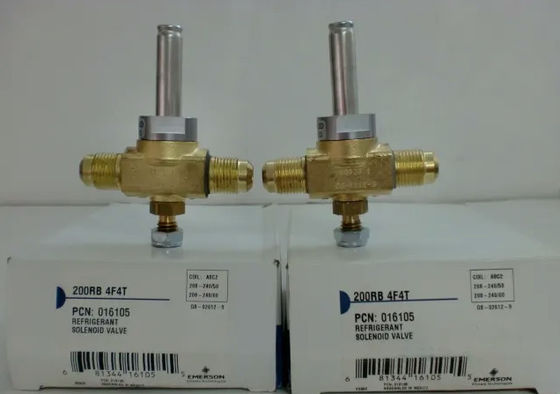

The 200RB is a pilot-operated, 2-way, normally closed valve. 200RB valves are used for liquid, discharge, or suction gas refrigerant service. Features • One coil fits all valve sizes • Extended ends for easy installation (standard) • Long-life molded coils • PTFE O-ring for superior external sealing Options • Available in 7 orifice sizes • Manual stem or mounting stud • Bi-Flow operation-conversion either factory assembled or with kit (except 200RB 7 & 9 ) Nomenclature example: 200RB 4T3M VLC |
Specifications • Maximum fluid temperature: 250°F • Maximum working pressure: 500 psig • Minimum operating pressure drop: 2 psi • MOPD: 300 psig • UL/CUL file number: MP604 NOTE: Mounting enclosing tube more than 90o off vertical up position is not recommended. |
|||||||||||||||||||
200R | B | 4 | T | 3 | M | VLC | ||||||||||||||
Valve Series | Design | Port Size | Connection Type | Connection Size | Coil* | |||||||||||||||
Series | (in 1/16”) | F = SAE | (In 1/8”) | M = manual stem | ||||||||||||||||
S = ODF | T = mounting stud | |||||||||||||||||||
P = NPTF | (optional) | |||||||||||||||||||
T = Copper Extended Ends | ||||||||||||||||||||
*NOTE: Valves are shipped without the solenoid coils (VLC = Valve Less Coil). See coil assemblies for availibility. | ||||||||||||||||||||
Ordering Information and Nominal* Liquid Capacity Table – Tons (kW) | ||||||||||||||||||||
PCN | Description | Connection Size | R-12 | R-134a | R-22 | R-407C | R-404A/R-507 | R-502 | ||||||||||||
Standard Valve |
Mounting Stud1 |
Manual Stem2 |
||||||||||||||||||
053104 | - - | N/A | 200RB 2 F 2 | 1/4 SAE | 2.3 (8.1) | 2.7 (9.5) | 3.6 (12.7) | 3.4 (12.0) | 1.9 (6.7) | 1.9 (6.7) | ||||||||||
062611 | - - | N/A | 200RB 2 F 3 | 3/8 SAE | ||||||||||||||||
053105 | 053236 | N/A | 200RB 2 T 2 | 1/4 ODF | ||||||||||||||||
053106 | 054170 | N/A | 200RB 2 T 3 | 3/8 ODF | ||||||||||||||||
052725 | - - | - - | 200RB 3 F 2 | 1/4 SAE | 3.0 (10.6) | 3.6 (12.7) | 4.8 (16.9) | 4.5 (15.8) | 2.5 (8.8) | 2.6 (9.1) | ||||||||||
052726 | 056438 | - - | 200RB 3 F 3 | 3/8 SAE | ||||||||||||||||
052727 | 055855 | - - | 200RB 3 F 4 | 1/2 SAE | ||||||||||||||||
049608 | - - | - - | 200RB 3 T 2 | 1/4 ODF | ||||||||||||||||
049609 | 049585 | 065620 | 200RB 3 T 3 | 3/8 ODF | ||||||||||||||||
049692 | - - | 065621 | 200RB 3 T 4 | 1/2 ODF | ||||||||||||||||
047506 | 047508 | 047507 | 200RB 4 F 3 | 3/8 SAE | 5.0 (17.6) | 6.0 (21.1) | 8.0 (28.1) | 7.5 (26.4) | 4.2 (14.8) | 4.2 (14.8) | ||||||||||
059728 | 047510 | 047509 | 200RB 4 P 3 | 3/8 NPTF | ||||||||||||||||
047511 | 047513 | 047512 | 200RB 4 S 3 | 3/8 ODF X 1/2 ODM | ||||||||||||||||
047516 | 047515 | 047514 | 200RB 4 S 4 | 1/2 ODF X 5/8 ODM | ||||||||||||||||
047517 | 049162 | 049186 | 200RB 4 T 3 | 3/8 ODF | ||||||||||||||||
047518 | 049163 | 049187 | 200RB 4 T 4 | 1/2 ODF | ||||||||||||||||
058950 | 058045 | 056518 | 200RB 4 T 5 | 5/8 ODF | ||||||||||||||||
047519 | 047521 | 047520 | 200RB 5 F 4 | 1/2 SAE | 5.2 (18.3) | 6.2 (21.8) | 8.2 (28.8) | 7.7 (27.1) | 4.3 (15.1) | 4.5 (15.8) | ||||||||||
059729 | 047523 | 047522 | 200RB 5 F 5 | 5/8 SAE | ||||||||||||||||
047524 | 047526 | 047525 | 200RB 5 S 4 | 1/2 ODF X 5/8 ODM | ||||||||||||||||
049201 | 047528 | 047527 | 200RB 5 S 5 | 5/8 ODF | ||||||||||||||||
061227 | 054323 | - - | 200RB 5 T 3 | 3/8 ODF | ||||||||||||||||
057206 | 049164 | 049188 | 200RB 5 T 4 | 1/2 ODF | ||||||||||||||||
059730 | 049165 | 049189 | 200RB 5 T 5 | 5/8 ODF | ||||||||||||||||
059731 | 047531 | 047530 | 200RB 6 F 4 | 1/2 SAE | 6.0 (21.1) | 7.2 (25.3) | 9.5 (33.4) | 8.9 (31.3) | 5.0 (17.6) | 5.1 (17.9) | ||||||||||
059732 | 047534 | 047533 | 200RB 6 F 5 | 5/8 SAE | ||||||||||||||||
059733 | 047536 | 047535 | 200RB 6 P 3 | 3/8 NPTF | ||||||||||||||||
047537 | 047539 | 047538 | 200RB 6 S 4 | 1/2 ODF X 5/8 ODM | ||||||||||||||||
047540 | 047542 | 047541 | 200RB 6 S 5 | 5/8 ODF | ||||||||||||||||
047544 | 047546 | 047545 | 200RB 6 T 4 | 1/2 ODF | ||||||||||||||||
056766 | 047548 | 047547 | 200RB 6 T 5 | 5/8 ODF | ||||||||||||||||
064037 | - - | - - | 200RB 7 S 5 | 5/8 ODF X 7/8 ODM | 10.8 (38.0) | 12.7 (44.7) | 17.0 (59.8) | 16.2 (57.0) | 9.1 (32.0) | 9.2 (32.4) | ||||||||||
064062 | - - | - - | 200RB 7 T 4 | 1/2 ODF | ||||||||||||||||
064063 | 064562 | 064267 | 200RB 7 T 5 | 5/8 ODF | ||||||||||||||||
064282 | 064284 | 064283 | 200RB 7 T 7 | 7/8 ODF | ||||||||||||||||
064762 | 064764 | 064763 | 200RB 9 T 5 | 5/8 ODF | 19.6 (68.9) | 23.6 (83.0) | 30.5 (107.3) | 29.0 (102.0) | 16.4 (57.7) | 16.2 (57.0) | ||||||||||
064645 | 064766 | 064765 | 200RB 9 T 7 | 7/8 ODF | ||||||||||||||||
064767 | 064769 | 064768 | 200RB 9 T 9 | 1 1/8 ODF | ||||||||||||||||
1 Add “T” to the end of description for Mounting Stud 2 Add “M” to the end of the description for Manual Stem |
Capacities based on 100°F liquid and 40°F saturated evaporator per ARI standard 760-87. All ratings are based on largest connection size. *See Extended Capacity Tables for ratings at a wide range of conditions. |
The 240RA is a 2-way, normally closed diaphragm valve. 240RA valves are used for liquid, suction, and hot gas service.
Features
• One coil fits all valve sizes
• Can be brazed into the line without disassembly
• PTFE diaphragm for high temperature applications
• Extended ends for easy installation (standard)
• Long-life molded coils
• Mounting stud models can be field converted to
manual stem
Options
• Manual stem or mounting stud
Nomenclature example: 240RA 8T5M VLC
Specifications
• Maximum fluid temperature: 250°F
• Maximum working pressure: 500 psig
• MOPD: 300 psig
• UL/CUL file number: MP604
NOTE: Mounting enclosing tube more than 90o off vertical up position is not recommended.
240R | A** | 8 | T | 5 | M | VLC |
Valve Series | Design Series |
Port Size (in 1/16”) |
Connection Type T = copper entended ends |
Connection Size (in 1/8”) |
M = manual stem T = mounting stud (optional) | Coil* |
* NOTE: Valves are shipped without the solenoid coils (VLC = Valve Less Coil). See coil assemblies for availability.
**NOTE: Letter “H” is no longer used since all 240RA valves now contain the high temperature diaphragm for hot gas.
Ordering Information and Nominal* Liquid Capacity Table – Tons (kW)
PCN | Description | Connection Size | R-12 | R-134a | R-22 | R-407C | R-404A/R-507 | R-502 | ||
Standard Valve |
Mounting Stud1 |
Manual Stem2 |
||||||||
060374 | 040846 | 040845 | 240RA 8 T 5 | 5/8 ODF | 12.2 (43.4) | 14.8 (52.5) | 15.6 (55.2) | 14.8 (52.4) | 8.4 (29.5) | 10.1 (35.0) |
060375 | 044860 | 045753 | 240RA 8 T 7 | 7/8 ODF | ||||||
060376 | 040848 | 040847 | 240RA 9 T 5 | 5/8 ODF | 18.2 (64.6) | 22.0 (78.0) | 23.3 (82.5) | 22.1 (78.2) | 15.3 (54.2) | 15.1 (53.5) |
060377 | 043205 | 043204 | 240RA 9 T 7 | 7/8 ODF | 24.0 (85.0) | 28.9 (102.3) | 30.5 (108.0) | 29.0 (103.0) | 21.0 (71.1) | 19.8 (70.1) |
060378 | 044861 | 045752 | 240RA 9 T 9 | 1 1/8 ODF | ||||||
060379 | 040850 | 040849 | 240RA 12 T 7 | 7/8 ODF | 27.6 (97.6) | 33.2 (117.5) | 34.9 (124.0) | 33.2 (118.0) | 23.0 (81.4) | 22.7 (80.4) |
060380 | 043959 | 045549 | 240RA 12 T 9 | 1 1/8 ODF | ||||||
060381 | 042549 | 042548 | 240RA 16 T 9 | 1 1/8 ODF | 37.3 (132.0) | 55.1 (195.1) | 58.0 (205.0) | 55.2 (195.0) | 38.3 (135.0) | 37.3 (133.0) |
060382 | 044428 | 044788 | 240RA 16 T 11 | 1 3/8 ODF | ||||||
060383 | 047761 | 046636 | 240RA 20 T 11 | 1 3/8 ODF |
58.8 (208.0) |
86.8 (307.4) |
95.4 (338.0) |
90.8 (321.0) |
65.7 (230.0) |
62.0 (219.0) |
060384 | 047747 | 046637 | 240RA 20 T 13 | 1 5/8 ODF | ||||||
060385 | 054297 | 046638 | 240RA 20 T 17 | 2 1/8 ODF |
1 Add “T” to the end of description for Mounting Stud
2 Add “M” to the end of the description for Manual Stem
Capacities based on 100°F liquid and 40°F saturated evaporator per ARI standard 760-87.
*See Extended Capacity Tables for ratings at a wide range of condition
