LSLG-70WH RC2-260B-W 70HP screw compressor water cooled chillers industrial chiller

Place of Origin Shanghai, China
Brand Name HANBELL
Certification CE
Model Number RC2-260B-W
Minimum Order Quantity 1
Price Consult
Packaging Details Pallet packaging
Delivery Time 20-25days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 10000 Piece/Pieces per Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Place Of Origin Shanghai, China Model Number RC2-260B-W
Temperature 3-15°C Condition New
Warranty 1 Year Brand Name HANBELL
Voltage 380V 3PH 50HZ Horse Power 70HP
Highlight

RC-4HA Temperature Humidity Data Logger

,

IP67 LCD Display Usb Data Logger

,

Replaceable LCD Display Usb Data Logger

Leave a Message
Product Description

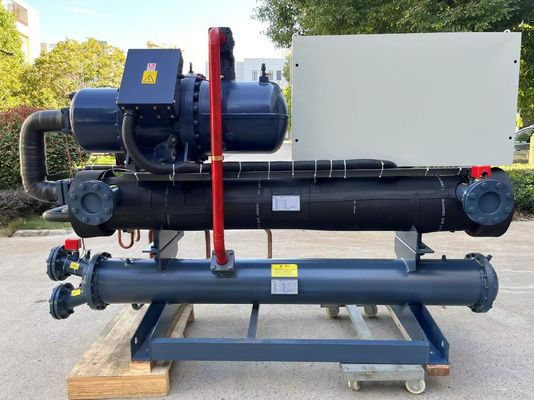

LSLG-70WH 70HP screw compressor water cooled chillers industrial chiller

LSLG-70WH 70HP screw compressor water cooled chillers industrial chiller

Chiller Features

1: The series of industrial chillers produced by our company can provide industrial freezing media (water or glycol aqueous solution) with temperatures around 7 °C and -15 °C or lower. It can be widely used in textile, chemical and machinery. , medicine, health, food, electronics and other industries.

2: Adopting international famous brand refrigeration compressors with high efficiency, low noise, low vibration and good reliability

3:The refrigeration components and control components of the unit are all made of high-quality brand-name products, which makes the unit run more reliable and safer;

4:It adopts high-efficiency shell-and-tube or high-efficiency copper tube aluminum plate condenser, which has good heat exchange effect.

5: Adopt intelligent control to ensure that the unit safety requires fully automatic adjustment operation and improve the reliability of control

6: The unit has various protections such as temperature display, setting and high and low pressure, phase loss, overload and water cut





The water-cooled screw chiller is also a kind of chiller. Because its main component uses a screw compressor, the name can be called a water-cooled screw chiller. Its freezing water temperature range is 3℃~20℃, which can be widely used in plastics, electroplating, electronics, chemicals, pharmaceuticals, printing, food processing and other industrial refrigeration processes that require frozen water, or large shopping malls, hotels, Factory, hospital and other central air-conditioning projects that need to use chilled water for central cooling.

working principle:

When the unit is cooling, the compressor sucks the low-temperature and low-pressure refrigerant in the evaporator into the cylinder, and after the compressor does work, the refrigerant vapor is compressed into a high-temperature and high-pressure gas, and enters the condenser through the exhaust pipe. The high-temperature and high-pressure refrigerant gas exchanges heat with the cooling water in the condenser, transfers the heat to the cooling water, and condenses the refrigerant gas into a high-pressure liquid. The high-pressure liquid from the condenser is throttled and depressurized by the thermal expansion valve and then enters the evaporator. In the evaporator, the low-pressure liquid refrigerant absorbs the heat of the chilled water and evaporates, which cools the chilled water and becomes the required low-temperature water. The vaporized refrigerant gas is sucked into the compressor again for compression, and then discharged into the condenser. This cycle is repeated and circulated continuously, so as to realize the cooling of the chilled water.

The chilled water from the unit enters the indoor fan coil unit, variable air volume air conditioner and other terminal devices, and exchanges heat with the convective air indoors. During this process, the water absorbs the heat of the indoor air (dissipates heat to the indoor air). And the temperature rises, and the temperature of the indoor air drops after passing through the indoor heat exchanger. Driven by the fan, it is sent into the room, thereby reducing the indoor air temperature, and the chilled water after the temperature rise re-enters the unit under the action of the pump, so cycle, so as to achieve the purpose of continuous refrigeration.



The following calibration conditions: chilled water inlet temperature 12
outlet water temperature 7 ℃, cooling water inlet water temperature 30
Model LSLG-
40WH 50WH 60WH 70WH 80WH 90WH
Cooling capacity 140 174 232 267 326 349
Voltage 3P/380V50Hz
Compressor input power 32.1 40.3 53.7 58.5 70.5 76.3
Running current 54 68 90 98 119 128
Capacity control 0-66-100%(33% Startup ) 0-50-75-100%(25% Startup )
Startup mode Y-ΔStartup
refrigerant R22
evaporator Water pipe
interface
DN50Flg DN65Flg DN80Flg DN100Flg
water flow 24 30 40 46 56 60
Water pressure
drop
37 39 42 42 45 45
condenser Water pipe
interface
DN50Flg DN65Flg DN80Flg
water flow 30 37 49 56 68 73
Water pressure
drop
38 39 43 44 46 46
size L 2400 2600 2850 3000 3000 3050
W 900 900 900 1100 1100 1100
H 1350 1450 1450 1550 1670 1770



Condensing Unit configuration list

  LSLG-70WH
Model Quantity
Compressor (Hanbell) RC2-260B-W 1
Channel steel frame   1
water condenser 80HP 1
Control box   1
Expansion valve Trae30*2 1
Shell and Tube Heat Exchanger

80HP

2 in 1 out

1
Filter drier KUB9611+D48*2 1
Solenoid valve 35mm 1
Pressure controller P830E 1
Oil gauge   2
