Delay Adjustable Cold Storage Parts STC8000H Digital Temperature Controller

  • Delay Adjustable Cold Storage Parts STC8000H Digital Temperature Controller
  • Delay Adjustable Cold Storage Parts STC8000H Digital Temperature Controller
  • Delay Adjustable Cold Storage Parts STC8000H Digital Temperature Controller
  • Delay Adjustable Cold Storage Parts STC8000H Digital Temperature Controller
  • Delay Adjustable Cold Storage Parts STC8000H Digital Temperature Controller
  • Delay Adjustable Cold Storage Parts STC8000H Digital Temperature Controller
Place of Origin Shanghai, China
Brand Name Elitech
Certification CE
Model Number STC8000H
Minimum Order Quantity 1days
Price Consult
Packaging Details Carton
Delivery Time 15days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100000 Piece/Pieces per Year
Product Details
Place Of Origin Shanghai, China Model Number STC8000H
Temperature 0 ~ 60°C Product Temperature Controller
After-sales Service Provided Overseas Third-party Support Available Condition New
Type Temperature Controller Brand Name Elitech
Temperature Controller BLACK Name Elitech Temperature Controller
Brand Elitech Certification CE
Operating Voltage 220VAC+10%/-15%, 50/60Hz
High Light

Cold Storage Parts

,

STC8000H Digital Temperature Controller

,

NTC Sensor Digital Temperature Controller
Leave a Message
Product Description

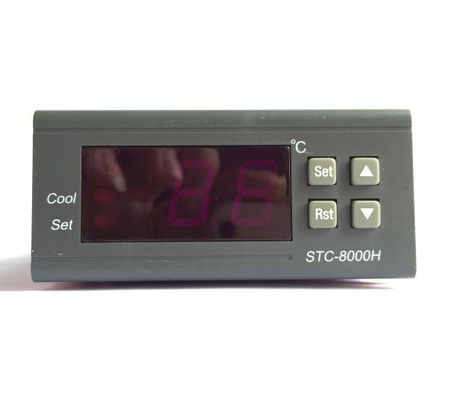

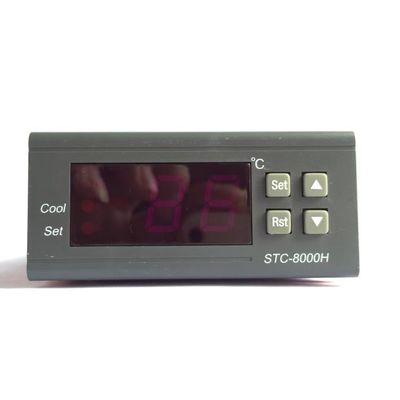

Elitech STC8000H temperature controller



Refrigeration, delay adjustable, temperature correction, over-temperature limit alarm and cancel probe failure alarm, the first power-alarm delay, waterproof panel design, adapted to high temperature cold storage, refrigeration and freezer temperature control refrigeration equipment.
Technical Parameters:

STC-8000H is a universal single-sensor temperature controller, with refrigeration, exceeding temperature limit alarm functions, Compressor delay time adjustable, after electrified exceeding temp. limit alarm delay adjustable. Suitable for refrigerant industries such as refrigerator, refrigerator car, etc.

100% brand new and high quality

  • Quantity:1pcs

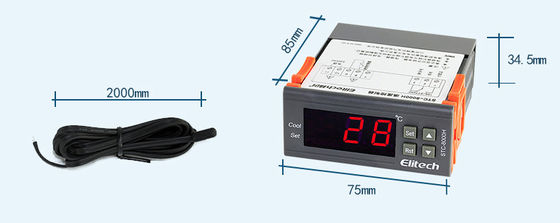

  • Front panel size: 75*34.5mm

  • Installing hole size: 71*29mm

  • Product size: 75*34.5*85mm

  • Sensor: 2 meters

  • Power supply: 220VAC+10%/-15%, 50/60Hz

  • Power consumption:<=3W degree

  • Temperature measuring range: -50degree ~99 degree

  • Temperature controlling range:-40 degree~50degree

  • Resolution: 1degree

  • Accuracy: -50degree~70degree, ±1degree, ±2degree at others refrigeration output contact capacity: 10A/277VAC, can drive single phase compressor<=1/2HP

  • Sensor: NTC

  • Operation temperature: 0 degree~60 degree

  • Safe level: IP65

  • Storage temperature: -30 degree~75 degree

  • Operation humidity: 20~85% (No condensate)

  • Color: as the pics

  • Easy and convenient to use

Package included:

1 x Digital Temperature microcomputer (Without retailing packing)

  • 1 x Cable

  • 1 x User's Manual

Elitech temperature controller

Good quality and competitive price among the same area.

Powerful production ability, quick delivery!





Through lightning surge, cycle drop and other tests to ensure reliable operation of the product in harsh environments (such as remote mountainous areas with unstable voltage, production workshops with complex electromagnetic environments, etc.).

Delay Adjustable Cold Storage Parts STC8000H Digital Temperature Controller 0



Alarm delay adjustable
After the product is powered on, the temperature alarm delay can be adjusted from 0 to 99 minutes to avoid false alarms caused by high temperature when the product is powered on for the first time.



Temperature control point. The upper and lower limit settings make the operation easier and more intuitive. User parameters and administrator parameters are set separately, and the user sets the upper and lower limits of the parameter value to avoid the loss of goods caused by improper parameter settings due to misoperation.





The alarm deviation value is adjustable, and the temperature overrun alarm deviation value is adjustable within 0~50 to meet the diverse needs of users.



Proportional start and stop
When the sensor fails, the controller controls the compressor to start and stop proportionally, effectively avoiding the risk of temperature runaway after the sensor fails.

Delay Adjustable Cold Storage Parts STC8000H Digital Temperature Controller 1



Measuring range -50℃-+99℃ Temperature control range -40℃-+50℃
Measurement accuracy ±1℃ Power supply voltage 220VAC 50HZ
Resolution 0.1℃ Installation size 71*29mm

Delay Adjustable Cold Storage Parts STC8000H Digital Temperature Controller 2Delay Adjustable Cold Storage Parts STC8000H Digital Temperature Controller 3Delay Adjustable Cold Storage Parts STC8000H Digital Temperature Controller 4Delay Adjustable Cold Storage Parts STC8000H Digital Temperature Controller 5Delay Adjustable Cold Storage Parts STC8000H Digital Temperature Controller 6Delay Adjustable Cold Storage Parts STC8000H Digital Temperature Controller 7Delay Adjustable Cold Storage Parts STC8000H Digital Temperature Controller 8Delay Adjustable Cold Storage Parts STC8000H Digital Temperature Controller 9
