5HP R404A Outdoor Refrigeration Maneurop Air Cooled refrigerating unit cold storage refrigeration Condensing Unit

Place of Origin Shanghai, China (Mainland)
Brand Name KUB
Certification CE
Model Number KUB NTZ096
Minimum Order Quantity 1 Piece/Pieces
Price negotiable
Packaging Details Plywood pallet+Plywood
Payment Terms Western Union, T/T, L/C
Supply Ability 100 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand Name Maneurop Temperature -15~-20℃
Voltage 380V/3P/50Hz Horse Power 4HP
Type Condensing Unit,Air-Cooled Refrigerant R404a
Warranty 1 Year Dimension(l*w*h) 900*650*480mm
High Light

Outdoor Air Cooled Condensing Unit

,

Refrigeration Air Cooled Condensing Unit

,

R404A Air Cooled Condensing Unit

Leave a Message
Product Description

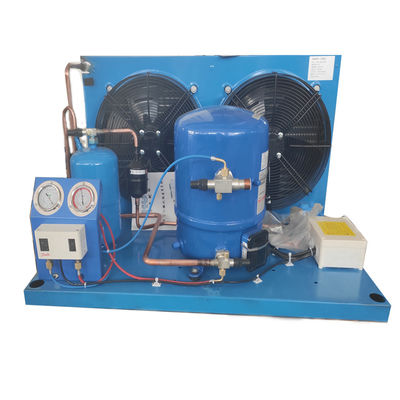

NTZ096 MANEUROP Compressors outdoor Air Cooled Condensing Unit 5HP R404A Energy Saving High Efficiency

1. Reliable Performance
CAD/CAM design manufacture system,reliable performance. Enthalpy difference laboratory matching test, further improve quality .
2 . Safely Running
Long term testing under critical working condition,ensure reliable performance. Multiple safety performance testing before delivery.
3. High Efficiency And Energy Saving
The core element of energy saving-hermetic scroll compressor. High efficiency heat exchanging condenser,low energy consume.
4. Quality Enhancement
Excellent component,more reliable quality. Comprehensive quality control system,more stable quality.
5. Widely Application
-Cooling refrigerating industry.
-Commercial refrigerating display cabinet.

Features:
1, Control accuracy, safety, reliability, little vibration, convenient installation and beautiful appearance;
2, All the accessories are world famous brand, which with reliable quality;
3, Flexible combination of capacity, you can start grading, multi-level unload to reduce energy consumption

Information:
1. Applied room temperature -40C~-15C
2. Cooling capacity 2.2.0Kw~14.6Kw
3. Evaporating temperature -50C~-25C
4. Refrigerant: R22, R134a, R404a, R507a
5. Standard Equipment: Compressor, crankcase heater, oil pressure safety switch, air-cooled condenser, receiving tank, drier-filter, meter panel, pressure controller, B5.2 refrigeration oil, protection gas, double stage compressor with intermediate cooler

Standard Equipment Include:
Compressor, crankcase heater, oil pressure safety switch, air-cooled condenser, receiving tank, drier-filter, meter panel, pressure controller, B5.2 refrigeration oil, protection gas, double stage compressor with intermediate cooler

HERMETIC CONDENSING UNIT
RANGE OF APPLICATION

1.refrigeration industry,cold room project
2.Agriculture,food, restaurant,chemical industry
3.We offer customized design and services



The Condensing Units are prefabricated, monoblock type, factory tested and easy to mount on Cold Room’s wall. The built-in electronic control panel with the microprocessor allows for manual setting of the desired temperature. It has the following components:
*An On-Off button for switching the unit on and off
*An On-Off Lighting button
*Three buttons for Temperature Setting
*A Manual Defrosting button
*A Digital Display showing the current room temperature.
All Condensing Units can be equipped with different kinds of refrigerants according to the clients' requirements.



Model Horse power Cooling capacity Motor fan
KUB NTZ096L 4hp 3.96kw 2*350



Air-cooled Condensing Unit, including:

1. 1 PCS of Compressor
2. 1 PCS of Receiver tank
3. 1 PCS of Dier Filter
4. 1 PCS of High presure protector
5. 1 PCS of Solenoid valve
6. 1 PCS of Condenser
7. 1 PCS of Oil gauge
8. 1 PCS of Gauge floor
9.1 PCS of High Pressure gauge
10.1 PCS of Low Pressure gauge



-20~+45℃ Intelligent Integrate Commercial Refrigeration Condensing Units 3HP R404a For Cold Room Storage KB030RLE 3



Our Services
A. Individuation & Customization

Refrigeration industry, cold storage engineering; Agriculture, food, restaurant, chemical industry; we can undertake designs according to customer's requirements.



B. Excellent warranty

KUB provides up to one year warranty period. If there is any product quality problems, we will return processing, and is responsible in the end.

We provide excellent service to solve your worries.



Shanghai KUB Refrigeration Equipment Co., Ltd is an advanced enterprise specializing in design,

manufacture and trade of refrigeration equipment.

Founded in 2000 We have adopted internationally advanced technology to meet all the different needs of our

diverse customers.

Main products include: box type & open type condensing units,air cooled,water cooled condensing units,

mono block split type condensing units, low temperature screw condensing units,compressor racks, industrial chillers,D-series air coolers,double side blowing air coolers,water defrosting air coolers, air cooled condenser,

tube-shell water cooled condensers, tube-shell evaporator and electrical control boxes,etc.

All of our units adopt world famous brand compressors such as KUB,Carrier,Carlyle , Copeland,

Emerson,Maneurop,Tecumseh,danfoss etc.,with excellent performance a beautiful appearance.

They are widely used in cold storage, hotels,industrial processes,medical industries, chemical industries,refrigerated trucks,vessel industries all other places where cold storage is needed.

Our products and solutions have been widely applied in the fast-growing Chinese market,providing tens of

thousands of industrial equipment in machinery,electronics,plastics, textile, food,medical,chemical industry andrenewable energy and related fields.

KUB is widely recognized and respected by manufacturers,technicians and end users in the industry.

We export our products all over the world to countries in locations such as Europe,Middle East,Southeast

Asia, Africa,etc. and we support our customers with high quality products and turnkey solutions.





Hermetic FNV Type R407C 48KW Air Cooled Condenser 2



Packaging & Shipping

Cold storage refrigeration condensing air-cooled unit :

The company has advanced information network technology and excellent location, a sound management system and modern means of communication and multi-faceted services. We insist on everything from the actual needs of customers, the implementation of the entire transport monitoring service is available 24 hours a day. These are the goods on time, safe, efficient destination to provide effective protection.
