R22 Refrigeration 10HP Water Cooled Condensing Units for cold room Cold Storage
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Cooling Type | Water Cooled | Refrigeration | R22 |
|---|---|---|---|
| Power Supply | 380V/three Phase/50HZ | Compressor Brand | Copeland |
| High Light | 10HP Water Cooled Condensing Units,Refrigeration Water Cooled Condensing Units,R22 Water Cooled Condensing Units |
||
Product Description

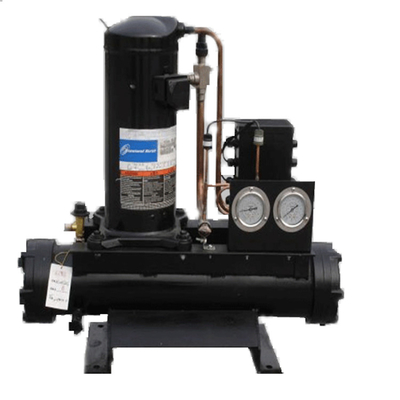

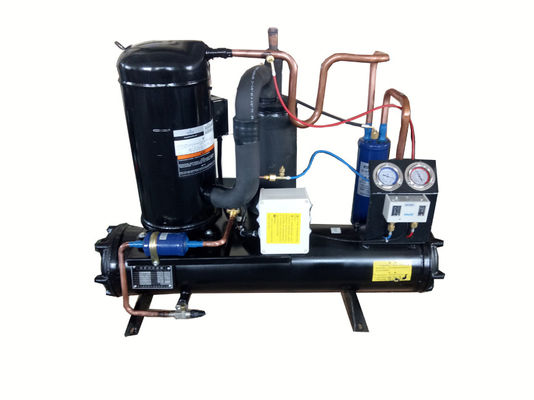

KUB1000/ ZB76KQ 10HP Water Cooled Condensing Units , Copeland Condensing Unit water cooled refrigeration system
Selection of international brands refrigeration compressor, good quality, reliable operation; the use of efficient shell-type condenser, heat transfer efficiency, long life; compressor running machine noise, high efficiency, the appearance of the whole machine.
| Fully enclosed medium and high temperature water cooled condensing unit | |||||||||
| Model | KUBN5CQZG | N6CQZG | KUBN8CQZG | KUBN9CQZG | KUBN10CQZG | KUBN15CQZG | |||
| Room temperature(℃) | 10～-15℃ | ||||||||
| Refrigerant | R404A | ||||||||
| Power Supply | 3 8 0 V/ 5 0 H Z | ||||||||
| Condenser | situation | Shell and tube condenser | |||||||
| Rated water flow(m3/h) | 3.2 | 3.7 | 5 | 5.5 | 6.6 | 9.6 | |||
| Take over specifications | RC1-1-1/2 | RC1-1-1/2 | RC1-1-1/2 | RC1-1-1/2 | RC1-1-1/2 | RC1-1-1/2 | |||
| Cap.& input | Te+5℃ | Cap(W) | 13350 | 22300 | 24100 | 26334 | 30096 | 41500 | |
| input(W) | 3710 | 4210 | 5720 | 6530 | 7520 | 11650 | |||
| Te-5℃ | Cap(W) | 9980 | 16550 | 18050 | 23100 | 21400 | 31000 | ||
| input(W) | 3760 | 4280 | 5760 | 6390 | 7390 | 11400 | |||
| Te-12℃ | Cap(W) | 7940 | 13000 | 14300 | 18100 | 16950 | 24400 | ||
| input(W) | 3760 | 4310 | 5650 | 6350 | 7300 | 11250 | |||
| Pipe | Gas dia.(mm) | 1/2〞 | 1/2〞 | 5/8〞 | 5/8〞 | 5/8〞 | 5/8〞 | ||
| Liquid dia.(mm) | 7/8〞 | 7/8〞 | 7/8〞 | 1-3/8〞 | 1-3/8〞 | 1-5/8〞 | |||
|
Overall sizes |
L (mm) | 972 | 972 | 972 | 1162 | 1162 | 1162 | ||
| B (mm) | 350 | 450 | 450 | 450 | 450 | 450 | |||
| H (mm) | 726 | 726 | 726 | 875 | 875 | 848 | |||
| Install sizes | (D)㎜ | 500 | 500 | 500 | 600 | 600 | 600 | ||
| (E)㎜ | 300 | 380 | 380 | 380 | 380 | 380 | |||
| Standard configuration of the unit: compressor, condenser, accumulator, pressure control, pressure gauge, filter, solenoid valve, junction box, etc. | |||||||||
Our Services
A. Individuation & CustomizationRefrigeration industry, cold storage engineering; Agriculture, food, restaurant, chemical industry; we can undertake designs according to customer's requirements.
B. Excellent warranty
KUB provides up to one year warranty period. If there is any product quality problems, we will return processing, and is responsible in the end.
We provide excellent service to solve your worries.
Shanghai KUB Refrigeration Equipment Co., Ltd is an advanced enterprise specializing in design,
manufacture and trade of refrigeration equipment.
Founded in 2000 We have adopted internationally advanced technology to meet all the different needs of our
diverse customers.
Main products include: box type & open type condensing units,air cooled,water cooled condensing units,
mono block split type condensing units, low temperature screw condensing units,compressor racks, industrial chillers,D-series air coolers,double side blowing air coolers,water defrosting air coolers, air cooled condenser,
tube-shell water cooled condensers, tube-shell evaporator and electrical control boxes,etc.
All of our units adopt world famous brand compressors such as KUB,Carrier,Carlyle , Copeland,
Emerson,Maneurop,Tecumseh,danfoss etc.,with excellent performance a beautiful appearance.
They are widely used in cold storage, hotels,industrial processes,medical industries, chemical industries,refrigerated trucks,vessel industries all other places where cold storage is needed.
Our products and solutions have been widely applied in the fast-growing Chinese market,providing tens of
thousands of industrial equipment in machinery,electronics,plastics, textile, food,medical,chemical industry andrenewable energy and related fields.
KUB is widely recognized and respected by manufacturers,technicians and end users in the industry.
We export our products all over the world to countries in locations such as Europe,Middle East,Southeast
Asia, Africa,etc. and we support our customers with high quality products and turnkey solutions.
