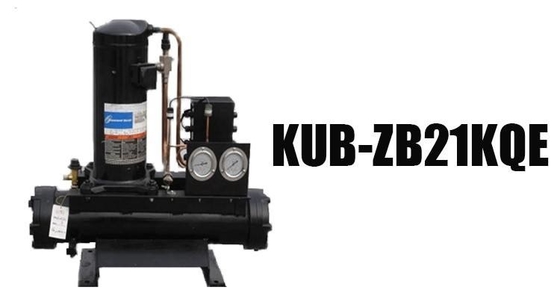

KUB-300LAGY Made in China ZB21KQE compressor 3hp condensing unit refrigeration small condensing unit

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xApplicable Industries | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert | Weight | 65kg |
---|---|---|---|
Warranty | 1 Year | Key Selling Points | Competitive Price |
Place Of Origin | Shanghai, China | Video Outgoing-inspection | Provided |
Core Components | Compressor | Product Name | Refrigeration Condensing Unit |
Application | Cold Room | Refrigerant | R404a |
Voltage | 380V/3Ph/50Hz | Compressor Type | Hermetic Scroll |
Horse Power | 3HP | Dimension | 1020*420*840mm |
Key Words | Condensing Unit | Original | Shanghai |
Highlight | ZB21KQE,3HP Refrigeration Condensing Unit,Explosion Proof Refrigeration Condensing Unit |
Product descriptions from the supplier
KUB-300LAGY Made in China ZB21KQE compressor 3hp condensing unit refrigeration small condensing unit
Model | KUB | ||||||
200 | 300 | 400 | 500 | 600 | |||
Compressor | 2HP | 3HP | 4HP | 5HP | 6HP | ||
Voltage | 380V/3P/50HZ | ||||||
Condenser | Number of fan | 1×Φ450 | 1×Φ450 | 1×Φ450 | 2×Φ450 | 2×Φ450 | |
Voltage of fan(V) | 220 | 220 | 220 | 220 | 220 | ||
Power of fan (W) |
60 | 60 | 60 | 60×2 | 60×2 | ||
Connection
|
Inlet (mm) | Φ16 | Φ16 | Φ16 | Φ19 | Φ19 | |
Outlet(mm) | Φ10 | Φ10 | Φ10 | Φ12 | Φ12 | ||
Dimension | L(mm) | 1020 | 1020 | 1020 | 1020 | 1020 | |
W(mm) | 420 | 420 | 420 | 420 | 420 | ||
H(mm) | 840 | 840 | 840 | 1240 | 1240 | ||
Installation dimension(A×B)(mm) | 580×380 | 580×380 | 580×380 | 580×380 | 580×380 |
Condensing unit schematic
Refrigeration industry, cold storage engineering; Agriculture, food, restaurant, chemical industry; we can undertake designs according to customer's requirements.
B. Excellent warranty
KUB provides up to one year warranty period. If there is any product quality problems, we will return processing, and is responsible in the end.
We provide excellent service to solve your worries.
Shanghai KUB Refrigeration Equipment Co., Ltd is an advanced enterprise specializing in design,
manufacture and trade of refrigeration equipment.
Founded in 2000 We have adopted internationally advanced technology to meet all the different needs of our
diverse customers.
Main products include: box type & open type condensing units,air cooled,water cooled condensing units,
mono block split type condensing units, low temperature screw condensing units,compressor racks, industrial chillers,D-series air coolers,double side blowing air coolers,water defrosting air coolers, air cooled condenser,
tube-shell water cooled condensers, tube-shell evaporator and electrical control boxes,etc.
All of our units adopt world famous brand compressors such as KUB,Carrier,Carlyle , Copeland,
Emerson,Maneurop,Tecumseh,danfoss etc.,with excellent performance a beautiful appearance.
They are widely used in cold storage, hotels,industrial processes,medical industries, chemical industries,refrigerated trucks,vessel industries all other places where cold storage is needed.
Our products and solutions have been widely applied in the fast-growing Chinese market,providing tens of
thousands of industrial equipment in machinery,electronics,plastics, textile, food,medical,chemical industry andrenewable energy and related fields.
KUB is widely recognized and respected by manufacturers,technicians and end users in the industry.
We export our products all over the world to countries in locations such as Europe,Middle East,Southeast
Asia, Africa,etc. and we support our customers with high quality products and turnkey solutions.
Cold storage refrigeration condensing air-cooled unit :
The company has advanced information network technology and excellent location, a sound management system and modern means of communication and multi-faceted services. We insist on everything from the actual needs of customers, the implementation of the entire transport monitoring service is available 24 hours a day. These are the goods on time, safe, efficient destination to provide effective protection.
Warranty:1 Year
After-sales Service Provided:Video technical support
After-sales Service Provided:Online support
Temperature:0 ~ 10 degree / -18 ~-22 degree
Brand Name:Huaer
Voltage:220V/380V/ 50-60Hz
Power:6HP/Customized
Dimension(L*W*H):12000*4000*2500mm/ Customized Size
Weight:Cold Room Dimension
Product name:Cold Storage Room
Usage:Frozen Food
Functions:Insulated Wall Panel
Compressor brand:Copeland
Doors:hanged door, sliding door, double swing door etc
Refrigerant:R134a / R404a
Application of Industry:Fresh Storage
Material:Painted Steel / Stainless Steel
Cooling system:Air Cooling Condesor/water Cooling
Weight:Depends on mini col
