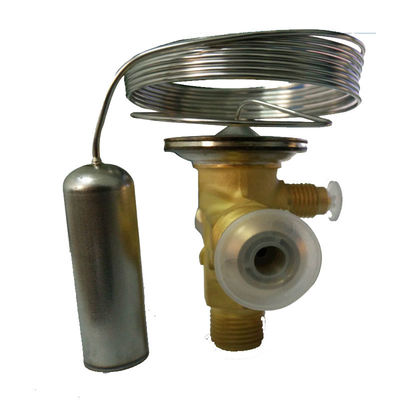

TEX2 068Z3209 R22 AC price of expansion valve

Place of Origin Tianjin, China (Mainland)
Brand Name KUB
Certification CE
Model Number TEX2
Minimum Order Quantity 100
Price US $16
Packaging Details Carton Box
Delivery Time 10-15days
Payment Terms T/T, Western Union, L/C
Supply Ability 5000 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Type Heat Exchanger Tube Application Refrigeration Parts
Name R22 Expansion Valve Condition New
Usage Machine Refrigerant R22
Weight 0.85-1.3 Packing Carton
Warranty 1year MOQ 100pcs
Original Made Product Name Utdoor Box
High Light

hydraulic solenoid valve


electronic expansion valve

Leave a Message
Product Description

TEX2 068Z3209 R22 AC price of expansion valve

 Please tell me your model choose and order code.

Product name Model Gas
Thermal expansion valve TEX2 R22
Product Description

Identification The thermostatic element has laser engraved data on top of the diaphragm. This engraving gives valve type (with code number), evaporating temperature range, MOP point, refrigerant, and max. working pressure. PS/MWP.


T2 = internal equalization TE2 = external equalization


The code refers to the refrigerant for which the valve is designed:

X = R22/R407C1) Z = R407C

N = R134a

S = R404A/ R507

R407F / R407A (No code designated) R448A / R449A (No code designated)

1) For R407C plants, please select valves from the dedicated

R407C program


Production place and date N4511A =

N = Nordborg, Denmark (BE = Wuqing, China)

45 = week 11 = 2011

A = Monday

Orifice assembly for T2 and TE2

The orifice assembly is marked with the orifice size (e.g. 06) and week stamp + last number in the year (e.g. 174).

The orifice assembly number is also given on the lid of its plastic container.

Capillary tube label for T2 and TE2

The label gives the orifice size (04) and consists of the lid of the orifice assembly plastic container. It can easily be fastened around the expansion valve capillary tube to clearly identify the valve size.



 TEX2 068Z3209 R22 AC price of expansion valve 1

Technical data Max. temperature

Bulb, when valve is installed: 100 °C Bulb, element not mounted: 60 °C

Min. temperature

T2 - TE2: –60 °C


Max. test pressure

PT = 38 bar

Max. working pressure

PS/MWP = 34 bar


Range N

–40 °C - +10 °C

Range NM

–40 °C - –5 °C

Range NL

–40 °C - –15 °C

Range B

–60 °C - –25 °C

MOP-point in evaporating temperature te and evaporating pressure pe 1)
+15 °C / +60 °F 0 °C / +32 °F –10 °C / +15 °F –20 °C / –4 °F
R22 100 psig/6.9 bar (abs) 60 psig/4.0 bar (abs) 35 psig/2.4 bar (abs) 20 psig/1.4 bar (abs)
R407C 95 psig/6.6 bar (abs)
R134a 55 psig/3.8 bar (abs) 30 psig/2.0 bar (abs) 15 psig/1.0 bar (abs)
R404A/R507 120 psig/8.3 bar (abs) 75 psig/5.2 bar (abs) 50 psig/3.4 bar (abs) 30 psig/2.1 bar (abs)




1) Pe in bar gauge


SS = static superheat OS = opening superheat

SH = SS + OS = total superheat Qnom = rated capacity

Qmax = maximum capacity


Static superheat SS can be adjusted with setting spindle.

The standard superheat setting SS is 5 K for valves without MOP and 4 K for valves with MOP.

The opening superheat OS is 6 K from when opening begins to where the valve gives its rated capacity Qnom.


Static superheat SS = 5 K Opening superheat OS = 6 K

Total superheat SH = 5 + 6 = 11 K


TEX2 068Z3209 R22 AC price of expansion valve 2


TEX2 068Z3209 R22 AC price of expansion valve 3
TEX2 068Z3209 R22 AC price of expansion valve 4
Packaging & Shipping

 The company has advanced information network technology and excellent location, a sound management system and modern means of communication and multi-faceted services. We insist on everything from the actual needs of customers, the implementation of the entire transport monitoring service is available 24 hours a day. These are the goods on time, safe, efficient destination to provide effective protection.

Our Services

A. Individuation & Customization
Refrigeration industry, cold storage engineering; Agriculture, food, restaurant, chemical industry; we can undertake designs according to customer's requirements.


B. Excellent warranty

KUB provides up to one year warranty period. If there is any product quality problems, we will return processing, and is responsible in the end.

We provide excellent service to solve your worries.


Company Information


Shanghai KUB Refrigeration Equipment Co., Ltd. is refrigeration equipment production, refrigeration installation and technical services integrated enterprise. Our company was established in 2000. Since company's inception, we have been continuously innovating and developing. Our aim is to grow into the world's high-quality refrigeration equipment and accessories manufacturer in China.

Our main business are: the wholesale of foreign and domestic compressors and spare parts; production of all kinds of outdoor-type quiet refrigeration units and complete set of chillers, refrigerator library body, and refrigeration units; installation and commissioning one-stop services; production of condenser and evaporator.

We have subsidiary company - KUB Shanghai Refrigeration Equipment Co., Ltd. and the treasure house of the company's sales agent - Contardo Italian Air Coolers.

Our company's spirit is of "quality first, reputation first". We are trying our best to provide users with high-quality products and excellent services. We hope to work with the vast number of users and create a brilliant tomorrow together.


View of our factory:



Q1: Are you a manufacturer or trading company?
A1:This compressor we are agent , But we are factories that produce condensing units, chillers,Evaporator.

Q2: What about the shipping methods?
A2: By express/By air/By sea.

Q3: What about the payment methods &payment terms
A3: We accept T/T ,Paypal, Western Union, Cash and etc.After 30% deposit,and 70%balance before the shipment.

Q4: What's your delivery time?Where is the loading port?
A4: Usually  within 35-60 days after receiving the payment.
Loading port:Shanghai,other place in china according your requirement.

Q5:Can I have a sample first ?
A5:You have to pay sample cost.
Q6: How do you ship the goods and how long does it take arrive?
A6: We usually ship goods by LCL or FCL by sea, by air or express delivery.
Usually it takes 30 days by sea, 5-7 days by air or express delivery.
The delivery time is according to the way of shipping.
