EK-3010 Cold Storage Parts , Digital Temperature Controller Quick Response

Place of Origin Jiangsu, China (Mainland)
Brand Name Elitech
Model Number EK-3010
Minimum Order Quantity 10
Price negotiable

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Usage Outdoor Theory Temperature Controller
Accuracy 0.1℃ / 1℃ Temperature Range -40~99℃
Product Name Digital Temperature Controller Color Black
Application Equipment Supporting Communication Standard Communication Protocol
Weight 0.5kg Feature Quick Response
Name Digital Thermometer Probe Dimensions 71mm*29mm
Warranty 1 Year Type NTC
High Light

hydraulic solenoid valve

,

electronic expansion valve

Leave a Message
Product Description

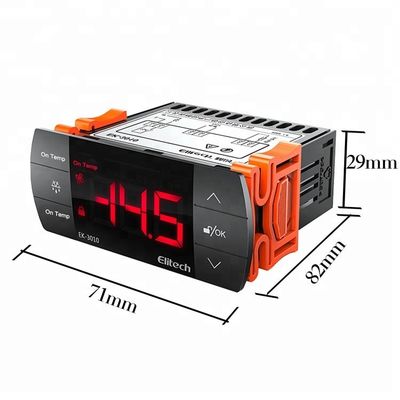

EK-3010 Digital Temperature Controller

Model Brand Voltage Place of origin
EK-3010 Elitech 220v Made in china
Product Description

Features
1. Suitable for temperature control of the middle and low temperature cold storage or heating equipment.
2. One way sensor input: cabinet temperature sensor, one way control output: Refrigeration (or heating equipment output).
3. Six touch key design, quick parameter setting, easy operation.
4. It could measure, display and control temperature, with the function of temperature calibration, and temperature over temperature alarm and sensor failure alarm.
5. one key recovery of the factory default value, support parameters preset
6. It adopts touch key design wit the key lock function
Product functions comparison
Ek3010
cooling(or heating) :Yes Defrost :No Fan:No Alarm: Yes Probe: 1
Ek3020
cooling(or heating) :Yes Defrost :Yes Fan:No Alarm: Yes Probe: 1
Ek3021
cooling(or heating) :Yes Defrost :Yes Fan:No Alarm: Ye Probe: 2
Ek3030
cooling(or heating) :Yes Defrost :Yes Fan:Yes Alarm: Yes Probe: 2
Specifications:
1) Measuring range:-40℃~99℃
2) Controlling range:-40℃~85℃
3) Accuracy:-30℃~50℃,±1℃±0.5dig; others, ±2℃±0.5dig
4) Resolution:0.1℃ / 1℃
5) Mounting size: 71mm*29mm
6) Power supply: 220±10%(VAC), 50/60Hz
7) Power consumption:5W
8) Output capacity:
Refrigeration:10A/220VAC or 16A/220VAC, directly drive a single phase compressor 1HP
One way buzzer alarm output
9) Work ambient temperature: -5℃~60℃;work ambient humidity:10%~90% non condensing
10) Storage temperature:-25℃~75℃
11) Senor type: NTC(10KΩ/25℃,B value 3435K)
12) Sensor length: 2M
