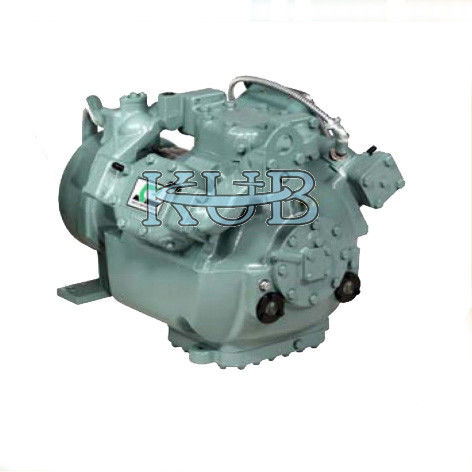

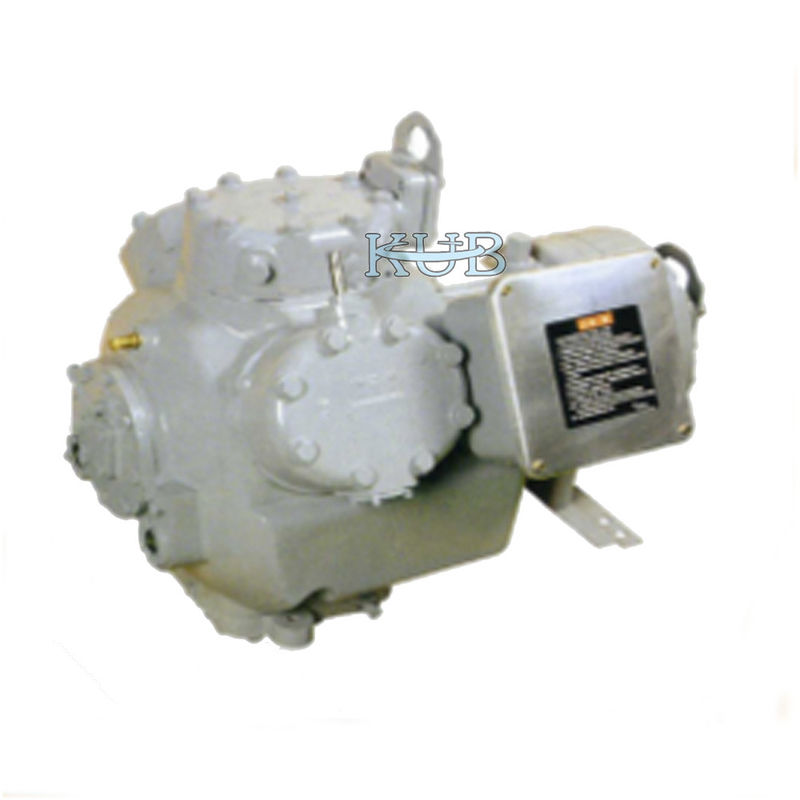

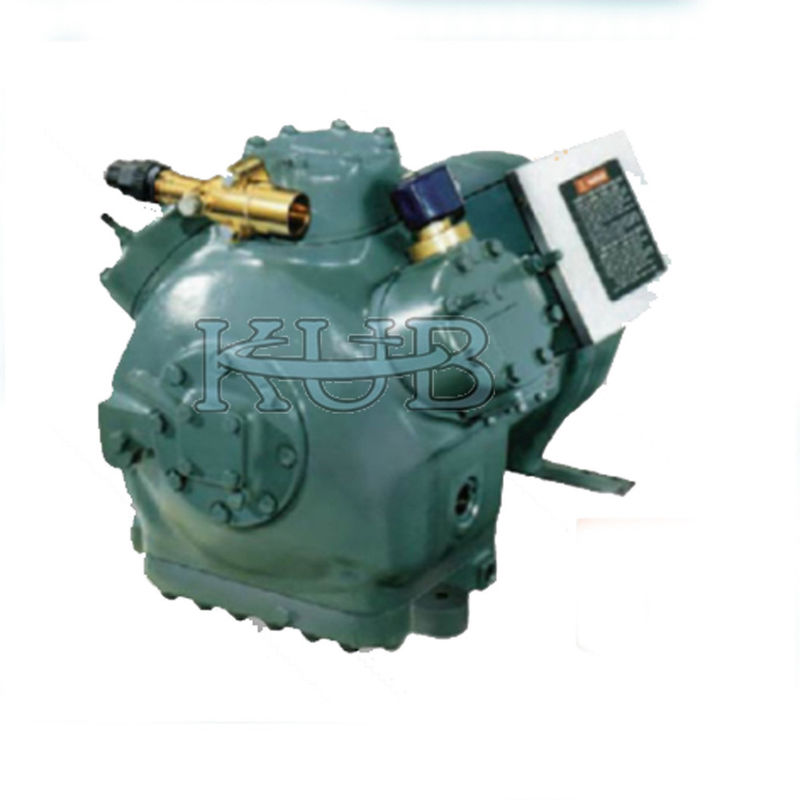

30hp Cold Storage Compressor R404a Reciprocating Refrigeration With 2 Stage Low

30hp Cold Storage Compressor R404a Reciprocating Refrigeration With 2 Stage Low

    • 30hp Cold Storage Compressor R404a  Reciprocating Refrigeration With 2 Stage Low
    • 30hp Cold Storage Compressor R404a  Reciprocating Refrigeration With 2 Stage Low
    • 30hp Cold Storage Compressor R404a  Reciprocating Refrigeration With 2 Stage Low
    • 30hp Cold Storage Compressor R404a  Reciprocating Refrigeration With 2 Stage Low
  • 30hp Cold Storage Compressor R404a  Reciprocating Refrigeration With 2 Stage Low

    Product Details:

    Place of Origin: California, United States
    Brand Name: carrier
    Certification: CE Certification
    Model Number: 06CC899

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece/Pieces
    Price: negotiable
    Packaging Details: Plywood pallet+Plywood
    Supply Ability: 50 units per month
    Contact Now
    Detailed Product Description
    Condition: New Type: Piston
    Mute: Yes Voltage: 380v/3ph/50hz(or Customized)
    Weight: 255kg Warranty: One Year

    New 06CC899 06CC899F210 R404A 30HP Carrier Carlyle 06CC Reciprocating Refrigeration Compressor with 2-Stage Low

    The Carlyle Compound Cooling compressor offers the highest energy efficiency available for low temperature refrigeration when using a single compressor. A single Carlyle Compound Cooling compressor provides the capacity and efficiency equal to a two-compressor booster system.

    The Carlyle Compound Cooling compressor is designed with two compression stages in a single body and utilizes subcooling from a simple plate to plate heat exchanger that is the system subcooler.

    A variation of the two-stage booster system, the internally compounded compressor has both the high and low stages built into one compressor body. In this arrange- ment, compression is accomplished in two stages, safely and economically.

    All 06CC models have six cylinders. Four cylinders act as the low stage and “boost” the suction pressure from the refrigeration load to the intermediate pressure. The remaining two cylinders, acting as the high stage, complete the compression to normal condensing temper- atures. The result is lower internal losses and a compres- sor that delivers more capacity in the same displacement. The lower losses increase operating efficiencies.





    • Carlyle's innovative design makes it literally two compressors in one, with both high and low stages built in.

    • Narrow-seat valve design makes it the most efficient low-temp compressor on the market in both HCFC and HFC applications in the 6 1/2 HP to 30 HP ranges.

    • Optimizes System Operation.

    • Compatible with HFC refrigerants and POE oil in single, multiplexed and parallel system design configurations.

    • Utilizing liquid subcooling minimizes liquid temperature fluctuation to TXVs on systems incorporating floating condensing temperatures.

    • Electronic oil-pressure switch.

    SPECIFICATIONS
    Model

    Replacement

    Model Number

    Horse

    Power

    Airflow

    @1750 RPM (CFM)

    Number

    of

    Cylinders

    Oil

    Change (Pints)

    Net

    Weight

    (Lbs)

    06CC125 06CY125 6.5 23.9 6 9.5 335
    06CC228 06CY228 7.5 28.0 6 9.5 330
    06CC337 06CY337 10 37.1 6 9.5 345
    06CC550 06CY550 15 50.3 6 19 545
    06CC665 06CY665 20 68.3 6 19 555
    06CC675 06CY675 20 75.4 6 19 555
    06CC899 06CY899 30 99.0 6 19 580





    06CC Single-Compressor System Piping 06CC Multiple-Compressor System Piping
