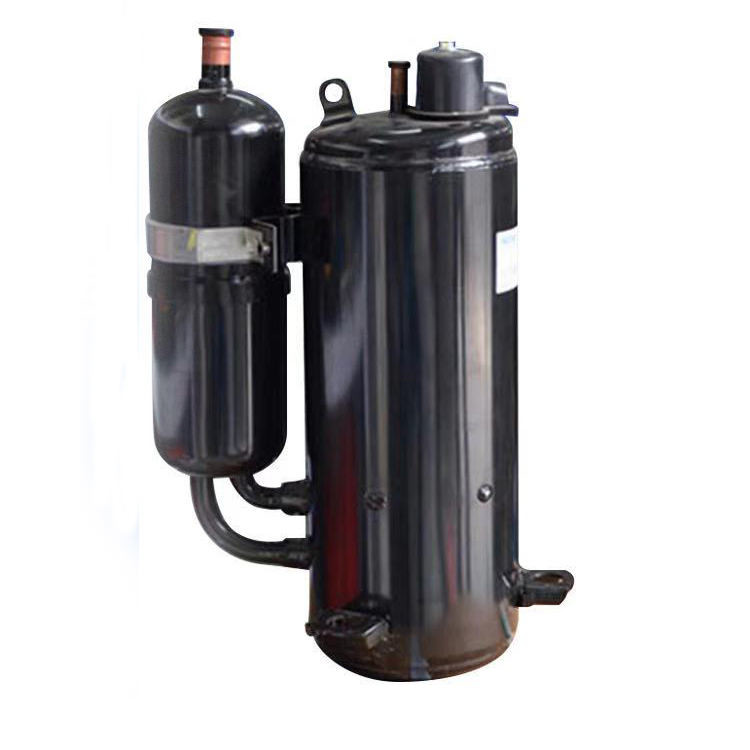

ATE590SC3Q9JK Air Conditioning compressor refrigerant R410A compressor rotary compressor
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Applicable Industries | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C | Showroom Location | None |
|---|---|---|---|
| Video Outgoing-inspection | Provided | Place Of Origin | Shanghai, China |
| Warranty | 1 Year | Condition | New |
| Applicable Industries Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufa | Famous | Product Name | Refrigeration Compressor |
| Refrigerant | R410A | Voltage | 380-415V/50Hz/Three Phase |
| Compressor Type | Rotary | Packing | Pallet Packaging |
| MOQ | 16Piece | Original | Shanghai |
| Keyword | Compressor | Frequency | 50 Hz |
| Item | Refrigeration Equipment | ||
| High Light | refrigeration compressor for cold room,screw type compressor |
||
Product Description
Product descriptions from the supplier
Lead time
| Quantity (pieces) | 1 - 1 | 2 - 16 | > 16 |
| Lead time (days) | 10 | 25 | To be negotiated |
ATE590SC3Q9JK Air Conditioning compressor refrigerant R410A compressor rotary compressor
| Model | ATE590SC3Q9JK |
| Voltage | 380-415V/50Hz/Three phase |
| frequency | 50Hz |
| Phase | 3PH |
| Application | Air Conditioning |
| Refrigerant | R410A |
| Displacement | 59.0ml/rev |
| Rated cooling capacity (W) | 14850W(12768Kcal/h) (380V) |
| Allowable refrigerant charge: | 4600g |
| Net weight | 34.7kg |
| COP | 3.00 |
This specification is applied to SHANGHAI rotary compressor.
2. SPECIFICATION OF COMPRESSOR
2.1 Model ATE590SC3Q9JK
2.2 Rated Voltage/Frequency/Phase 380-415V/50Hz/Three phase
2.3 Application Air Conditioning
2.4 Refrigerant R-410A
2.5 Compressor Cooling Forced air
2.6 Displacement 59.0ml/rev
2.7 Rated capacity(see*) ASHRAE 14850W(12768Kcal/h) (380V)
2.8 Motor input(see*) 4950W (380V)
2.9 COP 3.00 (380V)
2.10 Current 8.7A (380V)
2.11 Allowable amount of refrigerant charge 4600g
2.12 Amount of oil charge 1850±20 ml(Initial)
2.13 Oil α68HES-H or equivalent
2.14 Space volume of inner case 2650ml
2.15 Net weight 34.7 kg incl.Oil
