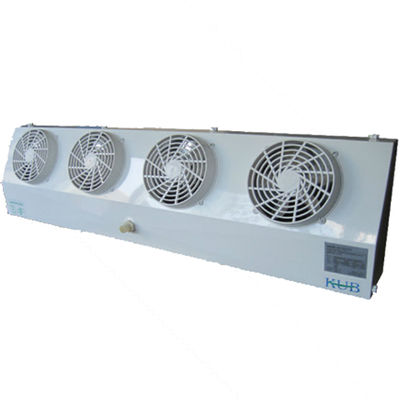

KUBD-4D Cold Room Freezer Units , Four Fan Motor Refrigeration Air Cooler With Shaded Pole Fan Motors

KUBD-4D Cold Room Freezer Units , Four Fan Motor Refrigeration Air Cooler With Shaded Pole Fan Motors

    • KUBD-4D Cold Room Freezer Units ,  Four Fan Motor Refrigeration Air Cooler With Shaded Pole Fan Motors
    • KUBD-4D Cold Room Freezer Units ,  Four Fan Motor Refrigeration Air Cooler With Shaded Pole Fan Motors
    • KUBD-4D Cold Room Freezer Units ,  Four Fan Motor Refrigeration Air Cooler With Shaded Pole Fan Motors
  • KUBD-4D Cold Room Freezer Units ,  Four Fan Motor Refrigeration Air Cooler With Shaded Pole Fan Motors

    Product Details:

    Place of Origin: Shanghai, China (Mainland)
    Brand Name: KUB
    Certification: CE
    Model Number: KUBD-4D

    Payment & Shipping Terms:

    Minimum Order Quantity: 50 Piece/Pieces
    Price: negotiable
    Packaging Details: carton
    Supply Ability: 45 units per month
    Contact Now
    Detailed Product Description
    Operating Voltage: 220V/1HP/50HZ Power: 2HP
    Temperature: -18℃ Material: High Quality Aluminum Coating

    KUBD-4D -18℃ four fan motor for small mimi ceiling Cool Room Evaporators air cooler

    Product Description

    Model KUBD-1D KUBD-2D KUBD-3D KUBD-4D
    Capacity Kcal/h 650 1300 1950 2590
    (C2)DT=8K(R22) W 760 1510 2270 3010
    Surface 3.3 6.5 9.8 13
    Voi.int. dm³ 0.95 1.75 2.5 3.4
    heded-pole Fans Air Flow m³/h 480 960 1440 1920
    Air Throw m 4 4 4 4
    N°*φmm 1*200 2*200 3*220 4*200
    Total Current A 0.23 0.46 0.69 0.92
    Total Input W 35 70 105 140
    Heater tube N°*W 1*500 1*800 1*1200 1*1500
    Total W 500 800 1200 1500
    Dimension A mm 410 735 1060 1385
    B mm 160 160 160 160
    C mm 365 365 365 365
    Connection Inlet φ” 3/8” 1/2” 1/2” 1/2”
    Outlet φ” 3/8” 1/2” 1/2” 5/8”
    Drain Unionφ” 3/4” 3/4” 3/4” 3/4”
    Mounting 2 2 3 3
    H mm 340 340 340 340
    P-N mm     450 612
    K mm 250 575 450 612





    .jpg



    General Futures:

    The high efferent coils are made from high quality cooper tube 9.52mm and special profile aluminum fins, Heat exchanges are sup-plied clean and tested under a pressure of 30 bars.



    The Casing:

    White power coated aluminum, high corrosion strength, impact resistance and does not produce polluting debris.



    Defrost heating:

    Provided stainless steel heater elements



    The fan motors:

    All with high quality shaded-pole fan motors with high safety standards fitted well to the unit casing with an anti-vibration system.



    Electrical parts and wiring:

    Are connected to earth terminal, carried out in junction box with access holes equipped with water-proof cable grand. All material are selected carefully for long-term reliability.





    FAQ

    KUBD series Ceiling Evaporator (European)

    1. How do you confirm the quality of your products

    KUB provides up to one year warranty period. If there is any product quality problems, we will return processing, and is responsible in the end.

    We provide excellent service to solve your worries.



    2. Why your products are competitive?

    We have our own casting factory, it can help us to reduce the costs and save a lot of intermediate links.


    3. What accessories within KUB refrigeration unit?
    Compressors, condensers, motors, reservoir, filter drier, oil separator (optional), gas-liquid separator (optional), solenoid valves, pressure controllers, the sight glass (optional), pressure gauge , valves, junction boxes, brass floor joints. Where optional, do not require a surcharge on the standard unit.
