10HP Piston Compressor Semi Hermetic Condensing Unit 4VES-10Y High Efficiency
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Refrigerant | R404A | Product Name | Semi-hermetic Condensing Unit |
|---|---|---|---|
| Compressor | Original | Voltage | 380V/3Ph/50Hz |
| Application | Cold Storage Room Freezer Room | Cooling Capacity | 7.5Kw |
| Highlight | 10HP Semi Hermetic Condensing Unit,Compressor Semi Hermetic Condensing Unit,Piston Semi Hermetic Condensing Unit |
||
Product Description

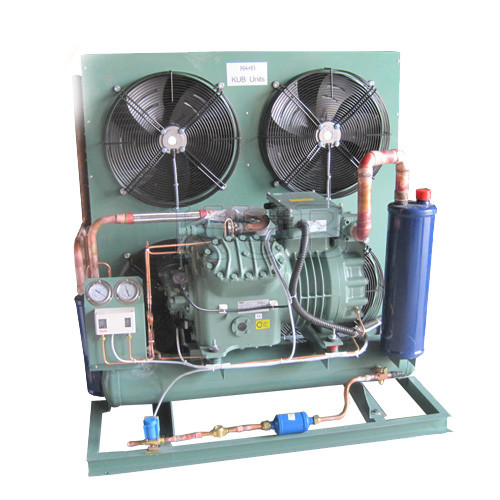

4VES-10Y semi hermetic piston compressor drop in cold room refrigeration unit 10HP
High efficiency & energy saving
Because of a huge demand difference between seasons for refrigerating capacity, the unit must
have a high level control for capacity, so that the unit can keep running under high efficiency
mode. The average parallel unit efficiency, according to different refrigeration system is 30%
higher than single compressor unit.
Using multiple compressor parallel units can provide a multiple energy level control, the
refrigeration output can be dynamically allocated more smoothly according to actual situation.
With high efficiency oil separator, only a small amount of lubricating oil enters the system,
this largely brings up the heat exchanging efficiency.
| Product name | Cold room refrigeration unit |
| Compressor brand | |
| Refrigerant | R404A |
| Power | 10HP |
| Condenser | air cooled condenser |
| Compressor type | semi-hermetic compressor |
| Number of fan motor | 2fan motor |
| Fan motor diameter | 450mm |
| Application | cold room |
| Brand | KUB |
6FE-44 6FE-44Y
| Condensing unit | Compressor | Cooling capacity (w) | Condenser | Connector | Dimension | |||||||
| Model | Model | Input (kw) | Evap Temp: -10'C | Qty fan | Dia. (Φmm) | Air flow (m3/h) | Fan power (w) | inlet (mm) | outlet (mm) | L | W | H |
| 2HES-2Y | 2HES-2Y | 1.47 | 3320 | 1 | 400 | 3490 | 1*200 | 16 | 10 | 620 | 650 | 560 |
| 2DES-3Y | 2DES-3Y | 2.92 | 7310 | 2 | 350 | 2350*2 | 2*150 | 22 | 12 | 960 | 680 | 510 |
| 2CES-4Y | 2CES-4Y | 3.59 | 9030 | 2 | 400 | 3490*2 | 2*200 | 22 | 12 | 1060 | 680 | 720 |
| 4FES-5Y | 4FES-5Y | 3.89 | 9740 | 2 | 400 | 3490*2 | 2*200 | 22 | 12 | 1300 | 750 | 670 |
| 4EES-6Y | 4EES-6Y | 4.9 | 12210 | 2 | 400 | 3490*2 | 2*200 | 28 | 12 | 1300 | 750 | 770 |
| 4DES-7Y | 4DES-7Y | 5.85 | 14730 | 2 | 450 | 4900*2 | 2*250 | 28 | 16 | 1300 | 750 | 870 |
| 4CES-9Y | 4CES-9Y | 7.14 | 17800 | 2 | 450 | 4900*2 | 2*250 | 28 | 16 | 1280 | 710 | 910 |
| 4VES-10Y | 4VES-10Y | 7.15 | 18600 | 2 | 450 | 4900*2 | 2*250 | 28 | 16 | 1280 | 710 | 910 |
| 4PES-15Y | 4PES-15Y | 9.82 | 25610 | 4 | 400 | 3490*2 | 4*200 | 35 | 22 | 1280 | 750 | 1460 |
| 4NES-20Y | 4NES-20Y | 11.64 | 30600 | 4 | 400 | 3490*2 | 4*200 | 42 | 22 | 1350 | 800 | 1410 |
Our Services
A. Individuation & CustomizationRefrigeration industry, cold storage engineering; Agriculture, food, restaurant, chemical industry; we can undertake designs according to customer's requirements.
B. Excellent warranty
KUB provides up to one year warranty period. If there is any product quality problems, we will return processing, and is responsible in the end.
We provide excellent service to solve your worries.
Shanghai KUB Refrigeration Equipment Co., Ltd is an advanced enterprise specializing in design,
manufacture and trade of refrigeration equipment.
Founded in 2000 We have adopted internationally advanced technology to meet all the different needs of our
diverse customers.
Main products include: box type & open type condensing units,air cooled,water cooled condensing units,
mono block split type condensing units, low temperature screw condensing units,compressor racks, industrial chillers,D-series air coolers,double side blowing air coolers,water defrosting air coolers, air cooled condenser,
tube-shell water cooled condensers, tube-shell evaporator and electrical control boxes,etc.
All of our units adopt world famous brand compressors such as KUB,Carrier,Carlyle , Copeland,
Emerson,Maneurop,Tecumseh,danfoss etc.,with excellent performance a beautiful appearance.
They are widely used in cold storage, hotels,industrial processes,medical industries, chemical industries,refrigerated trucks,vessel industries all other places where cold storage is needed.
Our products and solutions have been widely applied in the fast-growing Chinese market,providing tens of
thousands of industrial equipment in machinery,electronics,plastics, textile, food,medical,chemical industry andrenewable energy and related fields.
KUB is widely recognized and respected by manufacturers,technicians and end users in the industry.
We export our products all over the world to countries in locations such as Europe,Middle East,Southeast
Asia, Africa,etc. and we support our customers with high quality products and turnkey solutions.
Packaging & Shipping
Cold storage refrigeration condensing air-cooled unit :
The company has advanced information network technology and excellent location, a sound management system and modern means of communication and multi-faceted services. We insist on everything from the actual needs of customers, the implementation of the entire transport monitoring service is available 24 hours a day. These are the goods on time, safe, efficient destination to provide effective protection.
