CAJ2446Z R404a 1hp Small Condensing Unit Pioneer Design Water Cooled

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xRefrigerant | R404A | Voltage | 220V/1PH/50HZ |
---|---|---|---|
Brand | Tecumseh | Power | 1HP |
Application | Refrigerator / Freezer | ||
Highlight | freezer condenser unit,commercial condensing unit |

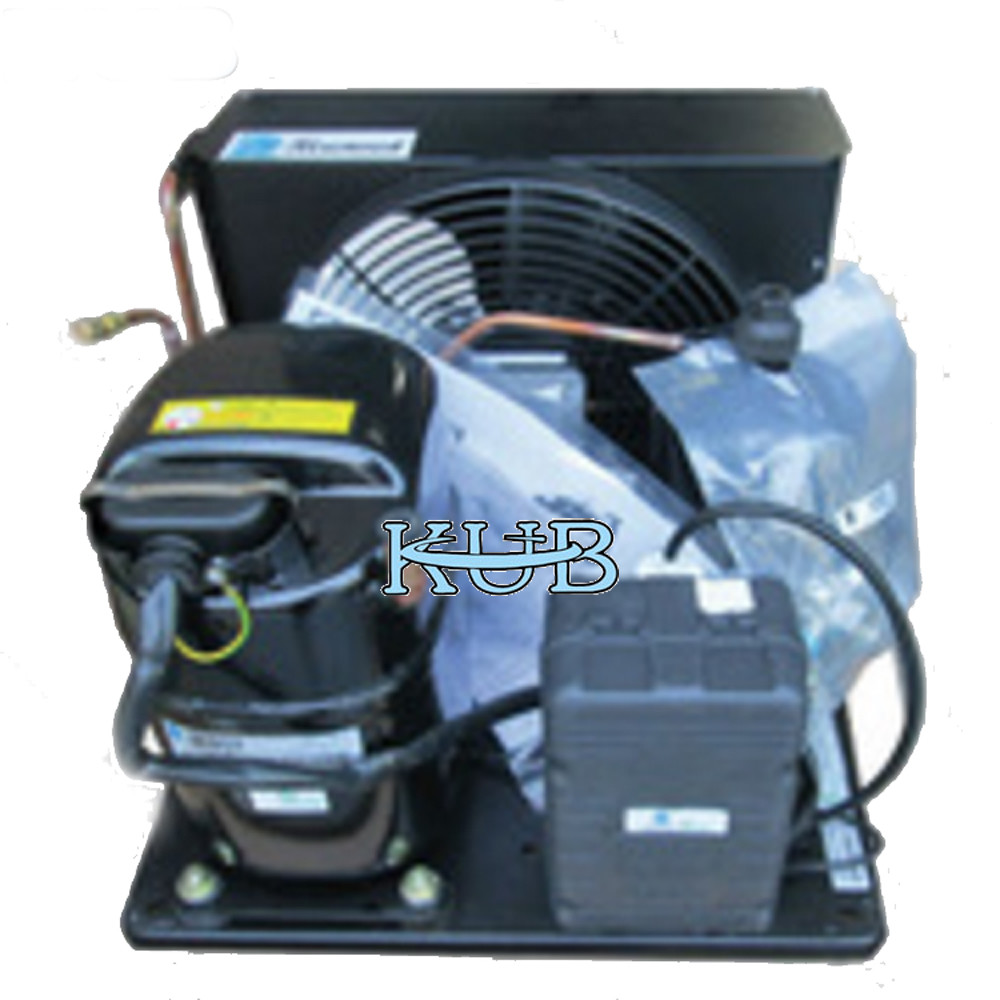

CAJ2446Z R404A 1HP Refrigerator freezer Small Condensing Unit French Tecumseh Compressors Unit
Our wide range of condensing units is backed by 75+ years of experience. From small evaporative condensate units to large outdoor condensing units, you'll find the right product from Tecumseh.
What is a Condensing Unit?
A condensing unit typically is a high side assembly of a refrigeration system. It is an assembly of compressor, condenser, fan motor, controls and a mounting plate. It has the function of a heat exchanger to cool down and condensate the incoming refrigerant vapor into liquid and a fan for blowing outside air through the heat exchanger section to cool the refrigerant inside. Condensing units have various designs and come in many sizes ranging from small household appliance units to very large industrial scale units used in factory processes.
Why Tecumseh Condensing Unit?
Ready to install - Tecumseh continues to pioneer the design and development of condensing units for various applications. We offer a complete range of air and water-cooled, indoor and outdoor condensing units for commercial refrigeration applications.
The fully enclosed condensing unit is suitable for various working fluids such as R22, R134a and R404A. The cooling capacity of the unit is from 100W to 30000W, the evaporating temperature is -45°C to +15°C, and the high, medium and low temperature series are complete. At present, the number of units that have been produced has reached more than 2,000. It is the first choice for refrigeration in various industries such as supermarkets, dairy, kitchens, cold storage, fire protection, gas purification, medical treatment and environmental experiments.
The company is willing to meet the needs of customers with the best quality, the shortest delivery time, the most perfect and fast service!
Product Description:
Tesumseh condensing unit is with original Tecumseh hermetic compressor. With advantage of small capacity, Tecumseh condensing unit is the first choice for small cold room. Like 1/8HP, 1/6HP, 1/5HP, 1/4HP, etc. Applicable for med-high temperature and med-low temperature. Widely used in different field, like supermarket, food industry, chemical industry, hotel, restaurant, and even medical service, etc.
Feature:
1. Tecumseh hermetic compressor
2. With full range, air cooled & water cooled.
3. All the accessories are world famous brand, which with reliable quality.
4. Wide application, suitable for different refrigerant.
5. Optional configuration is acceptable.
Package details and loading show:
packed with woode case;package size:0.55*0.41*0.45m;gross weight:41KG.
Europe Tecumseh fully enclosed air-cooled condensing unit performance table
Model | HP | OUT TEMP℃ | Cooling capacity(W) | PIPER | ||||||||
Evaporation temperature ℃ | ||||||||||||
-20 | -15 | -10 | -5 | 0 | 7.2 | 10 | 15 | Suction | Liquid | |||
CAJ2446ZBR | 1 | 32 | 180 | 360 | 547 | 750 | 1047 | 1205 | 1456 | 1724 | 12.7 1/2 | 9.5 3/8 |
CAJ/TAJ2446ZBR | 1 1/2 | 32 | 128 | 459 | 771 | 1080 | 1491 | 1692 | 1995 | 2296 | 15.9 5/8 | 9.5 3/8 |
TFH2480ZBR | 2 | 32 | 435 | 852 | 1233 | 1628 | 2223 | 2519 | 2980 | 3147 | 15.9 5/8 | 9.5 3/8 |
TFH2511ZBR | 3 | 32 | 395 | 992 | 1520 | 2105 | 2892 | 3301 | 3895 | 4485 | 15.9 5/8 | 9.5 3/8 |
TAG2516ZBR | 4 | 32 | 941 | 1631 | 2354 | 3146 | 4317 | 4940 | 5941 | 7011 | 22.2 7/8 | 9.5 3/8 |
TAG2522ZBR | 6 | 32 | 1307 | 2146 | 3020 | 3971 | 5368 | 6107 | 7291 | 8553 | 28.6 1 1/8 | 9.5 3/8 |
Model | Europe Tecumseh Condensing unit assembly size and electrical performance table | ||||||||
amount of oil cm³ | Air volume m³/h | Reservoir dm³ | (V) | NW Kg | Working | Maximum | Input | ||
current | current | power | |||||||
1Ph | 3Ph | A | A | W | |||||
CAJ2446ZBR | 887 | 1130 | 2.35 | 220 | 39 | 4.35 | 8.73 | 833 | |
CAJ/TAJ2446ZBR | 887 | 980 | 2.35 | 220 | 380 | 40 | 6.18 | 11.2 | 1198 |
TFH2480ZBR | 1625 | 2200 | 3.9 | 380 | 60 | 2.79 | 4.33 | 1639 | |
TFH2511ZBR | 1625 | 2250 | 3.9 | 380 | 60 | 3.64 | 5.43 | 2031 | |
TAG2516ZBR | 1960 | 4800 | 6 | 380 | 106 | 5.18 | 10.7 | 3151 | |
TAG2522ZBR | 1960 | 4800 | 6 | 380 | 110 | 6.09 | 14.9 | 3799 | |
Model | Europe Tecumseh Condensing unit assembly size and electrical performance table | ||||||||
Dimensions | GAS | Cylinder displacement cm³ | picture | ||||||
A | B | C | D | E | F | ||||
mm | mm | mm | mm | mm | mm | ||||
CAJ2446ZBR | 310 | 485 | 340 | 430 | 310 | 385 | R404A | 26.15 | 5 |
CAJ/TAJ2446ZBR | 310 | 490 | 340 | 430 | 310 | 385 | R404A | 34.45 | 5 |
TFH2480ZBR | 415 | 630 | 450 | 510 | 430 | 190 | R404A | 53.2 | 8 |
TFH2511ZBR | 415 | 630 | 450 | 510 | 430 | 190 | R404A | 74.25 | 8 |
TAG2516ZBR | 452 | 618 | 469 | 1002 | 405 | 854 | R404A | 112.5 | 11 |
TAG2522ZBR | 464 | 642 | 469 | 1002 | 405 | 854 | R404A | 134.8 | 11 |
- We can supply Copeland compressor, ZR, ZB, ZF,ZH, CR,VR, QR series etc, all models on sale.
- We can supply compressor, SM, SY, SZ, MT, MTZ, SH, LTZ, MTM, SC series etc, all models on sale.
- We can supply Maneurop compressor, all models on sale.
- We can supply Performer compressor, all models on sale.
- We can supply Sanyo compressor, all models on sale.
- We can supply Tecumseh compressor, all models on sale.
- We can supply Daikin compressor, all models on sale.
- We can supply Hitachi compressor, all models on sale.
- We can supply Bristol compressor, all models on sale.
- We can supply Carrier compressor, all models on sale.
- We can supply Panasonic/Matsushita compressor, all models on sale.
- We can supply Mitsubishi compressor, all models on sale.
- We can supply Toshiba compressor, all models on sale.
- We can supply Bizter compressor, all models on sale.
Refrigeration industry, cold storage engineering; Agriculture, food, restaurant, chemical industry; we can undertake designs according to customer's requirements.
B. Excellent warranty
KUB provides up to one year warranty period. If there is any product quality problems, we will return processing, and is responsible in the end.
We provide excellent service to solve your worries.
Shanghai KUB Refrigeration Equipment Co., Ltd is an advanced enterprise specializing in design,
manufacture and trade of refrigeration equipment.
Founded in 2000 We have adopted internationally advanced technology to meet all the different needs of our
diverse customers.
Main products include: box type & open type condensing units,air cooled,water cooled condensing units,
mono block split type condensing units, low temperature screw condensing units,compressor racks, industrial chillers,D-series air coolers,double side blowing air coolers,water defrosting air coolers, air cooled condenser,
tube-shell water cooled condensers, tube-shell evaporator and electrical control boxes,etc.
All of our units adopt world famous brand compressors such as KUB,Carrier,Carlyle , Copeland,
Emerson,Maneurop,Tecumseh,danfoss etc.,with excellent performance a beautiful appearance.
They are widely used in cold storage, hotels,industrial processes,medical industries, chemical industries,refrigerated trucks,vessel industries all other places where cold storage is needed.
Our products and solutions have been widely applied in the fast-growing Chinese market,providing tens of
thousands of industrial equipment in machinery,electronics,plastics, textile, food,medical,chemical industry andrenewable energy and related fields.
KUB is widely recognized and respected by manufacturers,technicians and end users in the industry.
We export our products all over the world to countries in locations such as Europe,Middle East,Southeast
Asia, Africa,etc. and we support our customers with high quality products and turnkey solutions.

Cold storage refrigeration condensing air-cooled unit :
The company has advanced information network technology and excellent location, a sound management system and modern means of communication and multi-faceted services. We insist on everything from the actual needs of customers, the implementation of the entire transport monitoring service is available 24 hours a day. These are the goods on time, safe, efficient destination to provide effective protection.
