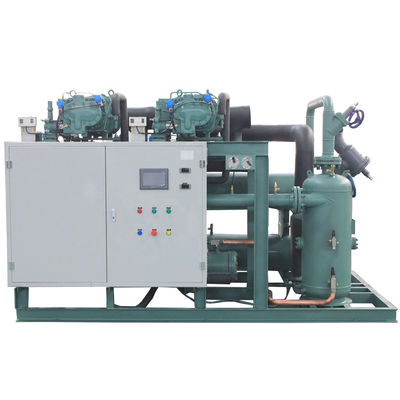

Refrigeration Cold Storage Semi Hermetic Condensing Unit HSN7471-75Y
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Water Cooled Shell | Voltage | 380v-420v /3 Ph / 50Hz |
|---|---|---|---|
| Overall Size | 3800*1700*1900mm | Temperature | -15℃~-40℃ |
| Refrigerant | R404A | Conditon | New |
| High Light | Cold Storage Semi Hermetic Condensing Unit,Refrigeration Semi Hermetic Condensing Unit,R404A Semi Hermetic Condensing Unit |
||
Product Description
compressor HSN7471-75Y refrigeration cold storage machinery with electrical control boxes
Ø Our competent professionals focus on providing clients one-step solution, as well as the concerns on service of environmental protection and client's benefits.
Ø Our teams, containing excellent experienced technicians, always provide top quality solution.
Ø Our purpose is: Leading innovation, Creating Value
Product Description
Main Features
1) Compared with the reciprocating piston compressor, less internal moving parts, more reliable and long life, reduce maintenance coasts.
2) Excellent configuration, main refrigeration fittings and control components are adopted world famous brand, high reliability.
3) All this series products have a complete set protection devices for compressor wrong direction, over heating, over loading, over discharging temperature, low oil level, over high/low pressure of oil flow etc.
4) Matched with economizer regulation, energy can be adjusted according to the change of cooling capacity, effective energy-saving
5) Heat recovery system is optional, reduce exhaust overheat can further reduce the running cost, the recycled hot water can be applied to various places.
|
Specifications for 2-150hp water cooled screw condensing unit
|
||||
|
|
Brand
|
Original
|
||
|
Model
|
HSN7471-75Y*2 SET
|
|||
|
Refrigerant
|
R404a
|
|||
|
Cooling Cpacity
|
240.6kw(-20℃, 40℃)
|
Power Input
|
126.6kw
|
|
|
200.8kw(-25℃, 40℃)
|
121.4kw
|
|||
|
153.2kw(-32℃, 40℃)
|
114kw
|
|||
|
124.4kw(-37℃, 40℃)
|
109kw
|
|||
|
86kw(-45℃, 40℃)
|
101.4kw
|
|||
|
Condenser
|
Type
|
Water cooled
|
||
|
Cooling Water
|
46 cubic meters/h
|
|||
|
Model
|
Shell Tube Type
|
|||
|
Pipe connection
|
DN100
|
|||
|
PLC Box
|
PLC Controller
|
Siemens
|
||
|
Touch Screen
|
Weinview
|
|||
|
Other parts(breaker/AC contactor/Thermal relay)
|
Schneider
|
|||
|
Others
|
Solenoid Valve
|
|
||
|
Expansion Valve
|
|
|||
|
Economiser
|
Alfa Laval
|
|||
|
Pressure Sensor
|
DIXELL
|
|||
|
Overall size
|
3800*1700*1900mm
|
|||
|
Weight
|
1100kg
|
|||
