TY2386 Marine Stacked Plate Heat Exchanger 6HP Copper Tube Long Lifespan Reliable

Place of Origin Shanghai, China (Mainland)
Brand Name KUB
Model Number TY2386
Minimum Order Quantity 1Piece/Pieces
Price negotiable
Packaging Details Plywood pallet+Plywood
Supply Ability 500 units per month
Product Details
Type Condenser Application Heater Parts
Refrigerant R-22/R404A Material Copper Tube + Steel Tube
High Light

heat transfer exchanger

,

plate shell heat exchanger

Leave a Message
Product Description

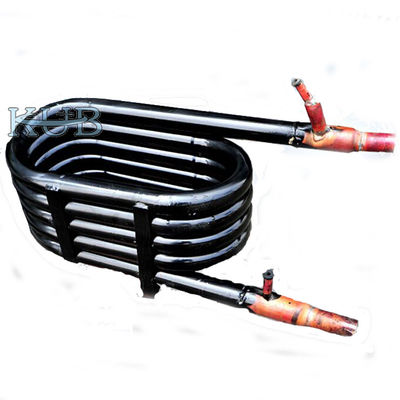

TY2386 Marine air conditioning condenser 6hp Copper tube steel tube casing is water condenser


Note: When working as a condenser, different working conditions, as long as the logarithmic mean temperature difference is similar, the heat transfer effect is also close, and the heat transfer effect of the casing inlet water temperature is slightly worse.
Working condition:
When the refrigerant to be cooled is discharged from the compressor, the inter-tube cavity of the casing flows downward from the casing in a high-temperature and high-pressure gas state, and water is used as a cooling medium under the pressure of the water pump to be relatively low temperature. Between the inner tubes of the casing, the casing flows upward from below. Under the condition of high and low temperature difference, the two mediums transmit heat through reverse convection under forced pressure through the heat transfer tube wall; and due to the interaction between the spiral structure of the casing and the threaded structure of the casing inner tube, Exuberant turbulence for efficient heat transfer, so that heat is exchanged for work purposes
Coding principle for casing products







Models Refrigerant
Connection
In/out
Water
Connection
In/out
Dimensions
Length Height Width
TY2252 9.52 19 390 114 180
TY2253 9.52 19 390 140 180
TY2254 9.52 19 390 166 180
TY2284 12.7/9.52 22 364 145 172
TY2385 16/12.7 28 400 275 230
TY2386 16 28 400 313 230
TY2387 19 28 400 351 230



TY3252 9.52 19 300 85 250
TY3253 9.52 19 310 110 250
TY3254 9.52 19 310 135 250
TY3284 12.7/9.52 22 340 146 270
TY3385 16/12.7 28 450 191 326
TY3386 16 28 450 229 326
TY3387 19 28 450 367 326

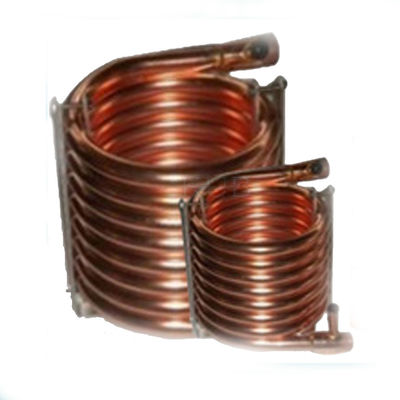

copper refrigerator freezer condenser coil

copper refrigerator freezer condenser coil

 copper refrigerator freezer condenser coil

condenser
