| Place of Origin: | Shanghai, China (Mainland) |
| Brand Name: | KUB |
| Certification: | CE |
| Model Number: | MGM64 |
| Minimum Order Quantity: | 1 Piece/Pieces |
|---|---|
| Price: | negotiable |
| Packaging Details: | Plywood pallet+Plywood |
| Supply Ability: | 50 units per month |
| Compressor: | Maneurop Compressor | Product Name: | Open Chiller |
|---|---|---|---|
| Voltage: | 380v-420v /3 Ph / 50Hz | Horsepower: | 5hp |
MGM64 MT64 Water Cooled Condensing Units water chiller price freeze compressor unit for refrigeration cold room
Description

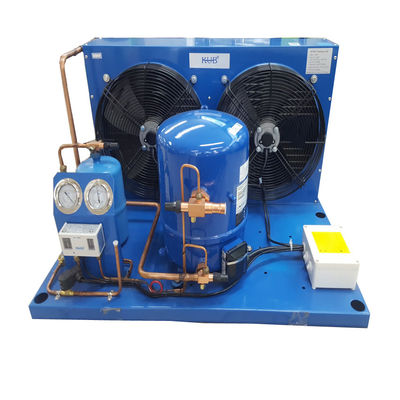

Maneurop open type condensing unit is with original Maneurop hermetic reciprocating compressor. Air cooled and water cooled are optional. Widely used for cold room in food industry. Specially for vegetable preservation, to keep it fresh.
Feature
1. The condensing unit is with Maneurop hermetic reciprocating compressor
2. With full range, air cooled & water cooled.
3. All the accessories are world famous brand, which with reliable quality.
4. Testing condition: ambient temperature 35oc, condensing temperature 50oc
5. Wide application, suitable for different refrigerant.
6. Optional configuration is acceptable.
| Model | Volt | G as | W (refrigerating capacity) |
KW (Input) |
A | COP (W/W) |
Cylinder number |
Fuel charge |
KG/PC |
| MT18-4VM | 380V | R22 | 3881 | 1.45 | 2.73 | 2.68 | 1 | 0.95 | 22 |
| MT22-4VM | 380V | R22 | 5363 | 1.89 | 3.31 | 2.84 | 1 | 0.95 | 23 |
| MT22-5VM | 220V | R22 | 5363 | 1.89 | 3.31 | 2.84 | 1 | 0.95 | 23 |
| MT28-4VM | 380V | R22 | 7378 | 2.55 | 4.56 | 2.89 | 1 | 0.95 | 24.5 |
| MT28-5VM | 220V | R22 | 7378 | 2.55 | 4.56 | 2.89 | 1 | 0.95 | 23 |
| MT32-4VM | 380V | R22 | 8064 | 2.98 | 4.97 | 2.7 | 1 | 0.95 | 25 |
| MT36-4VM | 380V | R22 | 9272 | 3.37 | 5.77 | 2.75 | 1 | 0.95 | 25.5 |
| MT36-5VM | 220V | R22 | 9272 | 3.37 | 5.77 | 2.75 | 1 | 0.95 | 25.5 |
| MT40-4VM | 380V | R22 | 10475 | 3.85 | 6.47 | 2.72 | 1 | 0.95 | 26 |
| MT44-4VM | 380V | R22 | 11037 | 3.89 | 7.37 | 2.84 | 2 | 1.8 | 36 |
| MT50-4VM | 380V | R22 | 12324 | 4.32 | 8.46 | 2.85 | 2 | 1.8 | 37 |
| MT56-4VM | 380V | R22 | 13771 | 5.04 | 10.27 | 2.73 | 2 | 1.8 | 37 |
| MT64-4VM | 380V | R22 | 15820 | 5.66 | 9.54 | 2.79 | 2 | 1.8 | 37.5 |
| MT72-4VM | 380V | R22 | 17124 | 6.31 | 10.54 | 2.71 | 2 | 1.8 | 39 |
| MT80-4VM | 380V | R22 | 19534 | 7.13 | 11.58 | 2.74 | 2 | 1.8 | 42 |
| MT100-4VM | 380V | R22 | 23403 | 7.98 | 14.59 | 2.93 | 4 | 3.9 | 66.5 |
| MT125-4VM | 380V | R22 | 30429 | 10.66 | 17.37 | 2.85 | 4 | 3.9 | 68 |
| MT160-4VM | 380V | R22 | 38273 | 13.39 | 22.16 | 2.86 | 4 | 3.9 | 69 |
| MTZ18-4VM | 380V | R404A/R507 | 1865 | 1.2 | 2.47 | 1.56 | 1 | 0.95 | 22 |
| MTZ22-4VM | 380V | R404A/R507 | 2673 | 1.56 | 2.96 | 1.71 | 1 | 0.95 | 23 |
| MTZ22-5VM | 220V | R404A/R507 | 2673 | 1.56 | 2.96 | 1.71 | 1 | 0.95 | 23 |
| MTZ28-4VM | 380V | R404A/R507 | 3343 | 1.95 | 3.8 | 1.72 | 1 | 0.95 | 23 |
| MTZ28-5VM | 220V | R404A/R507 | 3343 | 1.95 | 3.8 | 1.72 | 1 | 0.95 | 24.5 |
| MTZ32-4VM | 380V | R404A/R507 | 3747 | 2.28 | 4.51 | 1.64 | 1 | 0.95 | 25 |
| MTZ36-4VM | 380V | R404A/R507 | 4371 | 2.66 | 4.91 | 1.64 | 1 | 0.95 | 25.5 |
| MTZ36-5VM | 220V | R404A/R507 | 4371 | 2.66 | 4.91 | 1.64 | 1 | 0.95 | 25.5 |
| MTZ40-4VM | 380V | R404A/R507 | 4889 | 3 | 5.36 | 1.63 | 1 | 0.95 | 26 |
| MTZ44-4VM | 380V | R404A/R507 | 5152 | 3.16 | 6.37 | 1.63 | 2 | 1.8 | 36 |
| MTZ50-4VM | 380V | R404A/R507 | 6152 | 3.61 | 6.53 | 1.7 | 2 | 1.8 | 37 |
| MTZ56-4VM | 380V | R404A/R507 | 7001 | 4 | 7.07 | 1.75 | 2 | 1.8 | 37 |
| MTZ64-4VM | 380V | R404A/R507 | 8132 | 4.54 | 8.3 | 1.79 | 2 | 1.8 | 37.5 |
| MTZ72-4VM | 380V | R404A/R507 | 9153 | 4.99 | 8.64 | 1.84 | 2 | 1.8 | 39 |
| MTZ80-4VM | 380V | R404A/R507 | 10524 | 5.84 | 10.12 | 1.8 | 2 | 1.8 | 42 |
| MTZ100-4VM | 380V | R404A/R507 | 12020 | 6.83 | 12.16 | 1.76 | 4 | 3.9 | 66.5 |
| MTZ125-4VM | 380V | R404A/R507 | 15714 | 8.53 | 13.85 | 1.84 | 4 | 3.9 | 68 |
| MTZ144-4VM | 380V | R404A/R507 | 18076 | 9.74 | 16.25 | 1.86 | 4 | 3.9 | 69 |
| MTZ160-4VM | 380V | R404A/R507 | 20253 | 11 | 17.94 | 1.84 | 4 | 3.9 | 69 |
| Code no. | HP | MT-R22 | MTZ-R407C | MTZ-R134a | MTZ-R404 | ||||||||
| Kw | BTUH | EER | Kw | BTUH | EER | Kw | BTUH | EER | Kw | BTUH | EER | ||
| MT/MTZ18 | 1.5 | 1.74 | 15900 | 9.15 | 1.67 | 15300 | 9.13 | 1.22 | 11200 | 9.2 | 1.76 | 10300 | 5.1 |
| MT/MTZ22 | 2 | 2.27 | 22000 | 9.68 | 2.17 | 19600 | 9 | 1.54 | 14800 | 9.63 | 2.05 | 14100 | 6.01 |
| MT/MTZ28 | 2.5 | 3.07 | 30200 | 9.86 | 2.83 | 25100 | 8.9 | 2.04 | 19300 | 9.42 | 2.68 | 18300 | 5.96 |
| MT/MTZ32 | 2.75 | 3.58 | 33000 | 9.22 | 3.21 | 28400 | 8.86 | 2.39 | 20900 | 8.76 | 2.99 | 20100 | 5.85 |
| MT/MTZ36 | 3 | 4.05 | 38000 | 9.38 | 3.75 | 32700 | 8.73 | 2.75 | 24500 | 8.91 | 3.34 | 23200 | 6.05 |
| MT/MTZ40 | 3.5 | 4.63 | 42900 | 9.27 | 4.33 | 37400 | 8.64 | 3.08 | 27900 | 9.03 | 3.77 | 26400 | 6.11 |
| MT/MTZ44 | 4 | 4.67 | 45200 | 9.69 | 4.37 | 43000 | 9.84 | 3.14 | 29800 | 9.51 | 4.18 | 27800 | 6.65 |
| MT/MTZ50 | 4.5 | 5.18 | 50500 | 9.74 | 4.96 | 48100 | 9.71 | 3.6 | 34500 | 9.57 | 4.83 | 32500 | 6.73 |
| MT/MTZ56 | 5 | 6.05 | 56400 | 9.32 | 5.67 | 54300 | 9.59 | 3.95 | 38000 | 9.62 | 5.44 | 36500 | 6.71 |
| MT/MTZ64 | 5.5 | 6.8 | 64800 | 9.53 | 6.36 | 60400 | 9.5 | 4.68 | 45300 | 9.66 | 6.12 | 41500 | 6.78 |
| MT/MTZ72 | 6 | 7.58 | 70100 | 9.26 | 7.22 | 67900 | 9.41 | 5.19 | 50000 | 9.63 | 6.91 | 46500 | 6.72 |
| MT/MTZ80 | 7 | 8.56 | 80000 | 9.35 | 8.24 | 76900 | 9.33 | 6 | 56500 | 9.42 | 8.03 | 52500 | 6.54 |
| MT/MTZ100 | 9 | 9.59 | 95900 | 10 | 9.9 | 94400 | 9.53 | 6.5 | 63900 | 9.84 | 8.72 | 60800 | 6.07 |
| MT/MTZ125 | 10 | 12.81 | 124600 | 9.73 | 12.62 | 122100 | 9.67 | 7.72 | 78900 | 10.2 | 11.37 | 78400 | 6 |
| MT/MTZ144 | 12 | 14.36 | 140700 | 9.8 | 14.47 | 137200 | 9.48 | 9.82 | 96900 | 9.87 | 13 | 92300 | 6.19 |
| MT/MTZ160 | 13.5 | 16.09 | 156800 | 9.75 | 16.67 | 155100 | 9.31 | 10.92 | 107600 | 9.85 | 14.74 | 100300 | 5.93 |
