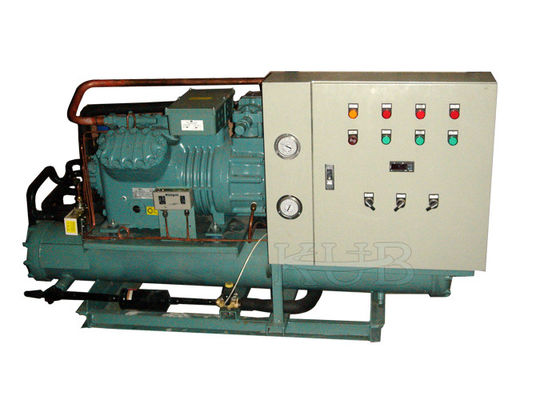

4DES-5Y Water Cooling Unit , Semi Enclosed Compressor Water Condensing Unit 5HP Long Lifespan

4DES-5Y Water Cooling Unit , Semi Enclosed Compressor Water Condensing Unit 5HP Long Lifespan

    • 4DES-5Y Water Cooling Unit , Semi Enclosed Compressor Water Condensing Unit 5HP Long Lifespan
    • 4DES-5Y Water Cooling Unit , Semi Enclosed Compressor Water Condensing Unit 5HP Long Lifespan
    • 4DES-5Y Water Cooling Unit , Semi Enclosed Compressor Water Condensing Unit 5HP Long Lifespan
    • 4DES-5Y Water Cooling Unit , Semi Enclosed Compressor Water Condensing Unit 5HP Long Lifespan
    • 4DES-5Y Water Cooling Unit , Semi Enclosed Compressor Water Condensing Unit 5HP Long Lifespan
  • 4DES-5Y Water Cooling Unit , Semi Enclosed Compressor Water Condensing Unit 5HP Long Lifespan

    Product Details:

    Place of Origin: Shanghai China
    Brand Name: KUB
    Certification: SGS CE
    Model Number: 4DES-5Y

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: Plywood pallet+Plywood
    Supply Ability: 50 units per month
    Contact Now
    Detailed Product Description
    Refrigerant: R22 Voltage: 380V/3PH/50hz
    Horsepower: 5HP Compressor Type: Semi-hermetic Compressor
    Compressor Brand: Bitzer Warranty: 1 Year
    Size: 1080*350*760mm Weight: 225KG

    4DES-5Y 5HP refrigeration coolroom condensing unit manufacturer Water Cooled Condensing Units

    Overall dimension and main technical parameters of water-cooled condensing unit



    Note:
    1 : Solenoid valve
    2 : Dry filter
    3 : Filtrate stop valve
    4 : Shell-tube type water-cooled condenser
    5 : Water inlet
    6 : Water outlet
    7 : Oil separator
    8 : Piston-type Semi-enclosed compressor
    9 : Pressure gauge
    10: Pressure controller
    11: Grounding mark



    Model Condenser Overall dimensions Installing Connecting tube Weight
    Water Model   A B C E F Air inlet Liquid
    m³/h inch(in) mm mm mm mm mm φ(mm) φ(mm) Kg
    2DES-3Y 1.7 SLKD-003/B 1" 827 330 660 500 280 22 12 125
    2CES-4Y 2.6 SLKD-005/B 1-1/2" 827 330 660 500 280 22 12 128
    4FES-5Y 2.6 SLKD-005/B1 1-1/2" 827 330 660 500 280 22 12 146
    4DES-7Y 3.9 SLKD-008/B1 1-1/2" 927 330 715 600 280 28 16 154
    4VES-10Y 7.6 SLKD-015/B1 2" 1250 380 760 900 330 28 16 218
    4PES-15Y 8.9 SLKD-020/B1 2" 1250 380 760 900 330 42 22 264
    4NES-20Y 8.9 SLKD-020/B1 2" 1250 380 760 900 330 42 22 271
    4HE-25Y 12.2 SLKD-030/B1 2" 1650 380 810 1100 330 54 28 350
    4GE-30Y 14.7 SLKD-035/B1 2-1/2" 1621 380 810 1100 330 54 28 370
    6GE-40Y 20.7 SLKD-050/B1 2-1/2" 1850 430 860 1300 380 54 35 455
    6FE-50Y 27 SLKD-060/B1 2-1/2" 1850 430 860 1300 380 54 35 474
