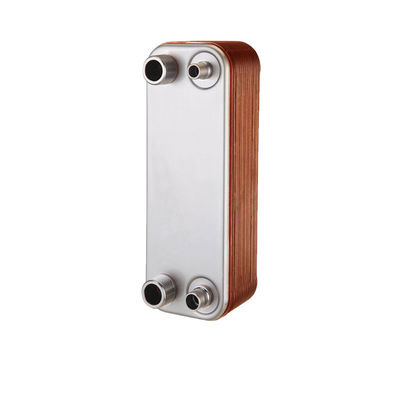

ZL26-60 Material 304 stainless steel plate heat exchanger design pressure 3 MPa

Place of Origin Shanghai, China (Mainland)
Brand Name KUB
Certification CE
Model Number ZL26-60
Minimum Order Quantity 10
Price negotiable
Packaging Details Plywood
Payment Terms L/C, T/T, Western Union
Supply Ability 500 units per month
Product Details
Condition New Structure Plate Heat Exchanger
Liquid Flow Rate 0.2-1.0m/s Maximum Working Pressure Variable
Voltage 380V Weight 5-500KG
Dimension(L*W*H) Customiz Plate Heat Exchanger Warranty One Year
Product Name Plate Heat Exchanger Application Heat Transfer
Material Stainless Steel 304 Keyword Heat Exchanger
Connection Type Custermized Packing Wooden Box
High Light

plate shell heat exchanger

,

high efficiency heat exchanger

Leave a Message
Product Description

ZL26-60 Material 304 stainless steel plate heat exchanger design pressure 3 MPa

Production plant, custom production



Product name small heat exchanger
Model ZL26-60
Brand KUB
A brazed plate heat exchanger consists of a pack of thin corrugated metal plates. A thin copper foil is placed between each plate. The assembly is placed in a high temperature vacuum furnace in which the copper foil melts and brazes two adjacent plates together. The melted foil also seals the channel formed between two plates. In order to retain high internal pressure, two thicker front and end plates are normally brazed to both sides of the plate pack.

VRP Series have 3 flow paths:

H=higher heat transfer efficiency, higher pressure loss

M=medium heat transfer efficiency, medium pressure loss

L=Lower heat transfer efficiency, lower pressure loss.

1.Plate material :AISI304 or AISI316L

2.Brazing material:Nickel or Copper

3.Design Parameter:Brazing design pressure3.0Mpa

Testing pressure 4.5Mpa

Design temperature -160 °C-225 °C


□ To provide customers with the optimal design and model selection services of brazed plate
heat exchanger and removable plate-typ,, exchanger
a To provlde customers with brazed plate heat exchangers and removable plate-type exchangers
a To provide customers with installation. cleaning, maintenance and technical consullation s of
brazed plate heat exchangers and removable plate-type exchangers
a To provide customers with components and replacement of parts for various kinds of
removable plate-type exchangers
□ To provide customers with components mold-manufacturing and spcialspec brazed removale
heat exchangers and related services of various kinds of removable plate-type exchangers

-20~+45℃ Intelligent Integrate Commercial Refrigeration Condensing Units 3HP R404a For Cold Room Storage KB030RLE 3



Our Services
A. Individuation & Customization

Refrigeration industry, cold storage engineering; Agriculture, food, restaurant, chemical industry; we can undertake designs according to customer's requirements.



B. Excellent warranty

KUB provides up to one year warranty period. If there is any product quality problems, we will return processing, and is responsible in the end.

We provide excellent service to solve your worries.



Shanghai KUB Refrigeration Equipment Co., Ltd is an advanced enterprise specializing in design,

manufacture and trade of refrigeration equipment.

Founded in 2000 We have adopted internationally advanced technology to meet all the different needs of our

diverse customers.

Main products include: box type & open type condensing units,air cooled,water cooled condensing units,

mono block split type condensing units, low temperature screw condensing units,compressor racks, industrial chillers,D-series air coolers,double side blowing air coolers,water defrosting air coolers, air cooled condenser,

tube-shell water cooled condensers, tube-shell evaporator and electrical control boxes,etc.

All of our units adopt world famous brand compressors such as KUB,Carrier,Carlyle , Copeland,

Emerson,Maneurop,Tecumseh,danfoss etc.,with excellent performance a beautiful appearance.

They are widely used in cold storage, hotels,industrial processes,medical industries, chemical industries,refrigerated trucks,vessel industries all other places where cold storage is needed.

Our products and solutions have been widely applied in the fast-growing Chinese market,providing tens of

thousands of industrial equipment in machinery,electronics,plastics, textile, food,medical,chemical industry andrenewable energy and related fields.

KUB is widely recognized and respected by manufacturers,technicians and end users in the industry.

We export our products all over the world to countries in locations such as Europe,Middle East,Southeast

Asia, Africa,etc. and we support our customers with high quality products and turnkey solutions.



Packaging & Shipping

Cold storage refrigeration condensing air-cooled unit :

The company has advanced information network technology and excellent location, a sound management system and modern means of communication and multi-faceted services. We insist on everything from the actual needs of customers, the implementation of the entire transport monitoring service is available 24 hours a day. These are the goods on time, safe, efficient destination to provide effective protection.
