FNH Small Plate Heat Exchanger , High Efficiency Heat Exchanger Air Cooled Copper Tube
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Liquid Flow Rate | 0.1~10 M/s | Maximum Working Pressure | 1.6Mpa |
|---|---|---|---|
| Voltage | 220/380V | Weight | 3 - 81 Kg |
| Power(W) | 0.5~100 Kw | Warranty | One Year |
| Name | Air Cooled Condenser | Material | High Quality Aluminum Coating |
| High Light | plate shell heat exchanger,high efficiency heat exchanger |
||
Product Description

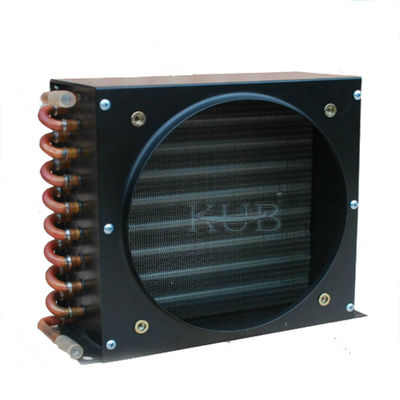

FNH small air cooled evaporator condensing unit condenser Copper tube aluminum fin condenser
Air cooled condenser
ü FNH-type air-cooled condenser designed with a fully enclosed, semi-hermetic compressor supporting the use of the condenser. Heat transfer area of 2 square meters to 170 square meters.
ü FNH-type air-cooled condenser horizontal blowing or sucking style.
ü Efficient heat coils, clean and dry.
ü L-shaped aluminum fins extending turn punching sheet, aluminum fins distance from the bottom of the blade is greater than 1/3 the diameter of the fan, make sure to reach an effective amount of wind.
ü Shell using spray treatment anti-corrosion and durable.
ü Special-purpose products, please contact me.
Our Services
FNH type Air cooled condenser
1. Individuation & Customization
Refrigeration industry, cold storage engineering; Agriculture, food, restaurant, chemical industry; we can undertake designs according to customer's requirements.
2. Excellent warranty
KUB provides up to one year warranty period. If there is any product quality problems, we will return processing, and is responsible in the end.
We provide excellent service to solve your worries.
Packaging & Shipping
The company has advanced information network technology and excellent location, a sound management system and modern means of communication and multi-faceted services. We insist on everything from the actual needs of customers, the implementation of the entire transport monitoring service is available 24 hours a day. These are the goods on time, safe, efficient destination to provide effective protection.
FAQ
Air cooled condenser
1. How do you confirm the quality of your products
KUB provides up to one year warranty period. If there is any product quality problems, we will return processing, and is responsible in the end.
We provide excellent service to solve your worries.
2. Why your products are competitive?
We have our own casting factory, it can help us to reduce the costs and save a lot of intermediate links.
3. What accessories within KUB refrigeration unit?
Compressors, condensers, motors, reservoir, filter drier, oil separator (optional), gas-liquid separator (optional), solenoid valves, pressure controllers, the sight glass (optional), pressure gauge , valves, junction boxes, brass floor joints. Where optional, do not require a surcharge on the standard unit.
| Model | Main parameters | Parameters of fan motor | Caliber of connecting tube | Category | ||||||
| Heat removal quantity | Condensing area | Diameter of fan blade | Quantity | Total air volume | Power | Voltage | Inlet | Outlet | This company can design and produce special non-standard products for customers | |
| W | ㎡ | ￠mm | N | M3/h | W | V | ￠mm | ￠mm | ||
| FNH-0.6/2 | 581 | 2.0 | 200 | 1 | 430 | 35 | 220 | 10 | 10 | |
| FNH-1.0/3.4 | 988 | 3.4 | 200 | 1 | 430 | 35 | 220 | 10 | 10 | |
| FNH-1.2/4.0 | 1160 | 4.0 | 200 | 1 | 430 | 35 | 220 | 10 | 10 | |
| FNH-1.3/4.4 | 1279 | 4.4 | 250 | 1 | 910 | 60 | 220 | 10 | 10 | |
| FNH-1.5/5.2 | 1512 | 5.2 | 300 | 1 | 1530 | 75 | 220 | 10 | 10 | |
| FNH-2.0/7 | 2035 | 7.0 | 300 | 1 | 1530 | 75 | 220 | 12 | 12 | |
| FNH-2.4/8.4 | 2436 | 8.4 | 300 | 1 | 1530 | 75 | 220 | 12 | 12 | |
| FNH-3.1/10.6 | 3074 | 10.6 | 300 | 1 | 1530 | 75 | 220 | 12 | 12 | |
| FNH-2.9/10 | 2900 | 10 | 350 | 1 | 1800 | 90 | 380 | 16 | 12 | |
| FNH-3.5/12 | 3480 | 12 | 350 | 1 | 1800 | 120 | 380 | 16 | 12 | |
| FNH-4.4/15 | 4350 | 15 | 350 | 1 | 1800 | 120 | 380 | 16 | 12 | |
| FNH-5.2/18 | 5220 | 18 | 400 | 1 | 3000 | 120 | 380 | 16 | 12 | |
| FNH-6.4/22A | 6380 | 22 | 400 | 1 | 3000 | 120 | 380 | 16 | 12 | |
| FNH-7.8/27 | 7830 | 27 | 400 | 1 | 3000 | 120 | 380 | 19 | 16 | |
| FNH-6.4/22B | 6380 | 22 | 350 | 2 | 3600 | 2*120 | 380 | 16 | 12 | |
| FNH-8.1/28 | 8120 | 28 | 350 | 2 | 3600 | 2*120 | 380 | 19 | 14 | |
| FNH-9.6/33 | 9570 | 33 | 400 | 2 | 6000 | 2*120 | 380 | 19 | 14 | |
| FNH-12.2/42 | 12180 | 42 | 400 | 2 | 6000 | 2*120 | 380 | 19 | 16 | |
| FNH-15/52 | 15080 | 52 | 400 | 2 | 6000 | 2*120 | 380 | 19 | 16 | |
| FNH-17/60 | 17400 | 60 | 450 | 2 | 9000 | 2*180 | 380 | 22 | 19 | |
| FNH-20/70 | 20300 | 70 | 450 | 2 | 9000 | 2*180 | 380 | 25 | 19 | |
| FNH-23/80 | 23200 | 80 | 450 | 2 | 9000 | 2*180 | 380 | 25 | 19 | |
| FNH-29/100 | 29000 | 100 | 500 | 2 | 13140 | 2*450 | 380 | 25 | 19 | |
| FNH-32/110 | 31900 | 110 | 500 | 2 | 13140 | 2*450 | 380 | 30 | 19 | |
| FNH-35/120 | 34800 | 120 | 550 | 2 | 17440 | 2*600 | 380 | 30 | 19 | |
| FNH-39/135 | 39150 | 135 | 550 | 2 | 17440 | 2*600 | 380 | 30 | 19 | |
| FNH-45/155 | 44950 | 155 | 600 | 2 | 21640 | 2*780 | 380 | 30 | 22 | |
| FNH-49/170 | 49300 | 170 | 600 | 2 | 21640 | 2*780 | 380 | 30 | 22 | |
| Model | copper tubes | Dimensions | Mounting dimensions | Coupling dimensions | Dimensions of fan arrangement | |||||||
|
Row numbe × Number of rings |
L | B | H | D | E | C | A | K | G | P | M | |
| N×W | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| FNH-0.6/2 | 2×4 | 250 | 120 | 240 | 275 | 70 | 9 | 200 | 24 | 115 | 125 | |
| FNH-1.0/3.4 | 3×4 | 250 | 120 | 240 | 275 | 70 | 9 | 200 | 24 | 115 | 125 | |
| FNH-1.2/4.0 | 3×4.5 | 300 | 120 | 255 | 290 | 90 | 6 | 225 | 24 | 128 | 150 | |
| FNH-1.3/4.4 | 3×5 | 325 | 120 | 280 | 290 | 70 | 6 | 250 | 24 | 140 | 162 | |
| FNH-1.5/5.2 | 3×6 | 370 | 130 | 340 | 370 | 100 | 6 | 290 | 25 | 170 | 185 | |
| FNH-2.0/7 | 4×6 | 370 | 150 | 340 | 370 | 120 | 6 | 290 | 25 | 170 | 185 | |
| FNH-2.4/8.4 | 3×6 | 450 | 170 | 350 | 475 | 120 | 9 | 275 | 44 | 175 | 225 | |
| FNH-3.1/10.6 | 4×6 | 450 | 170 | 350 | 475 | 120 | 9 | 275 | 44 | 175 | 225 | |
| FNH-2.9/10 | 3×8 | 450 | 170 | 420 | 475 | 120 | 9 | 375 | 30 | 210 | 225 | |
| FNH-3.5/12 | 4×8 | 440 | 180 | 420 | 430 | 130 | 9 | 320 | 50 | 210 | 220 | |
| FNH-4.4/15 | 4×9 | 490 | 180 | 470 | 480 | 130 | 9 | 370 | 50 | 235 | 245 | |
| FNH-5.2/18 | 4×10 | 530 | 180 | 520 | 520 | 130 | 11 | 420 | 50 | 260 | 265 | |
| FNH-6.4/22A | 5×10 | 530 | 200 | 520 | 520 | 150 | 11 | 420 | 50 | 260 | 265 | |
| FNH-7.8/27 | 6×9 | 590 | 240 | 470 | 580 | 190 | 11 | 425 | 35 | 240 | 295 | |
| FNH-6.4/22B | 4×8 | 810 | 180 | 420 | 800 | 130 | 11 | 320 | 50 | 210 | 210 | 400 |
| FNH-8.1/28 | 4×9 | 890 | 180 | 470 | 880 | 130 | 11 | 420 | 50 | 260 | 220 | 430 |
| FNH-9.6/33 | 4×10 | 940 | 180 | 520 | 930 | 130 | 11 | 420 | 50 | 260 | 240 | 450 |
| FNH-12.2/42 | 5×10 | 940 | 200 | 520 | 930 | 150 | 11 | 420 | 50 | 260 | 240 | 450 |
| FNH-15/52 | 5×12 | 940 | 200 | 620 | 930 | 150 | 11 | 500 | 50 | 310 | 240 | 450 |
| FNH-17/60 | 5×12 | 1160 | 240 | 620 | 1150 | 170 | 11 | 500 | 50 | 310 | 220 | 560 |
| FNH-20/70 | 4×14 | 1160 | 240 | 720 | 1150 | 190 | 11 | 500 | 50 | 360 | 240 | 560 |
| FNH-23/80 | 4×16 | 1160 | 240 | 820 | 1150 | 190 | 11 | 500 | 50 | 410 | 220 | 560 |
| FNH-29/100 | 4×17 | 1350 | 260 | 870 | 1340 | 210 | 11 | 500 | 50 | 435 | 240 | 660 |
| FNH-32/110 | 4×18 | 1350 | 260 | 920 | 1340 | 210 | 11 | 500 | 50 | 460 | 240 | 660 |
| FNH-35/120 | 4×20 | 1350 | 260 | 1020 | 1340 | 210 | 11 | 500 | 50 | 510 | 240 | 660 |
| FNH-39/135 | 5×18 | 1350 | 260 | 920 | 1340 | 210 | 11 | 500 | 50 | 460 | 240 | 660 |
| FNH-45/155 | 5×20 | 1400 | 300 | 1020 | 1390 | 250 | 11 | 500 | 50 | 510 | 240 | 680 |
| FNH-49/170 | 5×22 | 1400 | 300 | 1120 | 1390 | 250 | 11 | 500 | 50 | 560 | 240 | 680 |
Our Services
A. Individuation & CustomizationRefrigeration industry, cold storage engineering; Agriculture, food, restaurant, chemical industry; we can undertake designs according to customer's requirements.
B. Excellent warranty
KUB provides up to one year warranty period. If there is any product quality problems, we will return processing, and is responsible in the end.
We provide excellent service to solve your worries.
Shanghai KUB Refrigeration Equipment Co., Ltd is an advanced enterprise specializing in design,
manufacture and trade of refrigeration equipment.
Founded in 2000 We have adopted internationally advanced technology to meet all the different needs of our
diverse customers.
Main products include: box type & open type condensing units,air cooled,water cooled condensing units,
mono block split type condensing units, low temperature screw condensing units,compressor racks, industrial chillers,D-series air coolers,double side blowing air coolers,water defrosting air coolers, air cooled condenser,
tube-shell water cooled condensers, tube-shell evaporator and electrical control boxes,etc.
All of our units adopt world famous brand compressors such as KUB,Carrier,Carlyle , Copeland,
Emerson,Maneurop,Tecumseh,danfoss etc.,with excellent performance a beautiful appearance.
They are widely used in cold storage, hotels,industrial processes,medical industries, chemical industries,refrigerated trucks,vessel industries all other places where cold storage is needed.
Our products and solutions have been widely applied in the fast-growing Chinese market,providing tens of
thousands of industrial equipment in machinery,electronics,plastics, textile, food,medical,chemical industry andrenewable energy and related fields.
KUB is widely recognized and respected by manufacturers,technicians and end users in the industry.
We export our products all over the world to countries in locations such as Europe,Middle East,Southeast
Asia, Africa,etc. and we support our customers with high quality products and turnkey solutions.
Packaging & Shipping
Cold storage refrigeration condensing air-cooled unit :
The company has advanced information network technology and excellent location, a sound management system and modern means of communication and multi-faceted services. We insist on everything from the actual needs of customers, the implementation of the entire transport monitoring service is available 24 hours a day. These are the goods on time, safe, efficient destination to provide effective protection.
