3 Phase Refrigeration Condensing Unit Piston Compressor For Flake Ice Machine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Ambient Temperature | Maximum+450C | Wet Bulb Temperature | Maximum+280C |
|---|---|---|---|
| Power Supply | 380V/3Phase/50Hz | Use Refrigerant | R404a |
| Compressor Type | Piston Compressor | Condenser Type | Air-cooled Condenser |
| Cooling Medium | Air | Compressor | Bizel |
| High Light | 3 Phase Cooler Condenser Unit,Freezer Refrigeration Unit Piston Compressor,Flake Ice Machine Condensing Unit |
||
Product Description

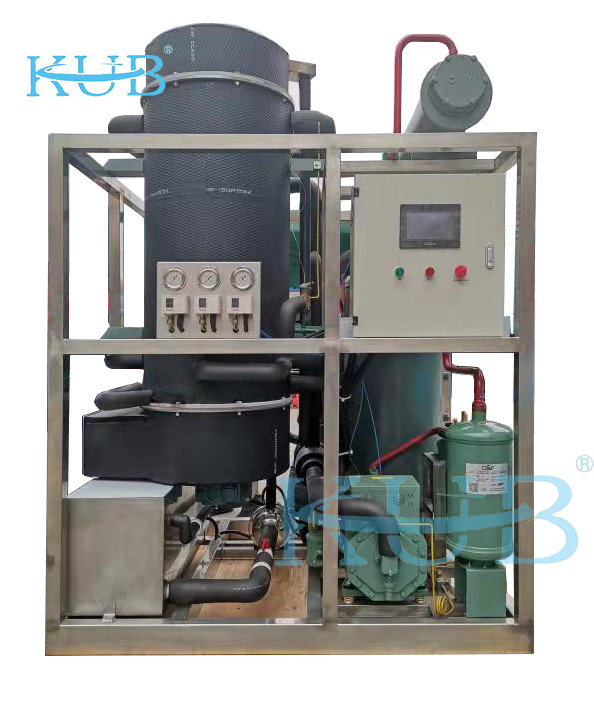

3 Ton tube ice machine Strong Durability 3tons Industrial Commercial ice making Flake ice machine ice maker
The company independently designed flake ice machine, tube ice machine, ice block machine, sea water marine ice machine, square ice machine, ice evaporator, commercial cold storage, container ice machine and other ice making equipment. From 300kg to 60 tons of ice per day, it is suitable for supermarket chilling, hotel catering, food processing, ocean fishing, chemical dyes, medicine and medical treatment, concrete condensation and other industries. Efficient company operation mode, quality control management with everyone's participation, international first-line brand raw materials, Suntech ice-making equipment has been fully recognized by the market, and 260 agent dealers have been developed nationwide.
Main technical parameters of tube ice machine
| Serial number | name | parameter | remarks |
| 1 |
Ice production | 3000kg/24h | |
| 2 |
Refrigerating capacity | 27.7KW | |
| 3 |
Use refrigerant | R404a | |
| 4 |
Total power | 16.4kW | |
| 5 |
Compressor power | 14.5 KW | |
| 6 |
Ice cutting reducer motor power | 0.55 KW | |
| 7 |
Circulating water pump power | 0.55 KW | |
| 8 |
Condenser fan power | 0.8kW | |
| 9 |
Power supply | 380V/3Phase/50Hz | |
| 10 |
Rated current | 15.8 A | |
| 11 |
Ice bucket structure | Full liquid type | |
| 12 |
Evaporation temperature | -15°C | |
| 13 |
Condensation temperature | 40°C | |
| 14 |
Pipe ice temperature | -5°C | |
| 15 |
Pipe ice diameter | Φ28/32 | Optional |
| 16 |
Feed water pressure | 0.1Mpa-0.5Mpa | |
| 17 |
Water supply pipe diameter | 3/4" |
Main accessories of pipe ice machine
| Serial number | name | brand | country of origin | quantity | remarks |
| 1 |
compressor | Bizel | Germany | 1 |
Optional brands |
| 2 |
evaporator | Zehnder ice making | Shenzhen | 1 |
|
| 3 |
condenser | Create excellence | Shenzhen | 1 |
|
| 4 |
Reservoir | Create excellence | Shenzhen | 1 |
|
| 5 |
Gas liquid separator | D&F | Tianjin | 1 |
|
| 6 |
Oil separator | D&F | Tianjin | 1 |
|
| 7 |
ball valve | DANFOSS | Denmark | 7 |
|
| 8 |
Solenoid valve | DANFOSS | Denmark | 4 |
|
| 9 |
Ophthalmoscope | DANFOSS | Denmark | 2 |
|
| 10 |
Return air filter cartridge | D&F | Tianjin | 1 |
|
| 11 |
Drying filter | D&F | Tianjin | 1 |
|
| 12 |
Liquid supply expansion valve | DANFOSS | Denmark | 1 |
|
| 13 |
Hot gas bypass solenoid valve | DANFOSS | Denmark | 1 |
|
| 14 |
heat exchanger | D&F | Tianjin | 1 |
|
| 15 |
Pressure controller | DANFOSS | Denmark | 5 |
|
| 16 |
Pressure gauge | REFCO | Switzerland | 3 |
|
| 17 |
water tank | Zehnder ice making | Shenzhen | 1 |
|
| 18 |
Water pump | Yuanli | Shanghai | 1 |
|
| 19 |
Ice cutter | Zehnder ice making | Shenzhen | 1 |
|
| 20 |
Reducer | Machine tool | Taiwan | 1 |
|
| 21 |
Electric box | Zehnder ice making | Shenzhen | 1 |
|
| 22 |
AC contactor | LG(LS) | the republic of korea | 6 |
|
| 23 |
Thermal relay | LG(LS) | the republic of korea | 6 |
|
| 24 |
Circuit breaker protector | LG(LS) | the republic of korea | 1 |
|
| 25 |
air switch | LG(LS) | the republic of korea | 1 |
