Piston Cold Storage Compressor Semi Hermetic Refrigeration 10HP BF10G2-36.0
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage | 380V/50HZ | Refrigerant | R404A/R507/R22 |
|---|---|---|---|
| MOQ | 1pcs | Warranty | 1 Year |
| Weight (KG) | 300 | Machinery Test Report | Provided |
| Marketing Type | Ordinary Product | After-sales Service Provided | Overseas Third-party Support Available |
| Application | Refrigeration Parts | ||
| High Light | Piston Cold Storage Compressor,Semi Hermetic Cold Storage Compressor,10HP Refrigeration Cold Storage Compressor |
||
Product Description

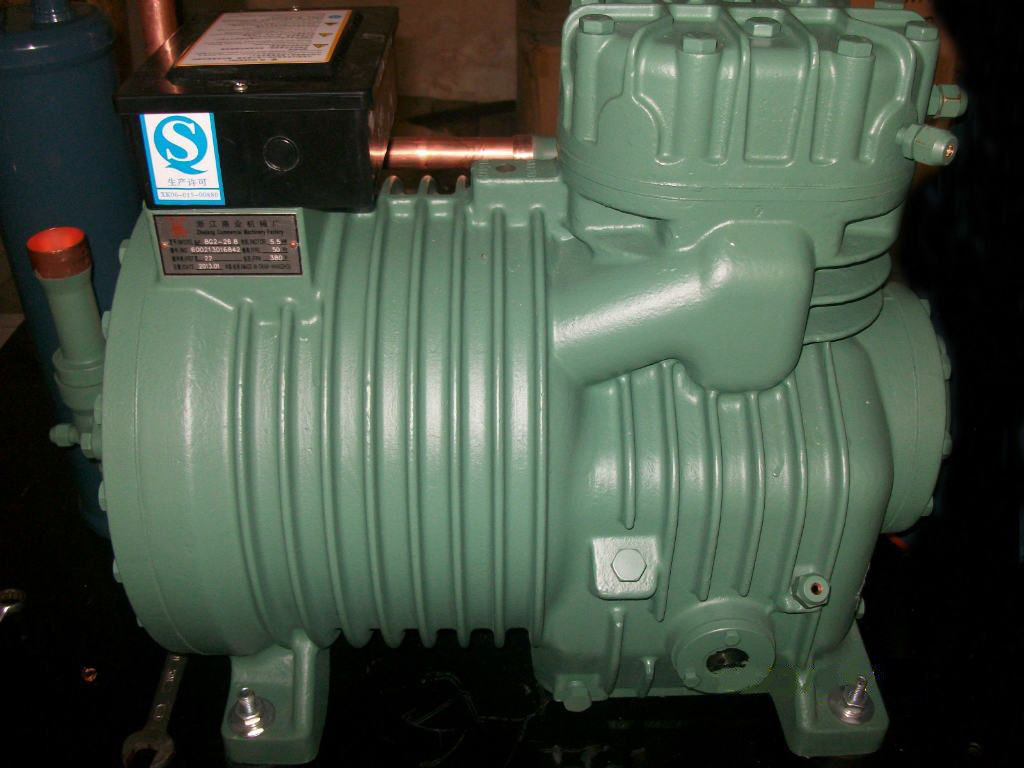

10HP BF10G2-36.0 Made in China cold room compressor semi hermetic refrigeration compressor piston compressor
Technical Parameters
| Compressor model |
Nominal Power of Motor HP/KW |
Displacement (50HZ)m/h |
Number of Cylinder X Diameter X stroke mm |
Oil injection volume L |
Power supply V /Φ /HZ |
Electrical parameter |
Crankcase Heater (220V)W |
Oil supply method |
Weight Kg |
||
| pressure | High pressure |
Max operating current A |
Starting current /rotor locked current A |
||||||||
| BF10G2-36.0 | 10/7.5 | 36 | 2× Φ64 ×64 |
3.5 | 380~ 420 /3/50 440~ 480 /3/60 |
18.6 | 52/82 | 120 | Splash lubrication |
156 | |
THE LIST OF REFRIGERATING CAPACITY
| Model | Condensing Temperature |
Refrigerating capacity Q0(KW) | ||||||||||||||
| Evaporating temperature ℃ | ||||||||||||||||
| 12.5 | 10 | 7.5 | 5 | 0 | -5 | -10 | -15 | -20 | -25 | -30 | -35 | -40 | -45 | -50 | ||
| BF10G2-36.0 | 30 | 49.5 | 45.4 | 41.0 | 38.3 | 32.5 | 25.9 | 20.6 | 16.7 | 13.0 | ||||||
| 40 | 44.3 | 40.7 | 36.7 | 34.2 | 28.9 | 23.2 | 18.5 | 14.6 | 11.4 | |||||||
Indicate that the compressor must be attached with cooling or limited suction temperature.
Indicate that the compressor must be attached with cooling temperature and the maximum suction superheat degree should be less than 20 DEG C.
Indicate that the compressor must be attached with CIC system.
When the frequency is 60Hz, the refrigerating capacity is increased by 20%.
Explanation of Dimension marking in the drawing
| Model | A | B | D1 | D2 | H | L | M | P | S | W |
| BF10G2-36.0 | 280 | 380 | 25.4 | 31.7 | 448 | 585 | 160 | 297 | 390 |
330 |
Shanghai KUB Refrigeration Equipment Co., Ltd is an advanced enterprise specializing in design,
manufacture and trade of refrigeration equipment.
Founded in 2000 We have adopted internationally advanced technology to meet all the different needs of our
diverse customers.
FAQ
Q1: Are you a manufacturer or trading company?
A1:This compressor we are agent , But we are factories that produce condensing units, chillers,Evaporator.
Q2: What about the shipping methods?
A2: By express/By air/By sea.
Q3: What about the payment methods &payment terms
A3: We accept T/T ,Paypal, Western Union, Cash and etc.After 30% deposit,and 70%balance before the shipment.
Q4: What's your delivery time?Where is the loading port?
A4: Usually within 35-60 days after receiving the payment. Loading port:Shanghai,other place in china according your requirement.
Q5:Can I have a sample first ?
A5:You have to pay sample cost.
Q6: How do you ship the goods and how long does it take arrive?
A6: We usually ship goods by LCL or FCL by sea, by air or express delivery. Usually it takes 30 days by sea, 5-7 days by air or express delivery.
The delivery time is according to the way of shipping.
Packaging & Shipping
Our Services
A. Individuation & Customization
Refrigeration industry, cold storage engineering;
Agriculture,food, restaurant, chemical industry; we can undertake designs according to customer's requirements.
B. Excellent warranty
KUB provides up to one year warranty period.
If there is any product quality problems, we will return processing, and is responsible in the end.
We provide excellent service to solve your worries.
