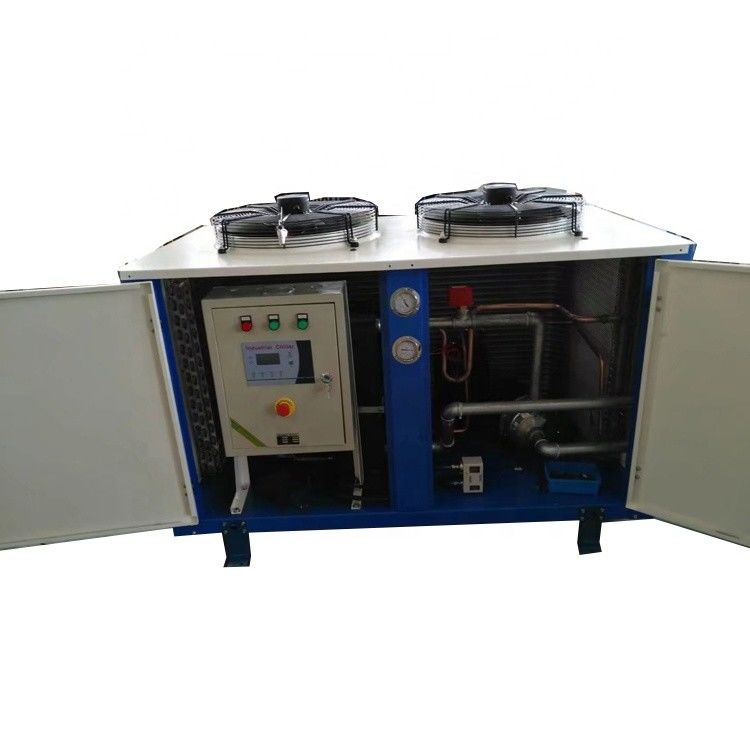

8HP Industrial Refrigeration Equipment R22 2.2kw Industrial Water Chiller

Place of Origin Shanghai, China
Brand Name KUB
Certification CE
Model Number 8HP
Minimum Order Quantity 1
Price consult
Packaging Details The wooden packaging
Delivery Time 20
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Set/Sets per Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Weight (KG) 250 Color White
Voltage 380V 50HZ Core Components Compressor
Warranty 1 Year After Warranty Service Online Support
High Light

8HP Industrial Refrigeration Equipment

,

2.2kw Industrial Water Chiller

,

R22 Industrial Water Chiller

Leave a Message
Product Description

8HP Industrial Refrigeration Equipment 8hp compressor Industrial Water Chiller

Chiller configuration table

parts 8HP
model quantity
Compressor (8HP) YH230 1
Channel steel frame   1
Air condenser 100Square u 1
Freon   1
Reservoir 8HP 1
Filter (kubao) 165S 1
Solenoid valve SV78-5 1
Pressure controller (kubao) P830E 1
High voltage meter (domestic) Oil gauge 1
Low voltage meter (domestic) Oil gauge 1
Surface plate (two holes)   1
Control box For chiller, including 1 water pump control 1
Water flow switch   1
Expansion valve TGEX7.5 2
Plate heat exchanger ZL50-40 1
Water pump Single stage centrifugal water pump ms250, 2.2kw
Multistage centrifugal water pump chlf8-20, 0.75KW, 8m3, 18m, inlet 40, outlet 32
1
The Conduit DN40 1



Specifications and technical parameters of kub-21af air-cooled chiller (8 pieces)
Serial number name Specification type performance parameter
1   model KUB-21AF
2 Refrigerating capacity 1Unit 1 kW 21(evaporation temperature 0 ℃, condensation temperature 40 ℃)
3 Cold media water
4 cryogen R22
5 Power Supply V 3N-380-50HZ
6 Overall power KW 5.5
7 Matching cable   Power line 4 square meters
8 Whole machine current A 14A
9 compressor type vortex
10 Cooling fan type External rotor axial flow fan
11 condenser type Aluminum fin sleeve copper tube type
12 Condensing motor power KW 2*0.45
13 evaporator type Plate heat exchanger
15 Water tank volume   nothing
16 Make up port (DN)   nothing
17 Chilled water inlet and outlet pipe (DN) 40 1.5inch
18 Temperature digital display microcomputer controller Display status Full Chinese (English) display, real-time dynamic display
19 Pump power KW 0.75
20 Pump head rice 18
21 Chilled water flow Cubic meter / hour 8
22 Alarm device Abnormal temperature Alarm and shut down the compressor
23 Protector Reverse phase of power supply The power phase detection prevents the compressor from reversing
24 Protector safeguard High and low pressure protection antifreeze protection Overtemperature protection exhaust too high
25 Protector overload protection Thermal relay protection motor
26 Protector Compressor overheating The internal protector protects the compressor
27 Protector short circuit air switch
28 Overall dimension Length * width * height (mm) 1600*900*850
29 Machine weight KG 350
