R22 5HP Cold Storage Piston Compressor For Freezer Condensing Units

Place of Origin Shanghai, China
Brand Name Maneurop
Model Number MT64
Minimum Order Quantity 1
Price 615USD
Packaging Details Pallet packaging
Delivery Time 3-8days
Payment Terms L/C, T/T
Supply Ability 500 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Cryogen R22 Evaporation Dew Point Temperature -10.0°C
Evaporation Pressure 3.542bar Effective Superheat 8.0K
Additional Superheat 0.0K Return Air Temperature -2.0°C
Condensation Dew Point Temperature 30.0°C Condensation Pressure 11.92bar
Total Undercooling 2.0K Liquid Temperature (no Slip) 28.0 °C
Voltage 380V Condition New
High Light

Cold Storage Piston Compressor

,

R22 Cold Storage Compressor

,

5HP Cold Storage Compressor

Leave a Message
Product Description

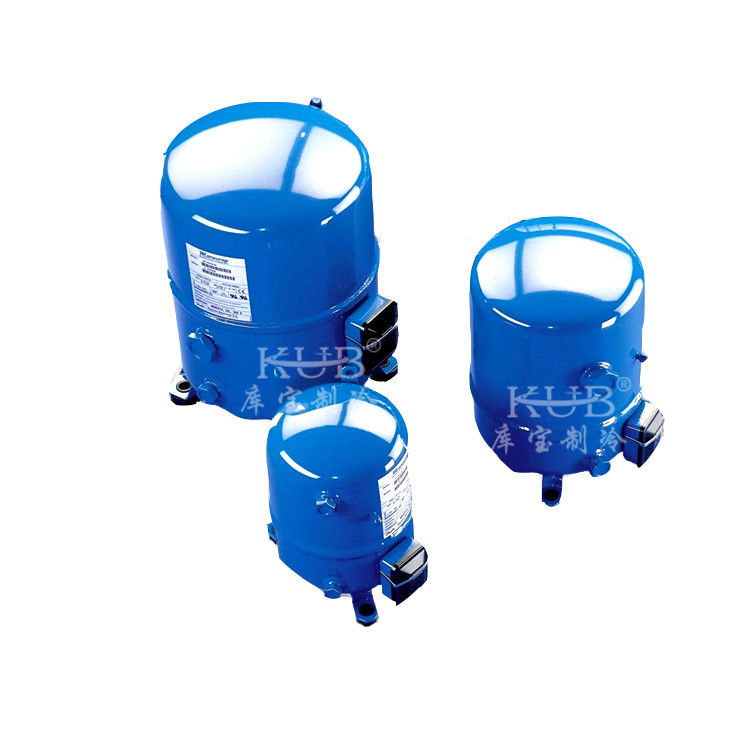

R22 5HP Cold Storage Piston Compressor For Freezer Condensing Units 0



Cooling capacity [kW]
Tc/Te -25 -20 -15 -10 -5 0 5 10 15
30 4.151 5.704 7.573 9.791 12.39 15.41 18.87 22.82 27.28
35 3.736 5.224 7.009 9.125 11.6 14.48 17.79 21.56 25.82
40 3.324 4.741 6.435 8.442 10.79 13.52 16.67 20.25 24.32
45 2.923 4.261 5.86 7.751 9.97 12.55 15.52 18.91 22.77
50   3.793 5.289 7.059 9.138 11.56 14.35 17.55 21.19
55     4.731 6.374 8.306 10.56 13.17 16.17 19.59
60       5.701 7.481 9.564 11.98 14.78 17.97
65         6.671 8.577 10.8 13.38 16.34



Power consumption [kW]
Tc/Te -25 -20 -15 -10 -5 0 5 10 15
30 2.297 2.598 2.861 3.087 3.277 3.432 3.553 3.642 3.699
35 2.356 2.704 3.012 3.282 3.516 3.713 3.875 4.004 4.1
40 2.391 2.791 3.15 3.469 3.751 3.995 4.204 4.377 4.517
45 2.397 2.852 3.267 3.641 3.976 4.272 4.532 4.755 4.944
50   2.882 3.357 3.79 4.183 4.537 4.852 5.131 5.374
55     3.412 3.91 4.366 4.782 5.158 5.497 5.799
60       3.993 4.517 5 5.443 5.846 6.212
65         4.63 5.185 5.699 6.172 6.606



Heating capacity [kW]
Tc/Te -25 -20 -15 -10 -5 0 5 10 15
30 6.237 8.161 10.35 12.83 15.63 18.79 22.34 26.35 30.88
35 5.832 7.749 9.912 12.35 15.08 18.15 21.6 25.49 29.88
40 5.408 7.311 9.442 11.83 14.49 17.47 20.82 24.58 28.82
45 4.971 6.856 8.948 11.27 13.87 16.76 19.99 23.62 27.71
50   6.39 8.436 10.7 13.21 16.01 19.13 22.63 26.57
55     7.913 10.11 12.53 15.22 18.23 21.59 25.38
60       9.498 11.83 14.41 17.29 20.51 24.14
65         11.11 13.57 16.32 19.4 22.87



Current [A]
Tc/Te -25 -20 -15 -10 -5 0 5 10 15
30 5.525 5.839 6.139 6.417 6.668 6.886 7.065 7.2 7.283
35 5.596 5.955 6.297 6.616 6.907 7.163 7.379 7.548 7.666
40 5.636 6.053 6.453 6.828 7.173 7.482 7.75 7.969 8.135
45 5.625 6.116 6.587 7.032 7.447 7.824 8.157 8.442 8.671
50   6.121 6.679 7.21 7.708 8.167 8.582 8.946 9.254
55     6.709 7.34 7.937 8.493 9.004 9.462 9.863
60       7.403 8.113 8.782 9.403 9.97 10.48
65         8.217 9.012 9.758 10.45 11.08



COP [W/W]
Tc/Te -25 -20 -15 -10 -5 0 5 10 15
30 1.81 2.19 2.65 3.17 3.78 4.49 5.31 6.27 7.38
35 1.59 1.93 2.33 2.78 3.3 3.9 4.59 5.38 6.3
40 1.39 1.7 2.04 2.43 2.88 3.39 3.97 4.63 5.38
45 1.22 1.49 1.79 2.13 2.51 2.94 3.42 3.98 4.61
50   1.32 1.58 1.86 2.19 2.55 2.96 3.42 3.94
55     1.39 1.63 1.9 2.21 2.55 2.94 3.38
60       1.43 1.66 1.91 2.2 2.53 2.89
65         1.44 1.65 1.9 2.17 2.47



Mass flow [kg/h]
Tc/Te -25 -20 -15 -10 -5 0 5 10 15
30 90.4 122.5 160.5 204.9 256.2 314.8 381.3 456.1 539.8
35 84.66 116.7 154.4 198.4 249.1 307.1 372.8 446.8 529.6
40 78.57 110.4 147.7 191.1 241.1 298.3 363.1 436.2 518.1
45 72.25 103.7 140.5 183.2 232.3 288.6 352.4 424.4 505.1
50   96.79 132.8 174.7 222.8 277.9 340.6 411.3 490.8
55     125 165.7 212.6 266.5 327.7 397.1 475.2
60       156.4 201.9 254.2 314 381.7 458.2
65         190.8 241.4 299.3 365.3 440

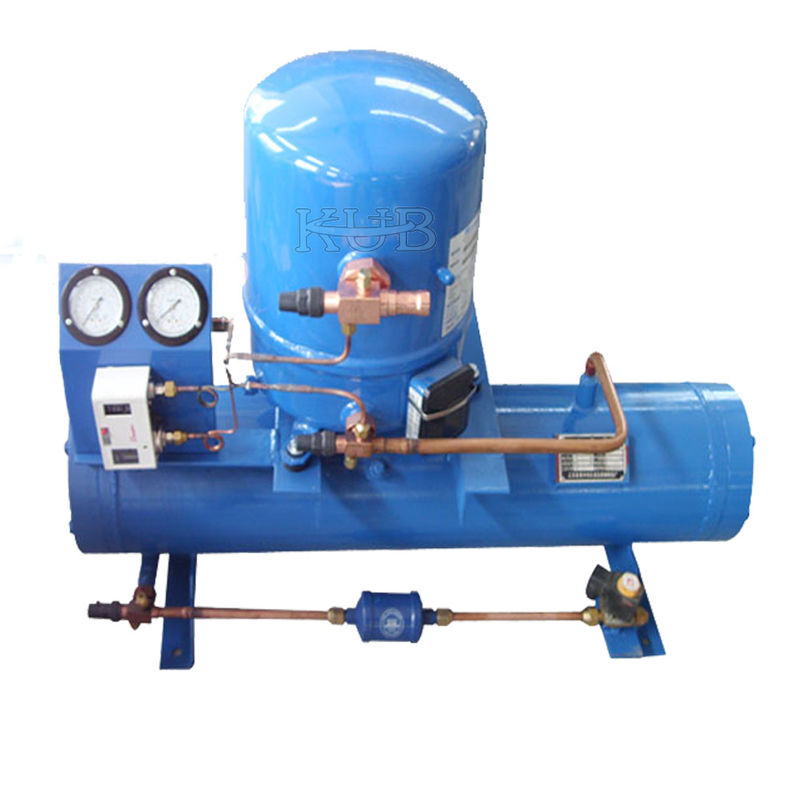

R22 5HP Cold Storage Piston Compressor For Freezer Condensing Units 1

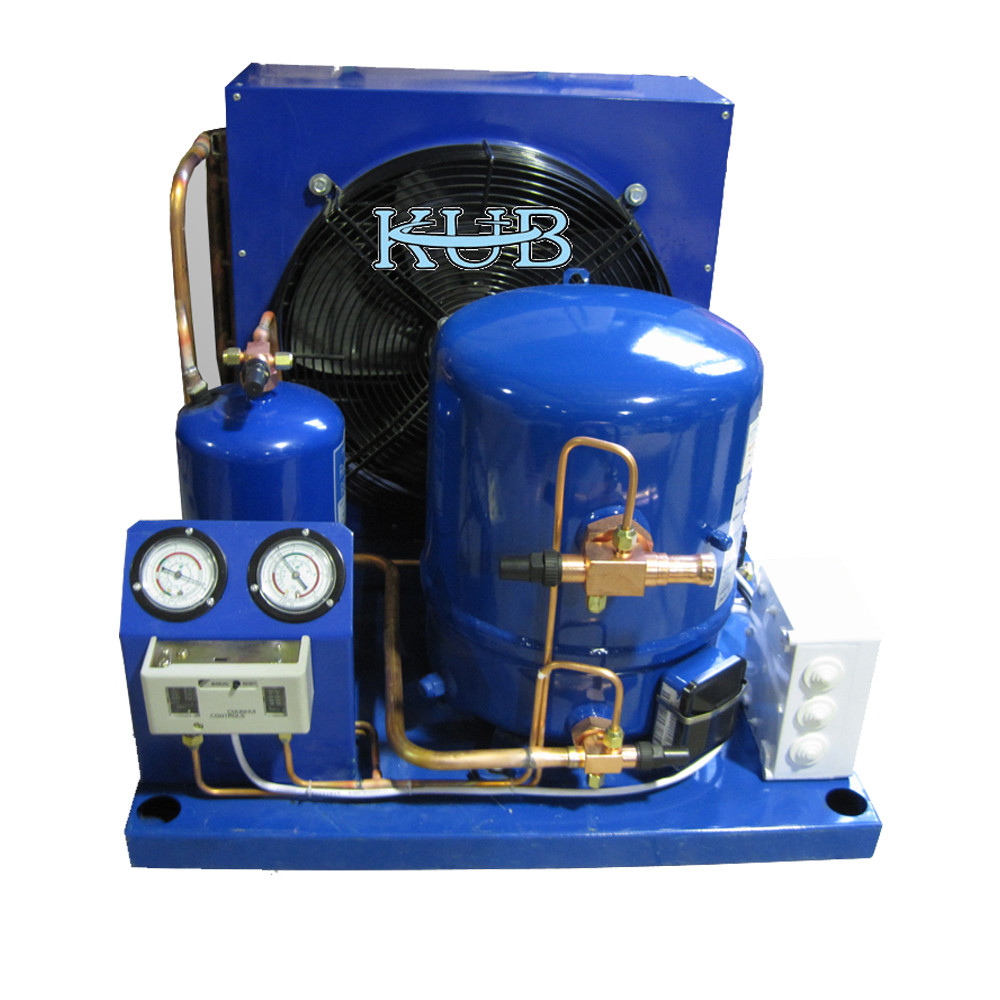

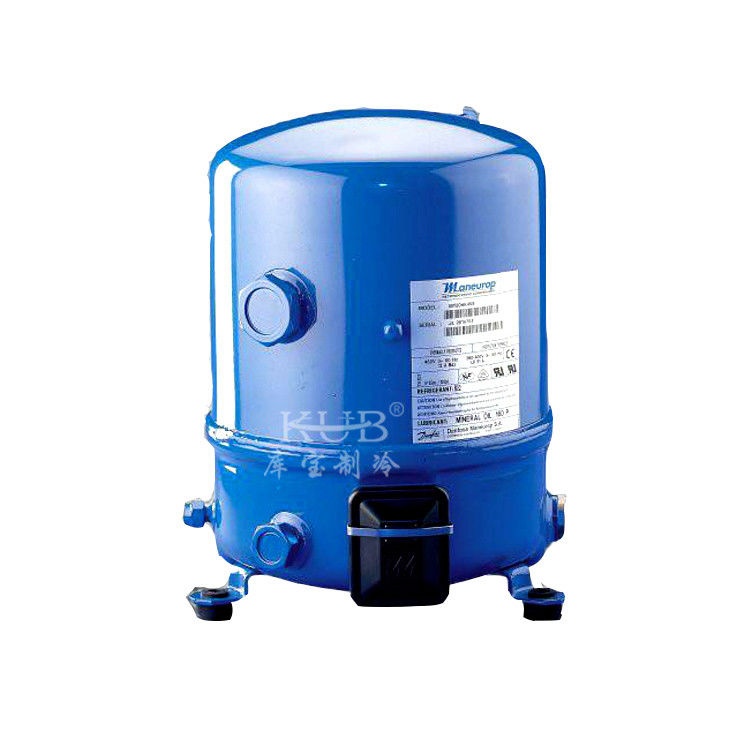

R22 5HP Cold Storage Piston Compressor For Freezer Condensing Units 2R22 5HP Cold Storage Piston Compressor For Freezer Condensing Units 3R22 5HP Cold Storage Piston Compressor For Freezer Condensing Units 4R22 5HP Cold Storage Piston Compressor For Freezer Condensing Units 5R22 5HP Cold Storage Piston Compressor For Freezer Condensing Units 6R22 5HP Cold Storage Piston Compressor For Freezer Condensing Units 7R22 5HP Cold Storage Piston Compressor For Freezer Condensing Units 8R22 5HP Cold Storage Piston Compressor For Freezer Condensing Units 9
